1586037 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

10P VERT HDR VAL-U-LOK V2

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Shrouding	Mounting Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Material	Connector Type	Current Rating (Amps)	Voltage Rating	Insulation Color	Number of Positions	Contact Type	Style	Contact Shape	Contact Length - Post	Contact Length - Post	Applications	Number of Positions Loaded	Insulation Height	Insulation Height
TE Connectivity Raychem Cable Protection 1-1586037-0	4.2 mm	0.165 in	Tin	Shrouded - 4 Wall	Through Hole	Brass Alloy	2.03 µm	80 µin	Locking Ramp	-40 °C	105 ░C	2	Solder	2.03 µm	80 µin	UL94 V-2	4.2 mm	0.165 in	Nylon Polyamide (PA)	Header	9 A	600 VAC	Natural	10	Male Pin	Board to Cable/Wire	Square	3.5 mm	0.138 in	General Purpose Industrial Lighting	All	12.8 mm	0.504 in
TE Connectivity Raychem Cable Protection 2-1586037-4	4.2 mm	0.165 in	Tin	Shrouded - 4 Wall	Through Hole	Brass Alloy	2.03 µm	80 µin	Locking Ramp	-40 °C	105 ░C	2	Solder	2.03 µm	80 µin	UL94 V-2	4.2 mm	0.165 in	Nylon Polyamide (PA)	Header	9 A	600 VAC	Natural	24	Male Pin	Board to Cable/Wire	Square	3.5 mm	0.138 in	General Purpose Industrial Lighting	All	12.8 mm	0.504 in
TE Connectivity Raychem Cable Protection 1-1586037-4	4.2 mm	0.165 in	Tin	Shrouded - 4 Wall	Through Hole	Brass Alloy	2.03 µm	80 µin	Locking Ramp	-40 °C	105 ░C	2	Solder	2.03 µm	80 µin	UL94 V-2	4.2 mm	0.165 in	Nylon Polyamide (PA)	Header	9 A	600 VAC	Natural	14	Male Pin	Board to Cable/Wire	Square	3.5 mm	0.138 in	General Purpose Industrial Lighting	All	12.8 mm	0.504 in

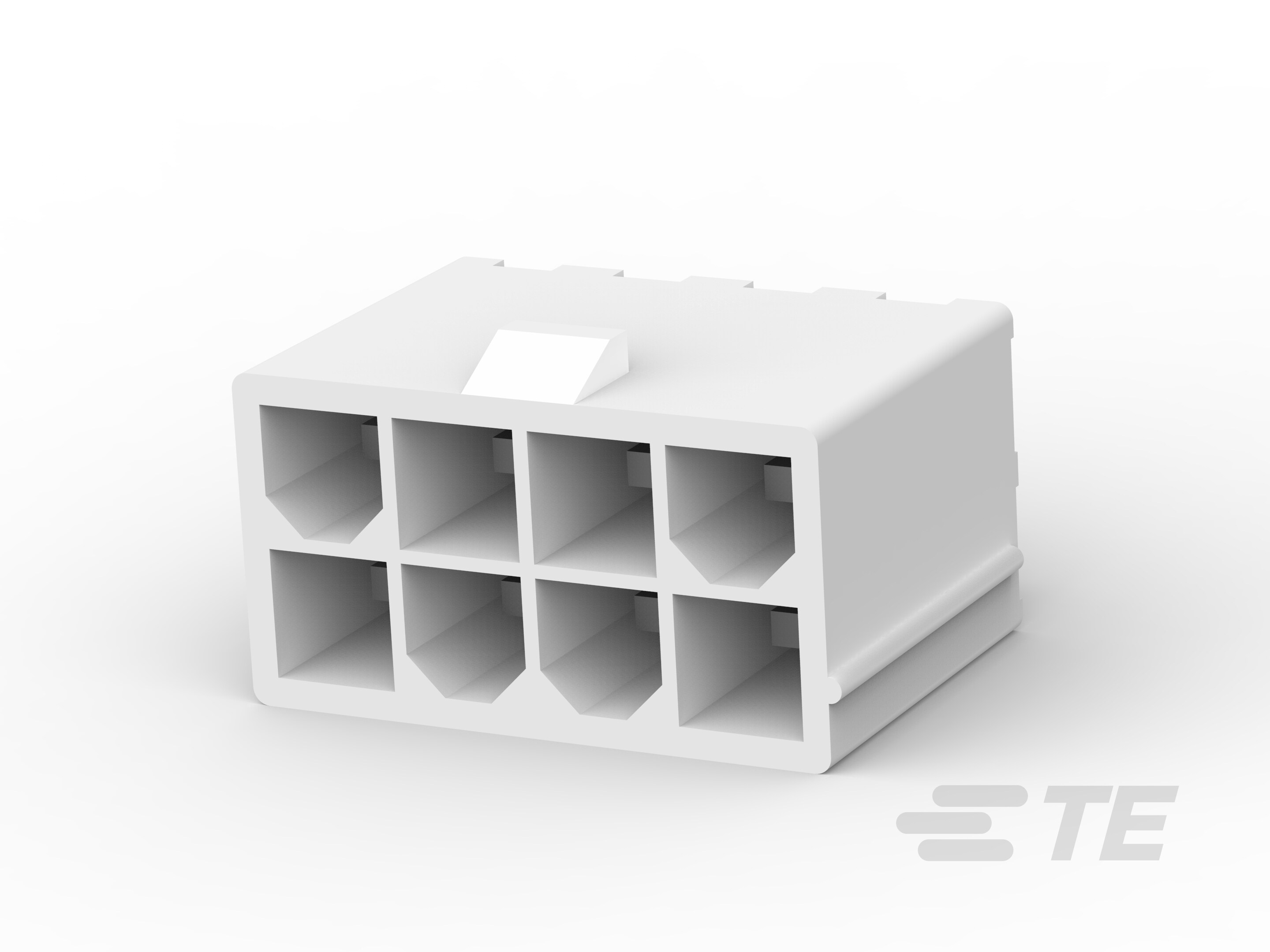

TE Connectivity Raychem Cable Protection 1586037-8	4.2 mm	0.165 in	Tin	Shrouded - 4 Wall	Through Hole	Brass Alloy	2.03 µm	80 µin	Locking Ramp	-40 °C	105 ░C	2	Solder	2.03 µm	80 µin	UL94 V-2	4.2 mm	0.165 in	Nylon Polyamide (PA)	Header	9 A	600 VAC	Natural	8	Male Pin	Board to Cable/Wire	Square	3.5 mm	0.138 in	General Purpose Industrial Lighting	All	12.8 mm	0.504 in

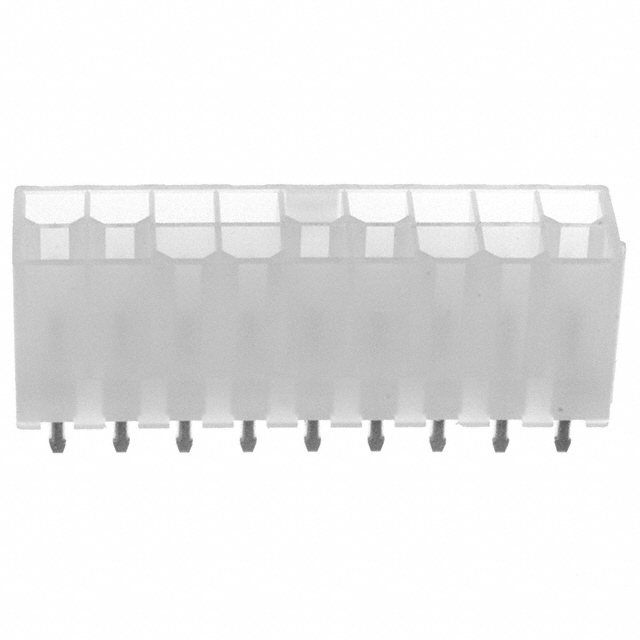

TE Connectivity Raychem Cable Protection 1-1586037-8	4.2 mm	0.165 in	Tin	Shrouded - 4 Wall	Through Hole	Brass Alloy	2.03 µm	80 µin	Locking Ramp	-40 °C	105 ░C	2	Solder	2.03 µm	80 µin	UL94 V-2	4.2 mm	0.165 in	Nylon Polyamide (PA)	Header	9 A	600 VAC	Natural	18	Male Pin	Board to Cable/Wire	Square	3.5 mm	0.138 in	General Purpose Industrial Lighting	All	12.8 mm	0.504 in
