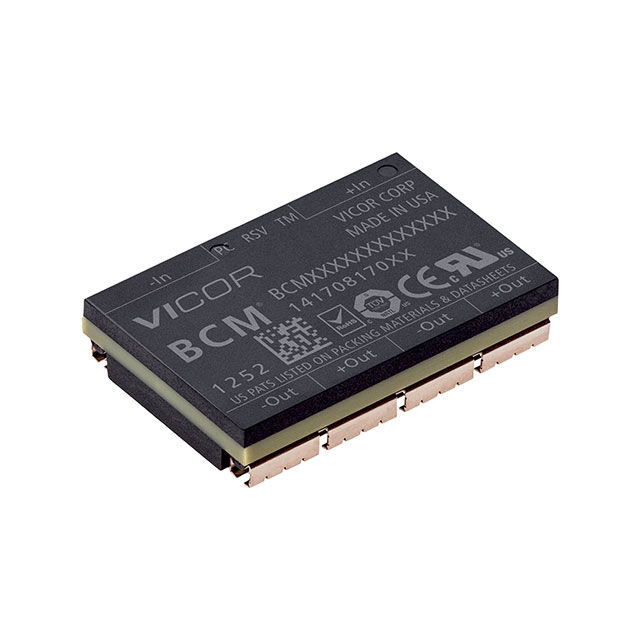

BCM48 Series

Catalog

DC DC CONVERTER 24V 300W

Part	Voltage - Output 1	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Number of Outputs	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Efficiency	Voltage - Isolation	Package / Case	Approval Agency	Voltage - Output 1 [custom]	Voltage - Output 1 [custom]
Vicor Corporation BCM48BT240T300A00	24 V	300 W	55 V	38 V	12 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	1	ITE (Commercial)	125 °C	-40 C	Bus Converter Module	OCP OTP SCP UVLO	94 %	2250 VDC	Module
Vicor Corporation BCM48BT160T240A00	16 V	240 Watts	55 V	38 V	15 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	1	ITE (Commercial)	125 °C	-40 C	Bus Converter Module	OCP OTP SCP UVLO	94 %	2250 VDC	Module
Vicor Corporation BCM48BF120M300A00	12 V	300 W	55 V	38 V	25 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	1	ITE (Commercial)	125 °C	-55 C	Bus Converter Module	Remote On/Off UVLO	96 %	2250 VDC	Module
Vicor Corporation BCM48BF480T300A00	48 V	300 W	55 V	38 V	6.25 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	1	ITE (Commercial)	125 °C	-40 C	Bus Converter Module	OCP OTP SCP UVLO	96 %	2250 VDC	Module	CE cURus TUV
Vicor Corporation BCM48BT096T240A00		240 Watts	55 V	38 V	30 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	1	ITE (Commercial)	125 °C	-40 C	Bus Converter Module	OCP OTP SCP UVLO	95 %	2250 VDC	Module		9.6 V
Vicor Corporation BCM48BT240M300A00	24 V	300 W	55 V	38 V	12 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	1	ITE (Commercial)	125 °C	-55 C	Bus Converter Module	OCP OTP SCP UVLO	94 %	2250 VDC	Module
Vicor Corporation BCM48BT480M300A00	48 V	300 W	55 V	38 V	6.25 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Through Hole	1	ITE (Commercial)	125 °C	-55 C	Bus Converter Module	OCP OTP SCP UVLO	96 %	2250 VDC	Module	CE cURus TUV
Vicor Corporation BCM48BF120T300A00	12 V	300 W	55 V	38 V	30 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	1	ITE (Commercial)	125 °C	-40 C	Bus Converter Module	Remote On/Off UVLO	96 %	2250 VDC	Module
Vicor Corporation BCM48BF060T240A00		240 Watts	55 V	38 V	60 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	1	ITE (Commercial)	125 °C	-40 C	Bus Converter Module	OCP OTP OVP Remote On/Off SCP UVLO	95.6 %	2250 VDC	30-SMD Module			6 V
Vicor Corporation BCM48BF240T300A00	24 V	300 W	55 V	38 V	12 A	0.87 in	6.7 mm	22 mm	32.5 mm	1.28 in	0.26 in	Surface Mount	1	ITE (Commercial)	125 °C	-40 C	Bus Converter Module	OCP OTP SCP UVLO	94 %	2250 VDC	Module
