P170S Series

Catalog

POT 10K OHM 1/10W PLASTIC LINEAR

Part	Size - Body [diameter]	Size - Body [diameter]	Actuator Type	Actuator Length [x]	Actuator Length [x]	Taper	Number of Turns	Rotation	Adjustment Type	Tolerance	Resistance (Ohms)	Built in Switch	Bushing Thread	Power (Watts)	Power (Watts)	Mounting Type	Termination Style	Number of Gangs	Resistive Material	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)
TT Electronics/BI P170SP1-FC15BR10K	17 mm	0.669 "	Flatted	15 mm	0.591 in	Linear	1	260 °	Top Adjustment	20 %	10k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in
TT Electronics/BI P170SPD-QC15BR10K	17 mm	0.669 "	Knurled and Slotted	15 mm	0.591 in	Linear	1	260 °	Rear Adjustment	20 %	10k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in
TT Electronics/BI P170SP1-FC15BR5K	17 mm	0.669 "	Flatted	15 mm	0.591 in	Linear	1	260 °	Top Adjustment	20 %		Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in	5 kOhms
TT Electronics/BI P170SP1-QC15BR10K	17 mm	0.669 "	Knurled and Slotted	15 mm	0.591 in	Linear	1	260 °	Top Adjustment	20 %	10k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in

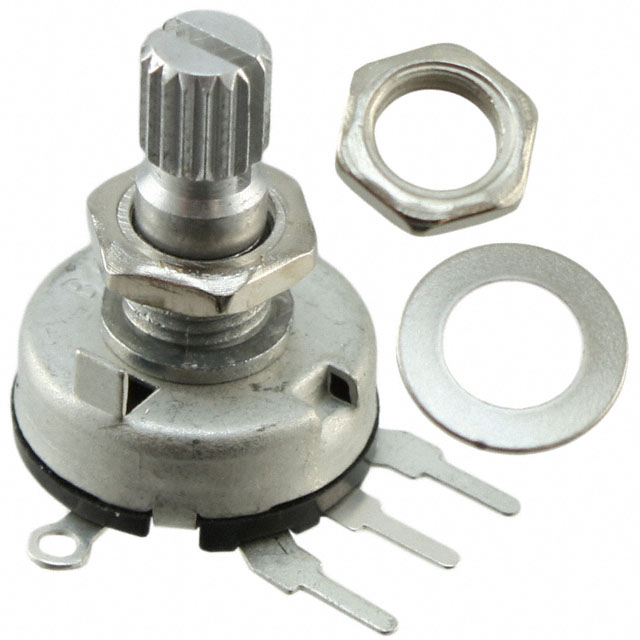

TT Electronics/BI P170S2-QC15BR1K	17 mm	0.669 "	Knurled and Slotted	15 mm	0.591 in	Linear	1	260 °	Side Adjustment	20 %	1k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in
TT Electronics/BI P170S-EA10BR500K	17 mm	0.669 "	Slotted	10 mm	0.394 in	Linear	1	260 °	User Defined	20 %		Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	Solder Lug	1	Conductive Plastic	6 mm	0.236 in	500 kOhms
TT Electronics/BI P170S2-EC20BR100K	17 mm	0.669 "	Slotted	20 mm	0.787 in	Linear	1	260 °	Side Adjustment	20 %	100k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in
TT Electronics/BI P170S-EC15BR100K	17 mm	0.669 "	Slotted	15 mm	0.591 in	Linear	1	260 °	User Defined	20 %	100k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	Solder Lug	1	Conductive Plastic	6 mm	0.236 in
TT Electronics/BI P170SP1-EA15BR100K	17 mm	0.669 "	Slotted	15 mm	0.591 in	Linear	1	260 °	Top Adjustment	20 %	100k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in
TT Electronics/BI P170S2-FC20BR100K	17 mm	0.669 "	Flatted	20 mm	0.787 in	Linear	1	260 °	Side Adjustment	20 %	100k	Rotary SPST	M7 x 0.75	0.1 W	0.1 W	Panel Mount	PC Pins	1	Conductive Plastic	6 mm	0.236 in
