046014 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 4POS 4.2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Applications	Contact Material	Contact Finish - Post	Mounting Type	Material Flammability Rating	Insulation Color	Connector Type	Contact Shape	Style	Termination	Insulation Height	Insulation Height	Number of Rows	Fastening Type	Insulation Material	Contact Length - Post	Contact Length - Post	Shrouding	Number of Positions Loaded
Molex 0460140406	2.54 µm	100 µin	All	4.2 mm	0.165 in	4	Gold	30 Áin	0.76 Ám	Male Pin	Automotive General Purpose Industrial Medical Telecommunications	Copper Alloy	Tin	Through Hole	UL94 V-0	Natural	Header	Square	Board to Cable/Wire	Solder	12.8 mm	0.504 in	1	Locking Ramp	Polyamide (PA66) Nylon 6/6	3.5 mm	0.138 in	Shrouded - 4 Wall
Molex 0460140307	2.54 µm	100 µin	All	4.2 mm	0.165 in		Gold	30 Áin	0.76 Ám	Male Pin	Automotive General Purpose Industrial Medical Telecommunications	Copper Alloy	Tin	Through Hole	UL94 V-2	Natural	Header	Square	Board to Cable/Wire	Solder	12.44 mm	0.49 in	1	Locking Ramp	Polyamide (PA66) Nylon 6/6	3.5 mm	0.138 in	Shrouded - 4 Wall

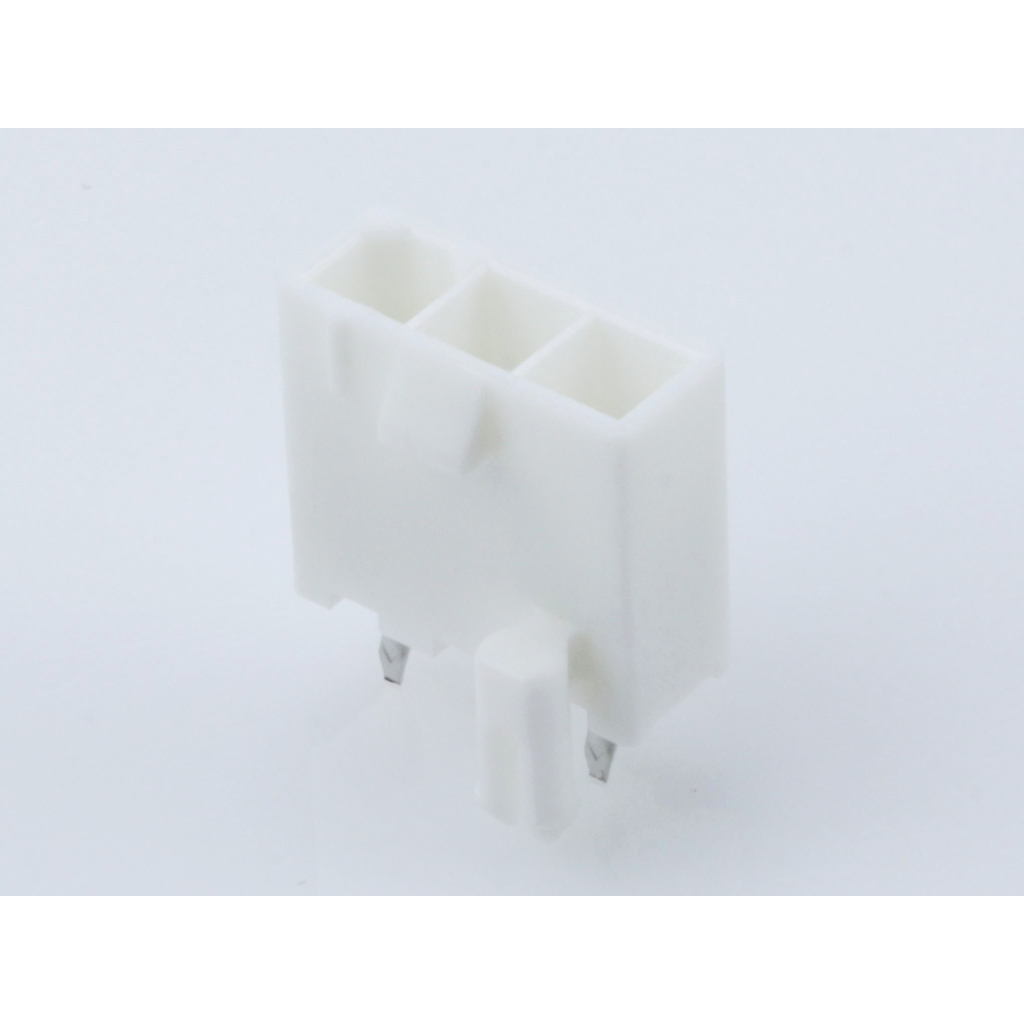

Molex 0460140304	2.54 µm	100 µin	All	4.2 mm	0.165 in			100 çin	2.54 çm	Male Pin	Automotive General Purpose Industrial Medical Telecommunications	Copper Alloy	Tin	Through Hole	UL94 V-0	Natural	Header	Square	Board to Cable/Wire	Solder	12.44 mm	0.49 in	1	Locking Ramp	Polyamide (PA66) Nylon 6/6	3.5 mm	0.138 in	Shrouded - 4 Wall

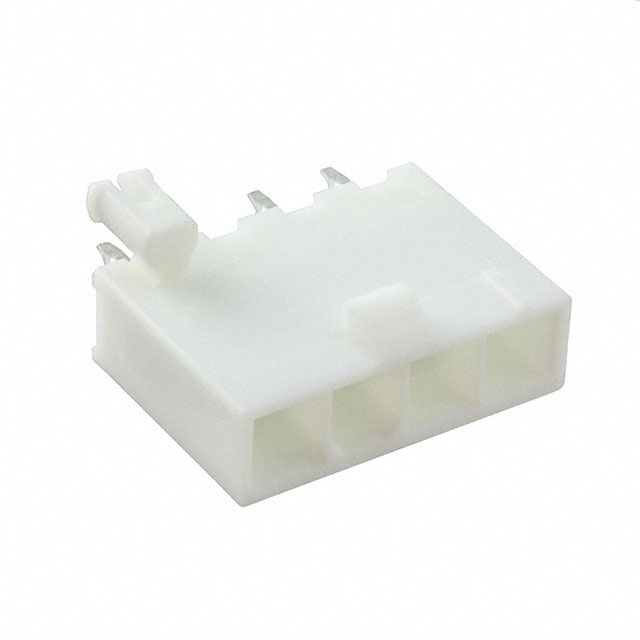

Molex 0460140404	2.54 µm	100 µin	All	4.2 mm	0.165 in	4		100 çin	2.54 çm	Male Pin	Automotive General Purpose Industrial Medical Telecommunications	Copper Alloy	Tin	Through Hole	UL94 V-0	Natural	Header	Square	Board to Cable/Wire	Solder	12.8 mm	0.504 in	1	Locking Ramp	Polyamide (PA66) Nylon 6/6	3.5 mm	0.138 in	Shrouded - 4 Wall
Molex 0460145001	2.54 µm	100 µin		4.2 mm	0.165 in		Gold	30 Áin	0.76 Ám	Male Pin	Automotive General Purpose Industrial Medical Telecommunications	Copper Alloy	Tin	Through Hole	UL94 V-0	Natural	Header	Square	Board to Cable/Wire	Solder	12.44 mm	0.49 in	1	Locking Ramp	Polyamide (PA66) Nylon 6/6	3.5 mm	0.138 in	Shrouded - 4 Wall	4
Molex 0460140405	2.54 µm	100 µin	All	4.2 mm	0.165 in	4		100 çin	2.54 çm	Male Pin	Automotive General Purpose Industrial Medical Telecommunications	Copper Alloy	Tin	Through Hole	UL94 V-2	Natural	Header	Square	Board to Cable/Wire	Solder	12.8 mm	0.504 in	1	Locking Ramp	Polyamide (PA66) Nylon 6/6	3.5 mm	0.138 in	Shrouded - 4 Wall
