UT-09 Series

Catalog

BUZZER PIEZO 35.81MM PNL MNT

Part	Approval Agency	Size / Dimension [diameter]	Size / Dimension [diameter]	Sound Pressure Level (SPL)	Input Type	Port Location	Voltage Range [Min]	Voltage Range [Max]	Operating Mode	Frequency	Current - Supply [Max]	Current - Supply [Min]	Termination	Termination	Termination	Technology	Ingress Protection	Mounting Type	Driver Circuitry	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Floyd Bell Inc UT-09-628-S	UL UR	1.41 in	35.81 mm	109 dB	DC	Top	6 VDC	28 V	Staccato Tone	2.1 kHz	50 mA	20 mA	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Piezo	IP68 - Dust Tight Waterproof	Panel Mount	Indicator Internally Driven	1.38 in	35.05 mm
Floyd Bell Inc UT-09-628-Q	UL UR	1.41 in	35.81 mm	109 dB	DC	Top	6 VDC	28 V	Staccato Tone	2.1 kHz	50 mA	20 mA	0.25 "	Quick Connect Tab	6.35 mm	Piezo	IP68 - Dust Tight Waterproof	Panel Mount	Indicator Internally Driven	1.38 in	35.05 mm

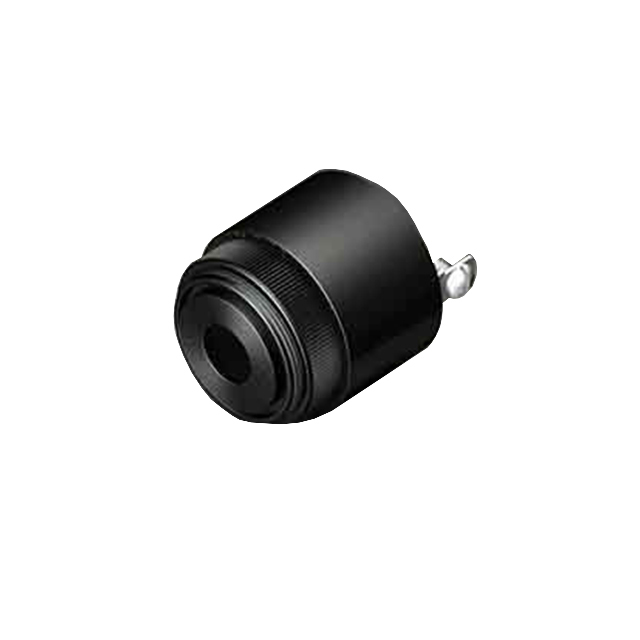

Floyd Bell Inc UT-09-515-S	UL UR	1.41 in	35.81 mm	109 dB	DC	Top	5 VDC	15 V	Staccato Tone	2.1 kHz	70 mA	30 mA	0.25 "	Screw Terminal Quick Connect Tab	6.35 mm	Piezo	IP68 - Dust Tight Waterproof	Panel Mount	Indicator Internally Driven	1.38 in	35.05 mm
Floyd Bell Inc UT-09-515-Q	UL UR	1.41 in	35.81 mm	109 dB	DC	Top	5 VDC	15 V	Staccato Tone	2.1 kHz	70 mA	30 mA	0.25 "	Quick Connect Tab	6.35 mm	Piezo	IP68 - Dust Tight Waterproof	Panel Mount	Indicator Internally Driven	1.38 in	35.05 mm

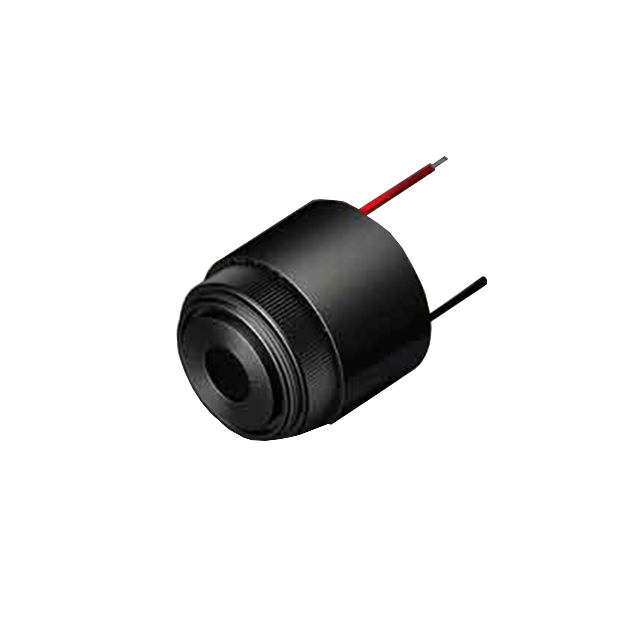

Floyd Bell Inc UT-09-515-W	UL UR	1.41 in	35.81 mm	109 dB	DC	Top	5 VDC	15 V	Staccato Tone	2.1 kHz	70 mA	30 mA		Wire Leads		Piezo	IP68 - Dust Tight Waterproof	Panel Mount	Indicator Internally Driven	1.38 in	35.05 mm
Floyd Bell Inc UT-09-628-W	UL UR	1.41 in	35.81 mm	109 dB	DC	Top	6 VDC	28 V	Staccato Tone	2.1 kHz	50 mA	20 mA		Wire Leads		Piezo	IP68 - Dust Tight Waterproof	Panel Mount	Indicator Internally Driven	1.38 in	35.05 mm
