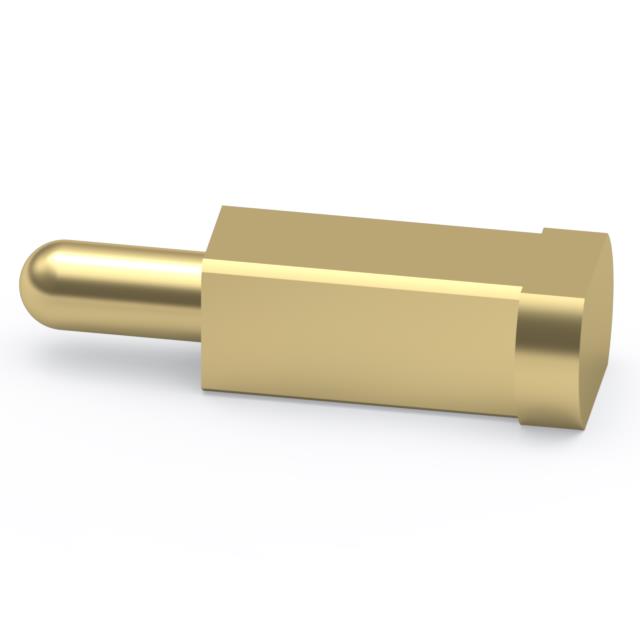

0986-5 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
HORIZONTAL SURFACE MOUNT (HSMT)
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Minimum Working Height [Min] | Minimum Working Height [Min] | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Type | Mounting Type | Current Rating (Amps) | Contact Material | Recommended Working Height | Recommended Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.093 in | 2.36 mm | 20 µin | 0.51 µm | 1000000 | 4.52 mm | 0.178 in | 60 gf | 0.042 in | 1.07 mm | Gold | 6.81 mm | 0.268 in | Sleeve & Plunger (Pogo Pins) | Surface Mount | 5.6 A | Brass Alloy | 5.66 mm | 0.223 " |
