PZC02 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 2POS 2.54MM

Part	Insulation Material	Termination	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Color	Number of Positions Loaded	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Shape	Insulation Height	Insulation Height	Contact Material	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Connector Type	Contact Finish - Mating	Number of Rows	Material Flammability Rating	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PZC02SBBN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.23 in	5.84 mm	Male Pin	Unshrouded	0.25 µm	10 µin	5.84 mm	0.23 "	2	Square	3.56 mm	0.14 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Right Angle Through Hole	Tin	Header	Gold	1	UL94 V-0

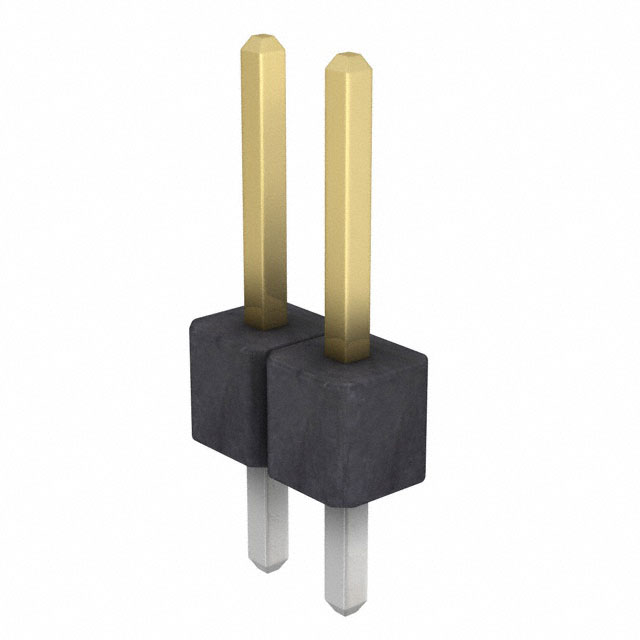

Sullins Connector Solutions PZC02SAAN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.23 in	5.84 mm	Male Pin	Unshrouded	0.25 µm	10 µin	3.05 mm	0.12 in	2	Square	2.54 mm	0.1 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Through Hole	Tin	Header	Gold	1	UL94 V-0	11.43 mm	0.45 in

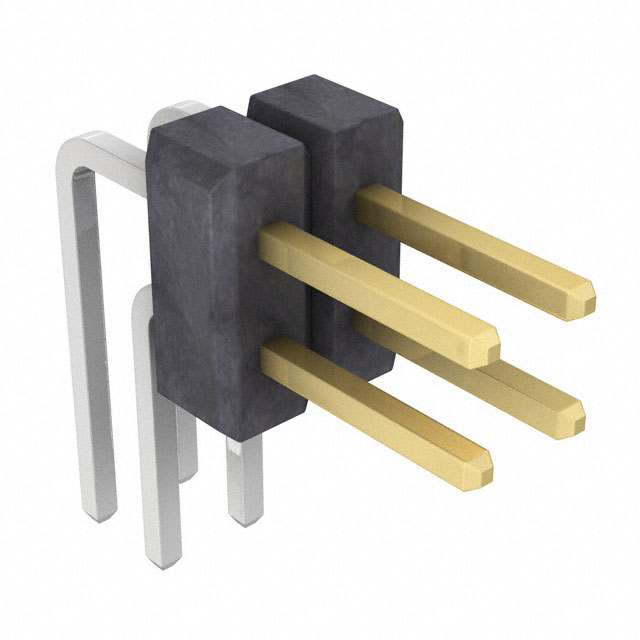

Sullins Connector Solutions PZC02DBBN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.23 in	5.84 mm	Male Pin	Unshrouded	0.25 µm	10 µin	5.84 mm	0.23 "	4	Square			Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Right Angle Through Hole	Tin	Header	Gold		UL94 V-0			6.1 mm	0.24 in	2	0.1 in	2.54 mm
Sullins Connector Solutions PZC02SFBN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.318 in	8.08 mm	Male Pin	Unshrouded	0.25 µm	10 µin	5.58 mm	0.22 in	2	Square	2.54 mm	0.1 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Through Hole	Tin	Header	Gold	1	UL94 V-0								0.638 in	16.21 mm

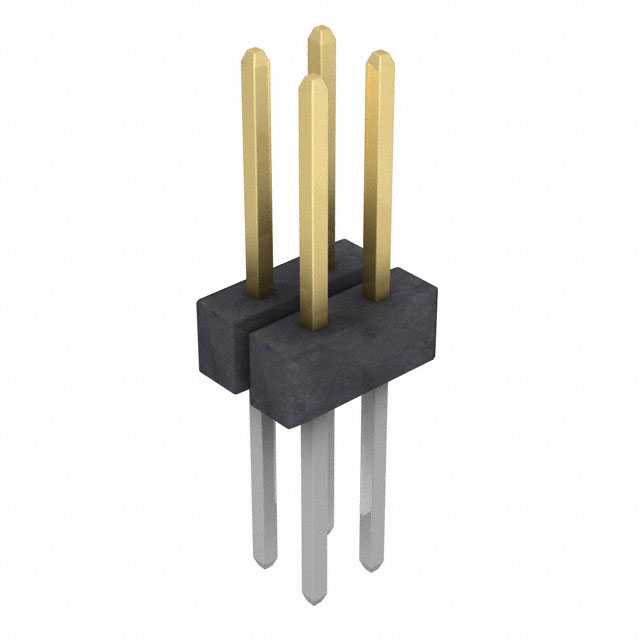

Sullins Connector Solutions PZC02DFCN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.318 in	8.08 mm	Male Pin	Unshrouded	0.25 µm	10 µin	8.13 mm	0.32 in	4	Square	2.54 mm	0.1 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Through Hole	Tin	Header	Gold		UL94 V-0					2	0.1 in	2.54 mm		18.75 mm	0.738 in

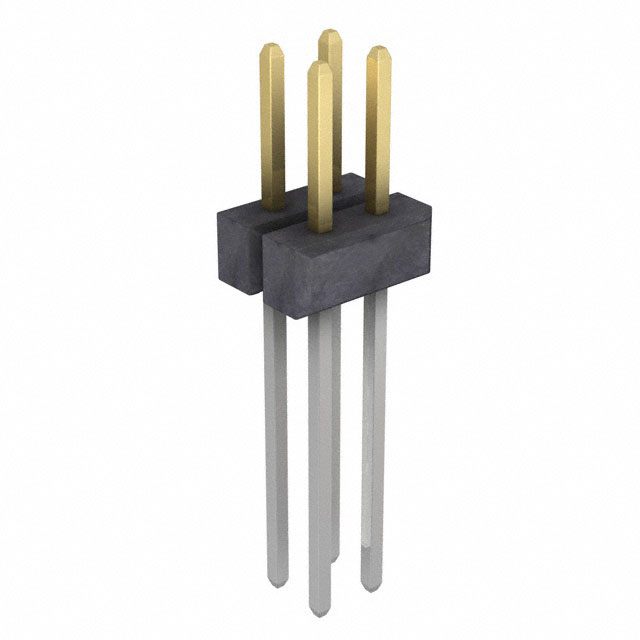

Sullins Connector Solutions PZC02DAEN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.23 in	5.84 mm	Male Pin	Unshrouded	0.25 µm	10 µin	13.21 mm	0.52 in	4	Square	2.54 mm	0.1 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Through Hole	Tin	Header	Gold		UL94 V-0					2	0.1 in	2.54 mm	0.85 in	21.59 mm

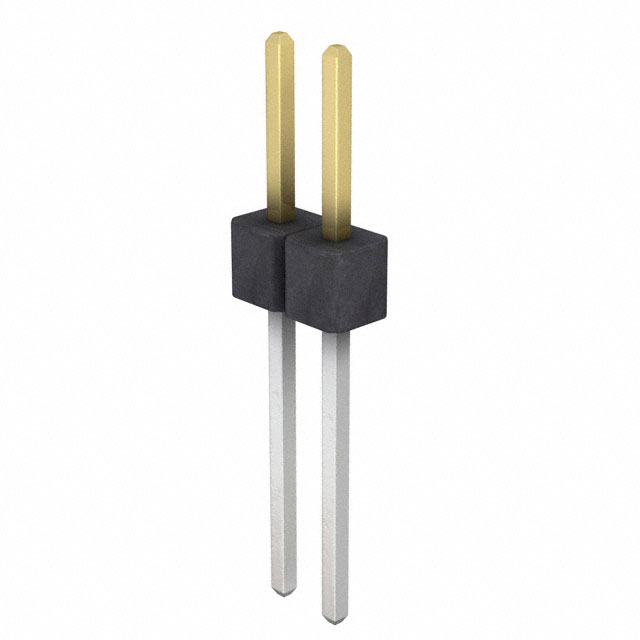

Sullins Connector Solutions PZC02SADN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.23 in	5.84 mm	Male Pin	Unshrouded	0.25 µm	10 µin	10.67 mm	0.42 in	2	Square	2.54 mm	0.1 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Through Hole	Tin	Header	Gold	1	UL94 V-0	19.05 mm	0.75 in

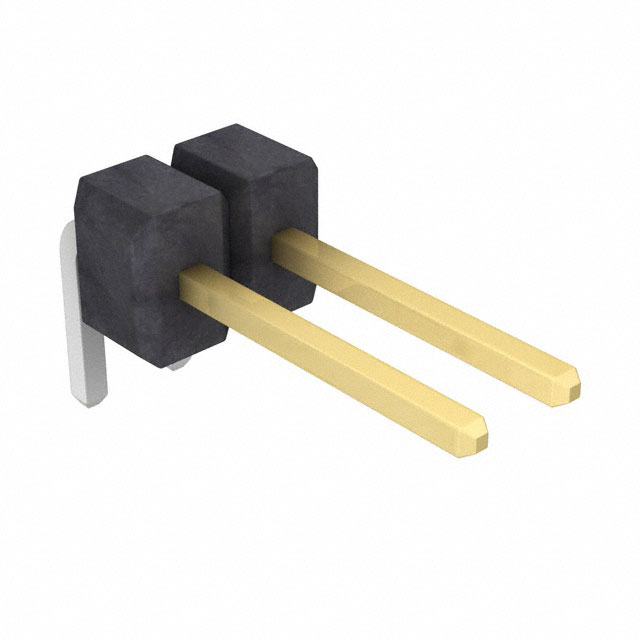

Sullins Connector Solutions PZC02SGAN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.318 in	8.08 mm	Male Pin	Unshrouded	0.25 µm	10 µin	3.05 mm	0.12 in	2	Square	3.56 mm	0.14 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Right Angle Through Hole	Tin	Header	Gold	1	UL94 V-0

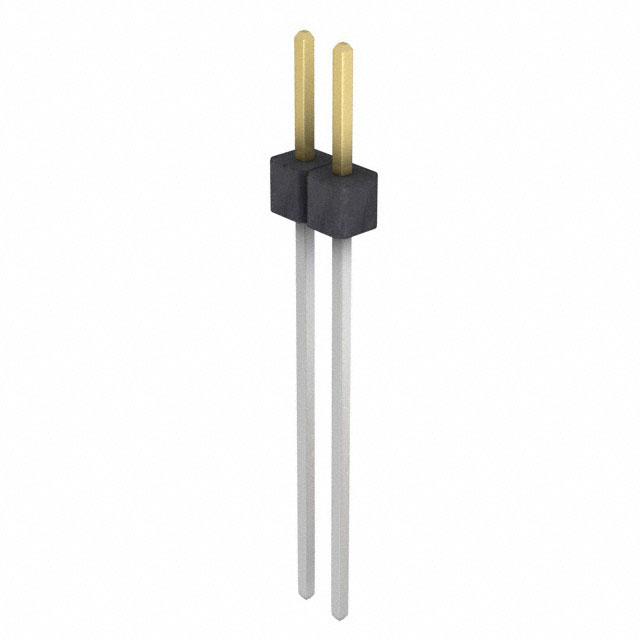

Sullins Connector Solutions PZC02SAHN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.23 in	5.84 mm	Male Pin	Unshrouded	0.25 µm	10 µin	20.83 mm	0.82 in	2	Square	2.54 mm	0.1 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Through Hole	Tin	Header	Gold	1	UL94 V-0								1.15 in	29.21 mm

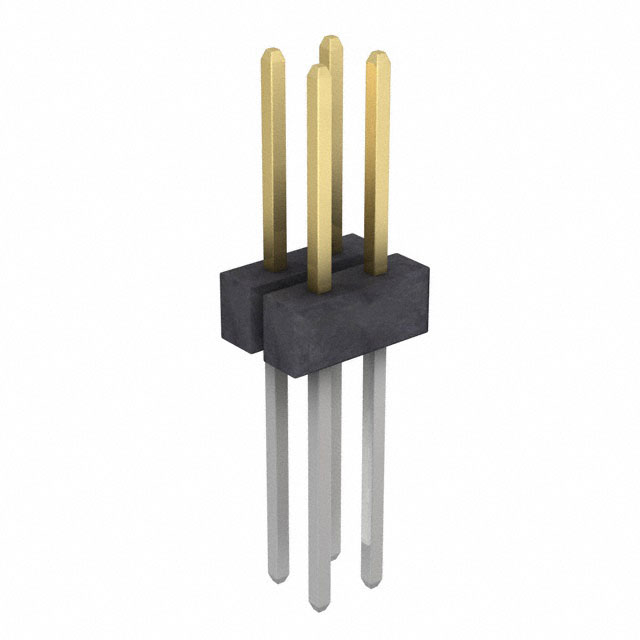

Sullins Connector Solutions PZC02DFDN	Polyester Thermoplastic	Solder	0.1 "	2.54 mm	3 A	Black	All	Push-Pull	0.318 in	8.08 mm	Male Pin	Unshrouded	0.25 µm	10 µin	10.67 mm	0.42 in	4	Square	2.54 mm	0.1 in	Copper Alloy	Board to Board Cable	2.54 µm	100 µin	Through Hole	Tin	Header	Gold		UL94 V-0					2	0.1 in	2.54 mm	0.838 in	21.29 mm
