S10B-PH Series

Catalog

CONN HEADER R/A 10POS 2MM

Part	Number of Rows [custom]	Connector Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Voltage Rating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Type	Insulation Color	Style	Contact Material	Insulation Material	Fastening Type	Contact Shape	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Length - Post [x]

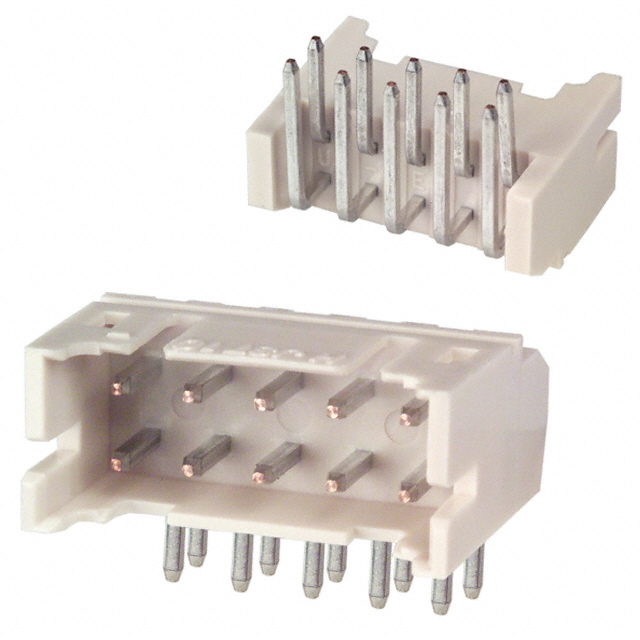

JST Sales America Inc. S10B-PHDSS	2	Header	0.079 "	2 mm	3 A	85 °C	-25 °C	Tin	250 V	Right Angle Through Hole	2.9 mm	0.114 in	Shrouded - 4 Wall	Solder	2 mm	0.079 in	0.197 "	5 mm	Male Pin	Natural	Board to Cable/Wire	Copper Alloy	Glass Filled Nylon Polyamide (PA)	Detent Lock	Square	All	10	UL94 V-0	0.118 in	3 mm
JST Sales America Inc. S10B-PH-KL		Header	0.079 "	2 mm	2 A	85 °C	-25 °C	Tin	100 V	Right Angle Through Hole			Shrouded - 4 Wall	Press-Fit Solder			0.189 in	4.8 mm	Male Pin	Gray	Board to Cable/Wire	Copper Alloy	Nylon 6/6 Polyamide (PA66)	Detent Lock	Square	All	10	UL94 V-0		3.4 mm	1	0.134 "
