220098 Series

1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Right-Angle, Through Hole, Tin-Bismuth Plating, Positive Lock, 8 Circuits, Natural (Beige)

Manufacturer: Molex

Catalog

1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Right-Angle, Through Hole, Tin-Bismuth Plating, Positive Lock, 8 Circuits, Natural (Beige)

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Rows	Mounting Type	Voltage Rating	Insulation Height	Insulation Height	Features	Fastening Type	Contact Shape	Contact Type	Material Flammability Rating	Contact Material	Number of Positions Loaded	Termination	Current Rating (Amps)	Style	Number of Positions	Contact Length - Post	Contact Length - Post	Shrouding	Contact Finish - Post	Number of Positions

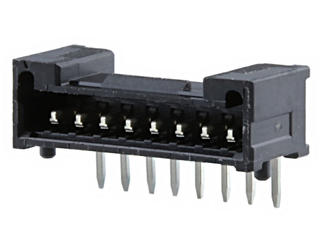

Molex 2200980871	-40 °C	105 ░C	Black	Header	1.25 mm	0.049 in	Glass Filled Nylon Polyamide (PA)	1	Through Hole Right Angle	50 VAC	0.152 in	3.85 mm	Board Guide Pick and Place	Locking Ramp	Rectangular	Male Pin	UL94 V-0	Brass	All	Solder	Varies by Wire Gauge	Board to Cable/Wire	8	0.091 in	2.3 mm	Shrouded - 4 Wall	Tin

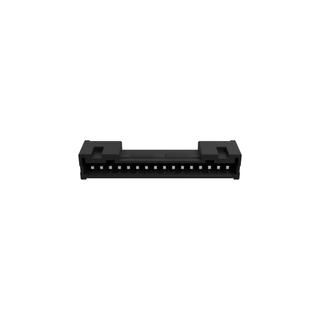

Molex 2200981671	-40 °C	105 ░C	Black	Header	1.25 mm	0.049 in	Glass Filled Nylon Polyamide (PA)	1	Through Hole Right Angle	50 VAC	0.152 in	3.85 mm	Board Guide Pick and Place	Locking Ramp	Rectangular	Male Pin	UL94 V-0	Brass	All	Solder	Varies by Wire Gauge	Board to Cable/Wire		0.091 in	2.3 mm	Shrouded - 4 Wall	Tin	16

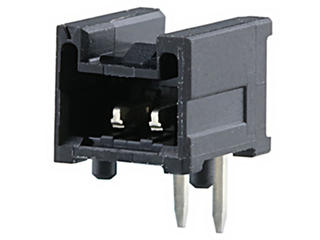

Molex 2200980471	-40 °C	105 ░C	Black	Header	1.25 mm	0.049 in	Glass Filled Nylon Polyamide (PA)	1	Through Hole Right Angle	50 VAC	0.152 in	3.85 mm	Board Guide Pick and Place	Locking Ramp	Rectangular	Male Pin	UL94 V-0	Brass	All	Solder	Varies by Wire Gauge	Board to Cable/Wire	4	0.091 in	2.3 mm	Shrouded - 4 Wall	Tin

1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Right-Angle, Through Hole, Tin-Bismuth Plating, Positive Lock, 8 Circuits, Natural (Beige)
