89734 Series
Manufacturer: Belden Inc.
Beta
⌘K

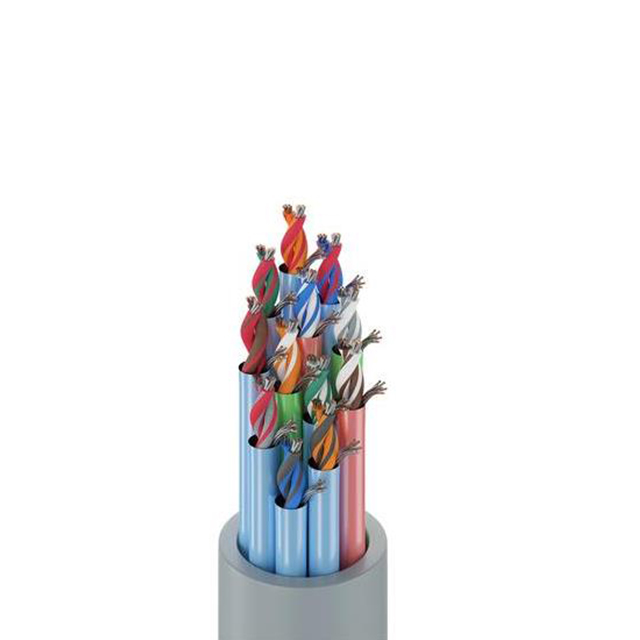

MULTI-PAIR 24CON 24AWG GRY
| Part | Shield Material | Shield Coverage | Usage | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Voltage | Length | Length | Ratings | Jacket (Insulation) Material | Wire Gauge | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Computer | 24 | 0.498 in | 12.65 mm | Foil | Drain Wire | -40 C | 150 °C | 7 | 32 AWG | Foam Fluorinated Ethylene-Propylene (FFEP) | Copper Tinned | 300 VDC | 304.8 m | 1000 ft | UL Style CMP | Plenum Polyvinylidene Fluoride (PVDF) | 24 AWG | Gray | Multi-Pair | 0.019 " | 0.483 mm |
