R11241 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

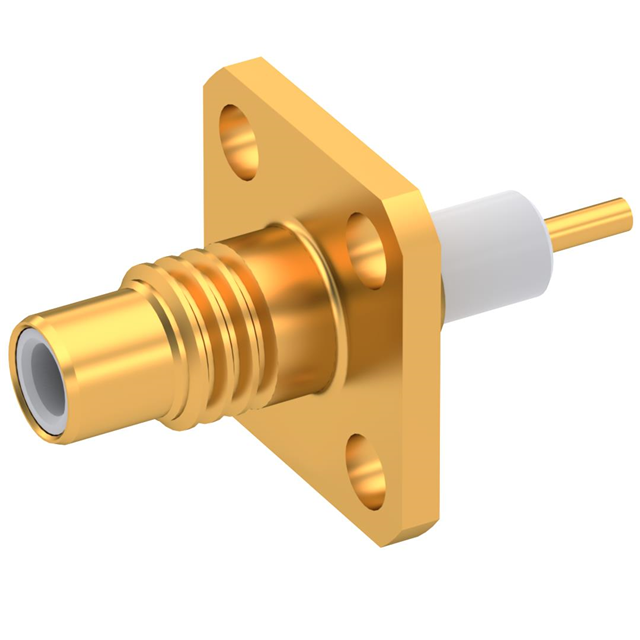

SMC / ADJUSTABLE SQUARE FLANGE J
| Part | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Body Material | Center Contact Plating | Mating Cycles | Mounting Feature | Shield Termination | Housing Color | Connector Style | Features | Frequency - Max [Max] | Number of Ports | Mounting Type | Center Contact Material | Impedance | Contact Termination | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 335 V | -65 ░C | 165 °C | Gold | Brass | Gold | 500 | Flange | Solder | Gold | SMC | Extended Insulation | 10 GHz | 1 | Panel Mount Through Hole | Brass | 50 Ohms | Solder | Threaded | Female Socket Plug |
