R12522 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

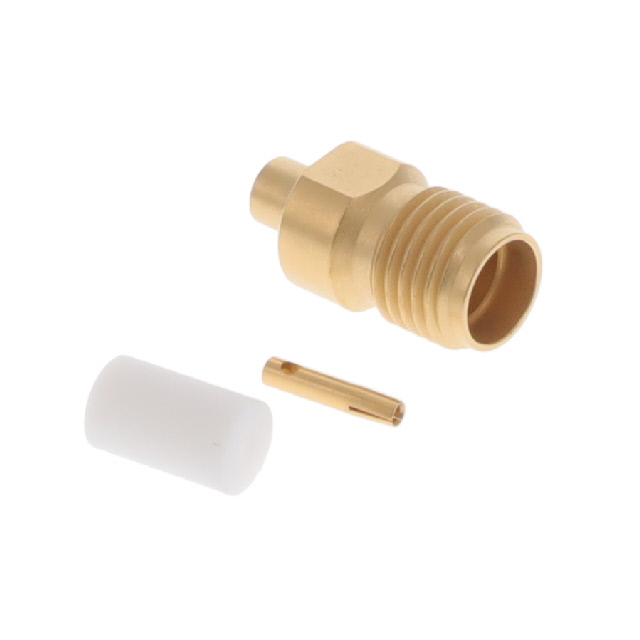

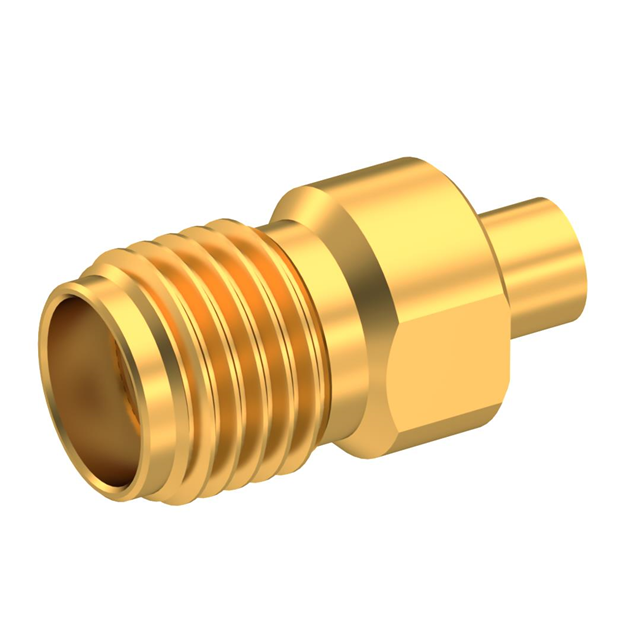

SMA / STRAIGHT JACK SOLDER TYPE
| Part | Mating Cycles | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Voltage Rating | Body Material | Dielectric Material | Fastening Type | Housing Color | Shield Termination | Number of Ports | Connector Type | Cable Group | Contact Termination | Connector Style | Frequency - Max [Max] | Mounting Type | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | 105 ░C | -65 ░C | Gold | 250 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | Threaded | Gold | Solder | 1 | Female Socket Jack | RG-405 (.085" Semi Rigid) | Solder | SMA | 18 GHz | Free Hanging (In-Line) | 50 Ohms | Beryllium Copper |
 Radiall USA, Inc. | 500 | Gold | 105 ░C | -65 ░C | Gold | 250 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | Threaded | Gold | Solder | 1 | Female Socket Jack | Solder | SMA | 18 GHz | Free Hanging (In-Line) | 50 Ohms | Beryllium Copper | |
 Radiall USA, Inc. | 500 | 105 ░C | -65 ░C | Gold | 500 V | Stainless Steel | Polytetrafluoroethylene (PTFE) | Threaded | Silver | Crimp | 1 | Female Socket Jack | Crimp | SMA | 18 GHz | Free Hanging (In-Line) | 50 Ohms | Beryllium Copper |
