8414 Series

Catalog

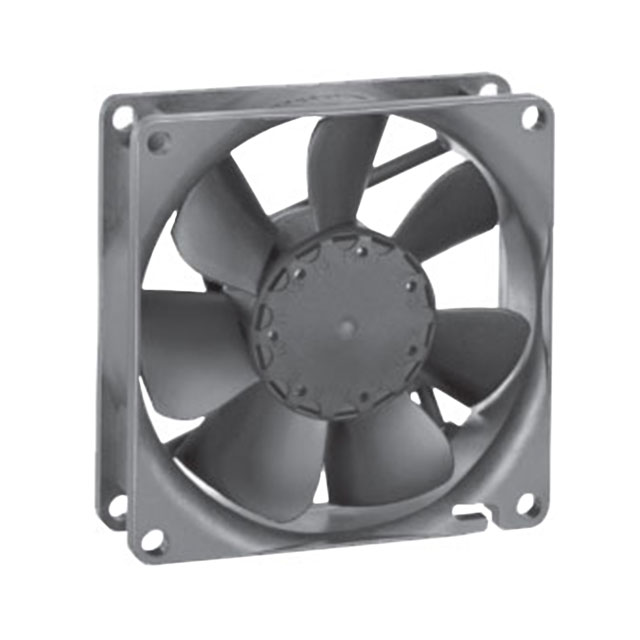

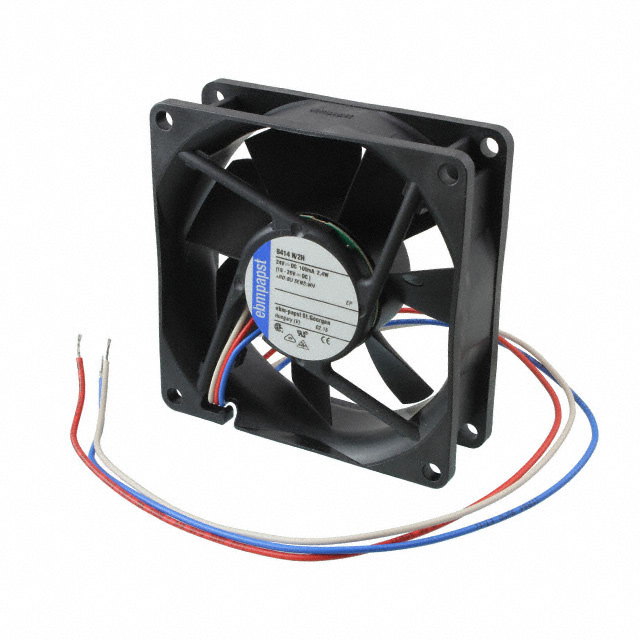

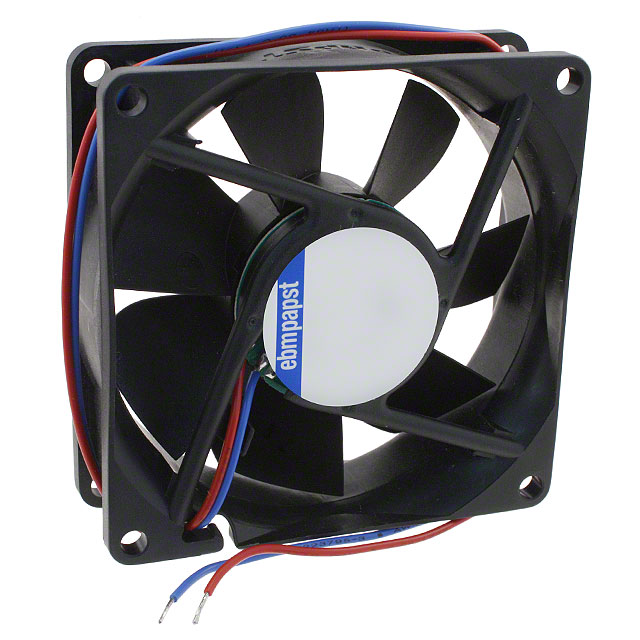

FAN AXIAL 80X25.4MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Blade	Material - Frame	Noise	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Bearing Type	Fan Type	Termination	Air Flow	Air Flow	RPM	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Approval Agency	Weight	Weight	Ingress Protection	Operating Temperature	Current Rating (Amps)
ebm-papst Inc. 8414N/2GM	18 VDC	28 V	80000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	37 dB	1.4 W	Speed Sensor (Tach)	-20 ░C	70 °C	25.4 mm	Sintec	Tubeaxial	3 Wire Leads	0.955 m³/min	34.1 CFM	2600 RPM	80 mm	80 mm	24 VDC
ebm-papst Inc. 8414NH-221	18 VDC	28 V	70000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	32 dB	2.2 W		-20 ░C	70 °C	25.4 mm	Ball	Tubeaxial	2 Wire Leads	1.3 m³/min	46.5 CFM	3600 RPM	80 mm	80 mm	24 VDC	CE CSA UL VDE
ebm-papst Inc. 8414NGL	18 VDC	28 V	80000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	12 dB(A)	700 mW		-20 ░C	70 °C	25.4 mm	Sintec	Tubeaxial	2 Wire Leads	0.543 m³/min	19.4 CFM	1500 RPM	80 mm	80 mm	24 VDC	CE CSA UL VDE	0.209 lb	94.8 g
ebm-papst Inc. 8414NHU	18 VDC	26 VDC		Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	37 dB	2.4 W		-20 ░C	65 °C	25.4 mm	Ball	Tubeaxial	2 Wire Leads	1.3 m³/min	46.5 CFM	3600 RPM	80 mm	80 mm	24 VDC	UL	0.21 lb	95.25 g	IP68 - Dust Tight Waterproof	(-20 ~ 65°C)
ebm-papst Inc. 8414NLU	18 VDC	28 V		Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	17 dB	0.8 W		-20 ░C	70 °C	25.4 mm	Ball	Tubeaxial	2 Wire Leads	0.543 m³/min	19.4 CFM	1500 RPM	80 mm	80 mm	24 VDC	UL	0.209 lb	94.8 g	IP68 - Dust Tight Waterproof
ebm-papst Inc. 8414NM	18 VDC	28 V	80000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	27 dB(A)	1.4 W		-20 ░C	70 °C	25.4 mm	Ball	Tubeaxial	2 Wire Leads	0.955 m³/min	34.1 CFM	2600 RPM	80 mm	80 mm	24 VDC	CE CSA UL VDE	0.209 lb	94.8 g
ebm-papst Inc. 8414NGH	18 VDC	28 V	70000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	37 dB	2.6 W		-20 ░C	70 °C	25.4 mm	Sintec	Tubeaxial	2 Wire Leads	1.3 m³/min	46.5 CFM	3600 RPM	80 mm	80 mm	24 VDC	CE CSA UL VDE	0.21 lb	95.25 g			110 mA
ebm-papst Inc. 8414NML	18 VDC	28 V	80000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	21 dB(A)	1.1 W		-20 ░C	70 °C	25.4 mm	Ball	Tubeaxial	2 Wire Leads	0.742 m³/min	26.5 CFM	2050 RPM	80 mm	80 mm	24 VDC	CE CSA UL VDE	0.209 lb	94.8 g	IP20
ebm-papst Inc. 8414N	18 VDC	28 V	70000 Hrs	Polyamide (PA) Nylon Fiberglass Reinforced	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	32 dB	2 W		-20 ░C	70 °C	25.4 mm	Ball	Tubeaxial	2 Wire Leads	1.14 m³/min	40.6 CFM	3100 RPM	80 mm	80 mm	24 VDC	CE CSA UL VDE	0.209 lb	94.8 g
