HPF-04 Series

Fuse Holder HPF FUSEHOLDER

Manufacturer: Samtec Inc.

Catalog

Fuse Holder HPF FUSEHOLDER

Catalog

Fuse Holder HPF FUSEHOLDER

Part	Connector Type	Number of Positions Loaded	Number of Positions	Mounting Type	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Features	Contact Finish - Post	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Contact Type	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Mating
Samtec Inc. HPF-04-02-T-S-K	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-08-01-TM-S	Receptacle	All	8	Through Hole	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black	0.102 in	2.6 mm
Samtec Inc. HPF-04-02-H-S-TR	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Gold	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black			Gold

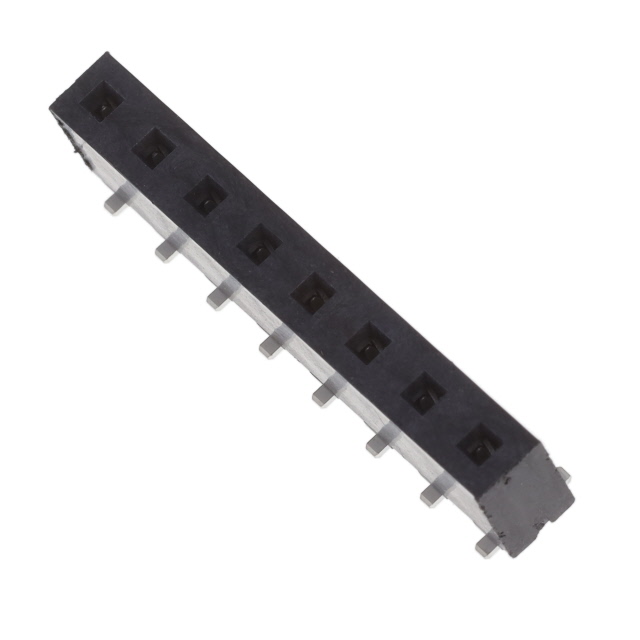

Samtec Inc. HPF-08-02-T-S-LC-K	Receptacle	All	8	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-08-02-TM-S-LC-K	Receptacle	All	8	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-04-02-H-S-LC	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Gold	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black			Gold

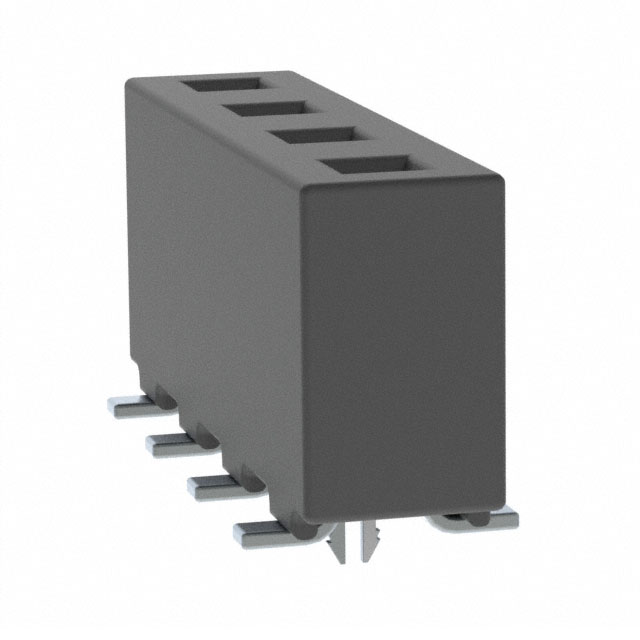

Samtec Inc. HPF-04-02-T-S-LC	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-04-02-H-S-K-TR	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Pick and Place	Gold	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black			Gold
Samtec Inc. HPF-08-02-T-S-TR	Receptacle	All	8	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black

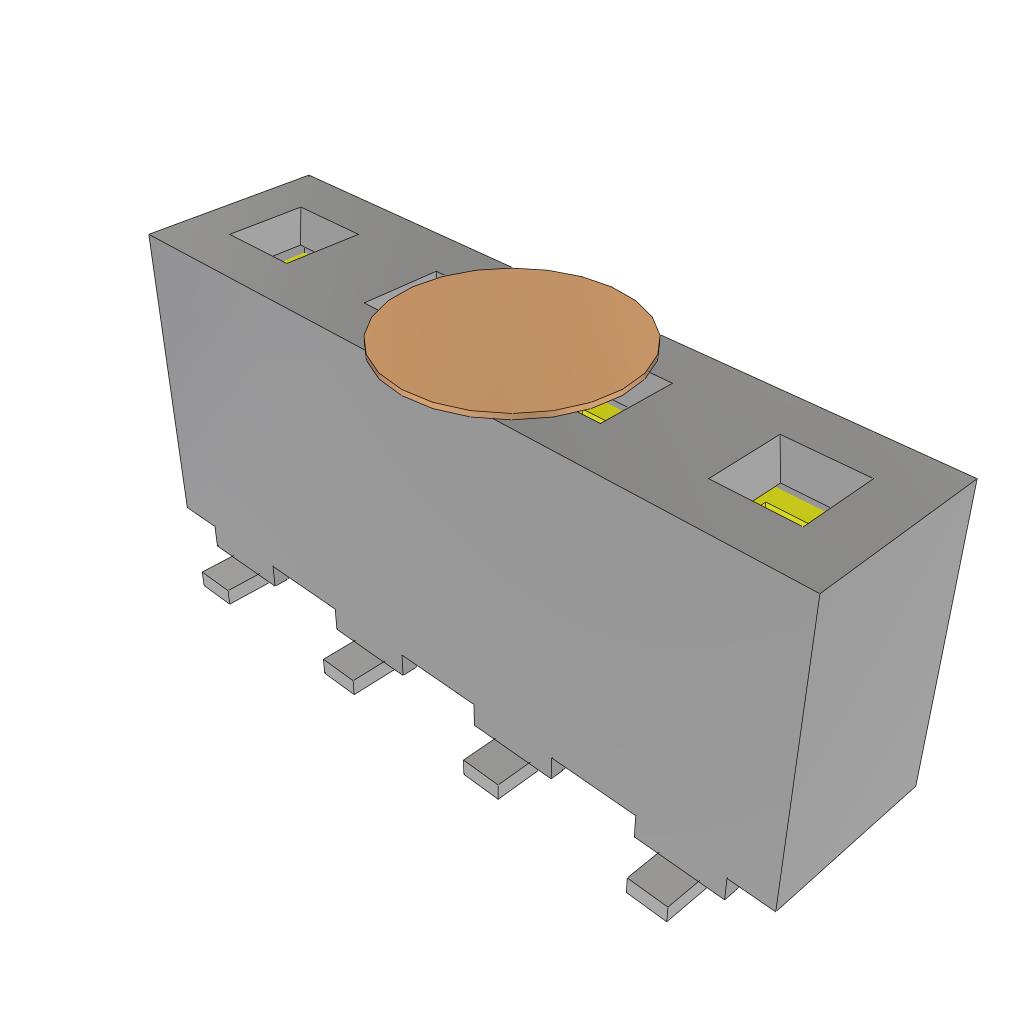

Samtec Inc. HPF-04-02-T-S-K-TR	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
