L77HDE15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

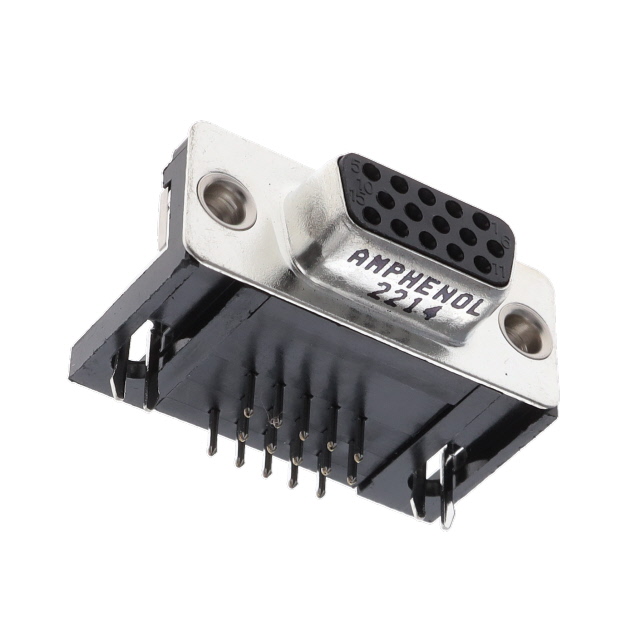

CONN D-SUB HD RCPT 15P R/A SLDR
| Part | Color | Contact Form | Voltage Rating | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Type | Termination | Number of Rows [custom] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature | Mounting Type | Backset Spacing | Backset Spacing | Connector Style | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Number of Positions | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Stamped | 250 V | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | 30 Áin | 0.76 Ám | Gold | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | Board Lock Grounding Tabs | (DE E) High Density | 1 | UL94 V-0 | 15 | |

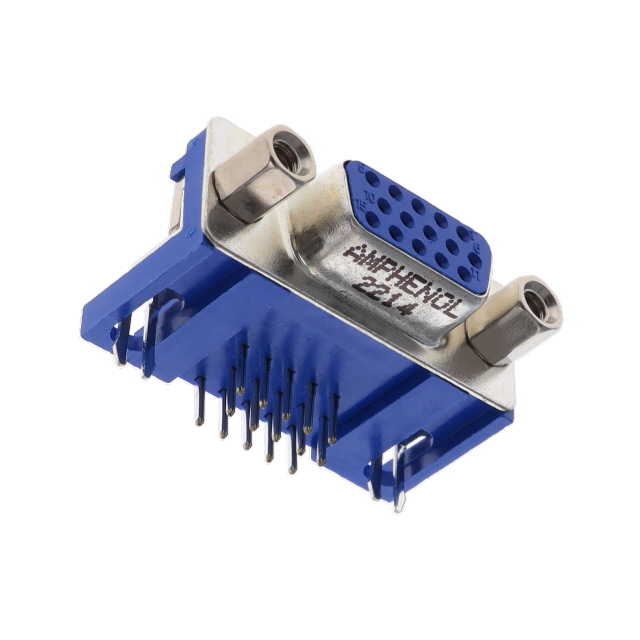

 Amphenol ICC (Commercial Products) | Blue | Stamped | 250 V | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | Gold | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | Board Lock Grounding Tabs | (DE E) High Density | 1 | UL94 V-0 | 15 | Flash | ||
 Amphenol ICC (Commercial Products) | Black | Stamped | 250 V | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | 30 Áin | 0.76 Ám | Gold | Mating Side Female Screwlock (M3) | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | Board Lock Grounding Tabs | (DE E) High Density | 1 | UL94 V-0 | 15 | |
 Amphenol ICC (Commercial Products) | Black | Stamped | 250 V | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | 30 Áin | 0.76 Ám | Gold | Board Side (M3) | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | Board Lock Grounding Tabs | (DE E) High Density | 1 | UL94 V-0 | 15 | |
 Amphenol ICC (Commercial Products) | Black | Stamped | 250 V | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | Gold | Board Side (M3) | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | Board Lock Grounding Tabs | (DE E) High Density | 1 | UL94 V-0 | 15 | Flash | ||

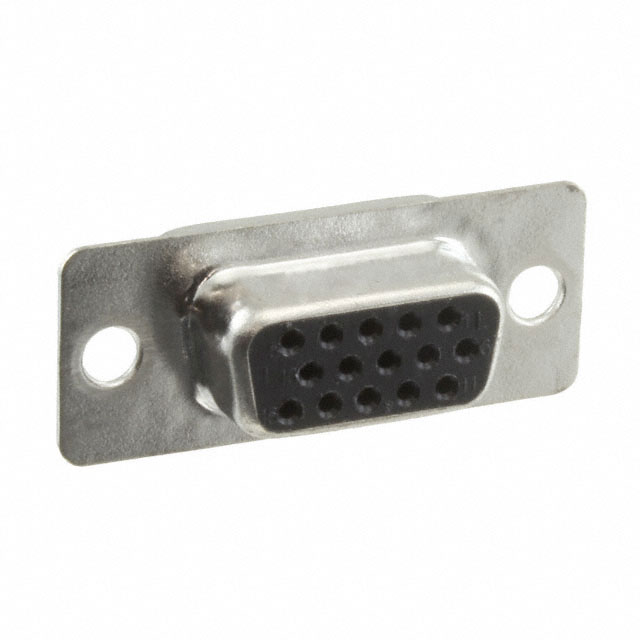

 Amphenol ICC (Commercial Products) | Stamped | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | -55 C | 155 C | Receptacle Female Sockets | Signal | 3 | 3 A | 30 Áin | 0.76 Ám | Gold | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | D-Sub High Density | (DE E) High Density | 1 | UL94 V-0 | 15 | ||||||
Amphenol ICC (Commercial Products) | Black | Stamped | 250 V | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | Gold | Mating Side Female Screwlock (M3) | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | Board Lock Grounding Tabs | (DE E) High Density | 1 | UL94 V-0 | 15 | Flash | ||
 Amphenol ICC (Commercial Products) | Black | Stamped | 250 V | Thermoplastic Glass Filled | Brass | -55 C | 105 ░C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | 30 Áin | 0.76 Ám | Gold | Board Side (4-40) | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | Board Lock Grounding Tabs | (DE E) High Density | 1 | UL94 V-0 | 15 | |
 Amphenol ICC (Commercial Products) | Stamped | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | -55 C | 155 C | Receptacle Female Sockets | Signal | 3 | 3 A | Gold | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | D-Sub High Density | (DE E) High Density | 1 | UL94 V-0 | 15 | Flash | |||||||
 Amphenol ICC (Commercial Products) | Stamped | 250 V | Thermoplastic Glass Filled | Phosphor Bronze | -55 C | 155 C | Receptacle Female Sockets | Signal | Solder | 3 | 3 A | Gold | Housing/Shell (Unthreaded) | Right Angle Through Hole | 8.89 mm | 0.35 in | D-Sub High Density | (DE E) High Density | 1 | UL94 V-0 | 15 | Flash |
