77229 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

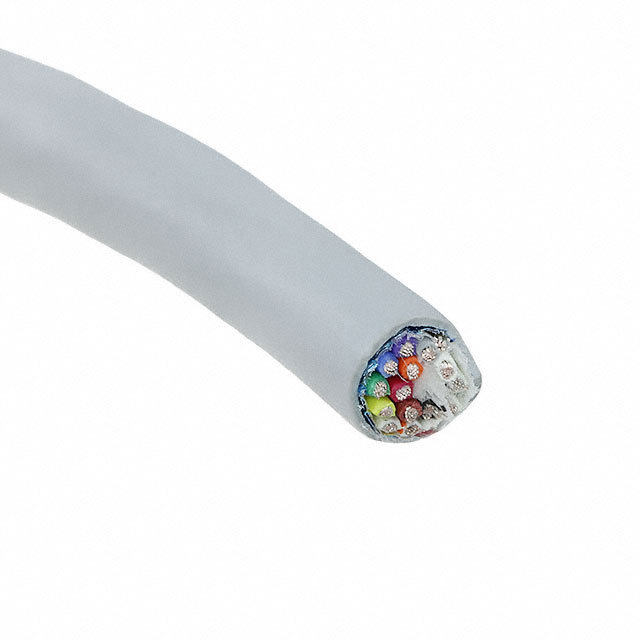

MULTI-CONDUCTOR CABLES 16 AWG 15 CONDUCTOR 600V SUPRASHIELD, MPPE, MPPE 100 FT SPOOL SLATE
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [diameter] | Wire Gauge | Conductor Insulation | Conductor Material | Cable Type | Jacket (Insulation) Material | Shield Type | Number of Conductors | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum Copper Tinned | 19 | 0.0117 in | 16 AWG | Polyphenylene Ether Modified (mPPE) | Copper Tinned | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Braid Foil | 15 | 0.461 " | 11.71 mm | ISO 10993 | -50 °C | 105 ░C | 600 V | 0.813 mm | 0.032 in | Slate | Biological Compatibility | 100 ft | 30.5 m |
ALPHA WIRE | 100 % | Aluminum Copper Tinned | 19 | 0.0117 in | 16 AWG | Polyphenylene Ether Modified (mPPE) | Copper Tinned | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | Braid Foil | 15 | 0.461 " | 11.71 mm | ISO 10993 | -50 °C | 105 ░C | 600 V | 0.813 mm | 0.032 in | Slate | Biological Compatibility |
