DBM25P3 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

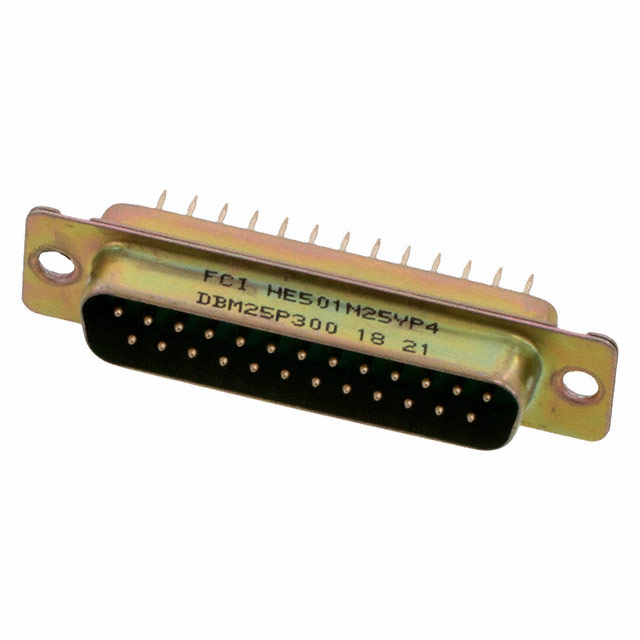

CONN D-SUB PLUG 25POS VERT SLDR
| Part | Termination | Voltage Rating | Shell Material, Finish | Contact Type | Contact Finish | Current Rating (Amps) | Contact Material | Connector Type | Material Flammability Rating | Flange Feature | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Number of Rows | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Solder | 300 VDC | Steel Yellow Cadmium Plated | Signal | Gold | 7.5 A | Brass | Male Pins Plug | UL94 V-0 | Housing/Shell (Unthreaded) | Thermoplastic | -55 °C | 125 °C | D-Sub | 2 | Through Hole | B DB | 3 |
