HD15-SN Series
Manufacturer: Adam Tech
Beta
⌘K
CONN D-SUB HD RCPT 15P R/A SLDR
| Part | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Number of Rows [custom] | Termination | Mounting Type | Contact Finish | Flange Feature | Flange Feature | Number of Positions | Connector Style | Connector Type | Features | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Backset Spacing | Backset Spacing | Contact Finish Thickness | Material Flammability Rating | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

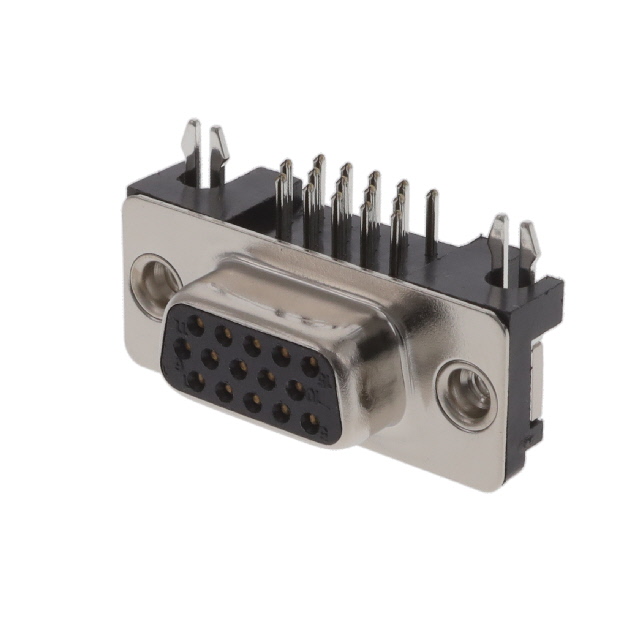

 Adam Tech | Black | Copper Alloy | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | 250 VAC | 3 | Solder | Right Angle Through Hole | Gold | Housing/Shell | 4-40 | 15 | D-Sub High Density | Receptacle Female Sockets | Board Lock | 3 A | (DE E) High Density | 1 | 3.08 mm | 0.121 in | Flash | UL94 V-0 | Nickel Plated Steel |

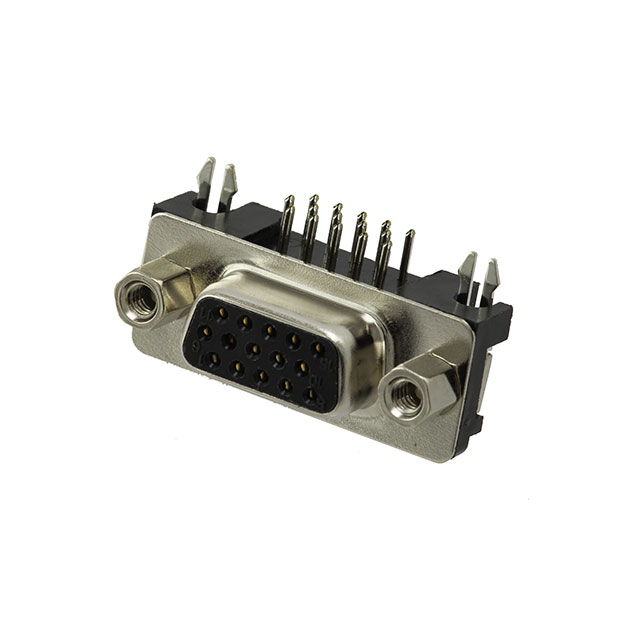

 Adam Tech | Black | Brass | Polybutylene Terephthalate (PBT) Glass Filled | 250 VAC | 3 | Solder | Right Angle Through Hole | Gold | 4-40 Mating Side Female Screwlock | 15 | D-Sub High Density | Receptacle Female Sockets | Board Lock | 3 A | (DE E) High Density | 1 | 3.08 mm | 0.121 in | Flash | UL94 V-0 |
