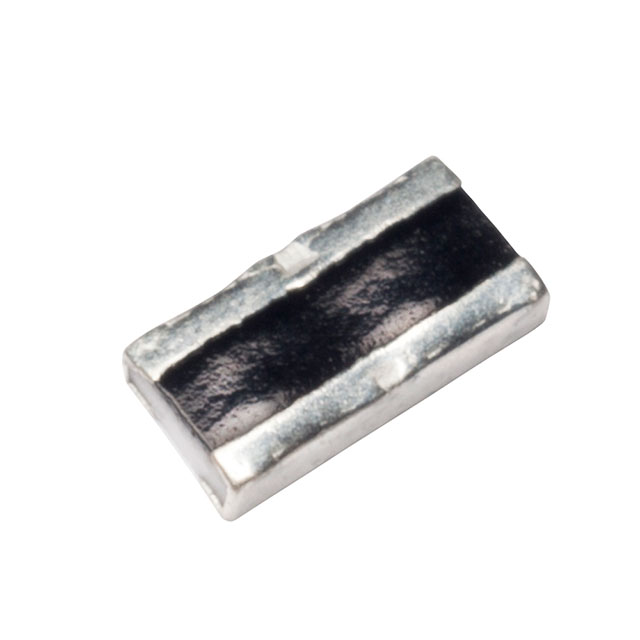

WU732B Series
Manufacturer: KOA Speer Electronics, Inc.
Beta
⌘K
RES 0612 0.025 OHM 1% 1W ±75PPM/°C WIDE TERMINAL SMD T/R AUTOMOTIVE AEC-Q200
| Part | Ratings | Power (Watts) | Composition | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Resistance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Number of Terminations [custom] | Temperature Coefficient | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOA Speer Electronics, Inc. | AEC-Q200 | 1 W | Thick Film | 1 % | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 25 mOhms | 0.7 mm | 0.028 " | 2 | 75 ppm/°C | 0612 | 155 C | -55 C | 0612 Wide 1206 (3216 Metric) | Automotive AEC-Q200 Moisture Resistant |
 KOA Speer Electronics, Inc. | AEC-Q200 | 1 W | Thick Film | 1 % | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 15 mOhms | 0.7 mm | 0.028 " | 2 | 75 ppm/°C | 0612 | 155 C | -55 C | 0612 Wide 1206 (3216 Metric) | Automotive AEC-Q200 Moisture Resistant |
KOA Speer Electronics, Inc. | AEC-Q200 | 1 W | Thick Film | 1 % | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 47 mOhms | 0.7 mm | 0.028 " | 2 | 100 ppm/°C | 0612 | 155 C | -55 C | 0612 Wide 1206 (3216 Metric) | Automotive AEC-Q200 Moisture Resistant |
KOA Speer Electronics, Inc. | AEC-Q200 | 1 W | Thick Film | 1 % | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 43 mOhms | 0.7 mm | 0.028 " | 2 | 100 ppm/°C | 0612 | 155 C | -55 C | 0612 Wide 1206 (3216 Metric) | Automotive AEC-Q200 Moisture Resistant |
KOA Speer Electronics, Inc. | AEC-Q200 | 1 W | Thick Film | 1 % | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 0.02 Ohms | 0.7 mm | 0.028 " | 2 | 75 ppm/°C | 0612 | 155 C | -55 C | 0612 Wide 1206 (3216 Metric) | Automotive AEC-Q200 Moisture Resistant |
KOA Speer Electronics, Inc. | AEC-Q200 | 1.5 W | Thick Film | 1 % | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 16 mOhms | 0.7 mm | 0.028 " | 2 | 75 ppm/°C | 0612 | 155 C | -55 C | 0612 Wide 1206 (3216 Metric) | Automotive AEC-Q200 Moisture Resistant |
KOA Speer Electronics, Inc. | AEC-Q200 | 1.5 W | Thick Film | 1 % | 3.2 mm | 0.063 " | 1.6 mm | 0.126 in | 33 mOhms | 0.7 mm | 0.028 " | 2 | 100 ppm/°C | 0612 | 155 C | -55 C | 0612 Wide 1206 (3216 Metric) | Automotive AEC-Q200 Moisture Resistant |
