3411 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

SOLIS R 22-16COMM 22-18MIL 1/4

Part	Termination	Mounting Type	Stud/Tab Size	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Contact Material	Length - Overall	Length - Overall [x]	Features	Terminal Type	Insulation	Stud/Tab Size	Length - Overall [x]	Width - Outer Edges [custom]	Width - Outer Edges [custom]

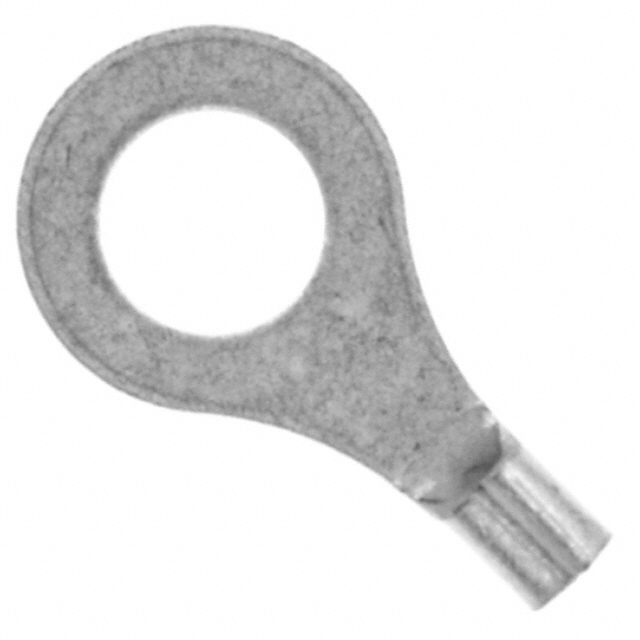

TE Connectivity Raychem Cable Protection 34113	Crimp	Free Hanging (In-Line)	0.25 Stud	0.031 in	0.79 mm	22 AWG	16 AWG	11.91 mm	0.469 in	Tin	Copper	21.74 mm	0.856 "	Brazed Seam Serrated Termination	Circular	Non-Insulated

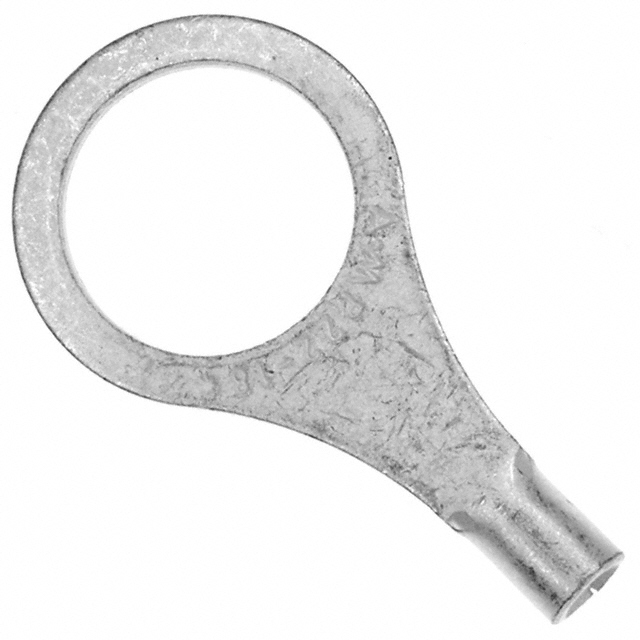

TE Connectivity Raychem Cable Protection 34115	Crimp	Free Hanging (In-Line)		0.031 in	0.79 mm	22 AWG	16 AWG			Tin	Copper		0.995 in	Brazed Seam Serrated Termination	Circular	Non-Insulated	3/8 Stud	25.27 mm	13.49 mm	0.531 "
TE Connectivity Raychem Cable Protection 34111	Crimp	Free Hanging (In-Line)		0.031 in	0.79 mm	22 AWG	16 AWG	7.92 mm	0.312 in	Tin	Copper	15.77 mm	0.621 in	Brazed Seam Serrated Termination	Circular	Non-Insulated	8 Stud

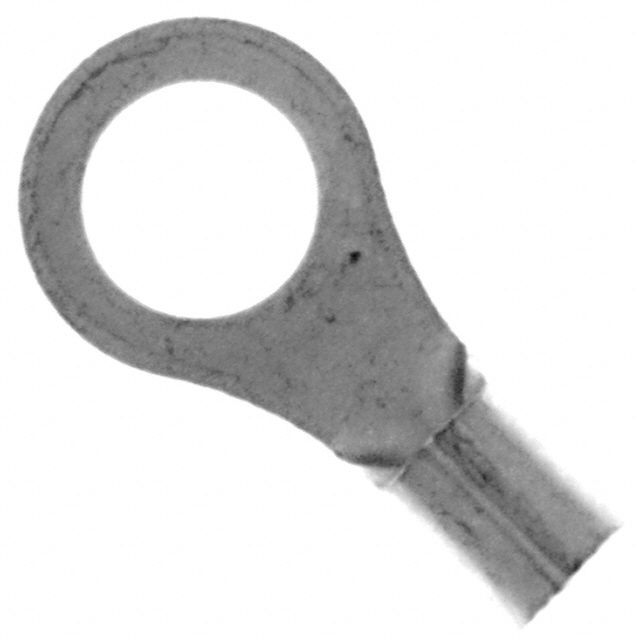

TE Connectivity Raychem Cable Protection 34112	Crimp	Free Hanging (In-Line)	10 Stud	0.031 in	0.79 mm	22 AWG	16 AWG	7.92 mm	0.312 in	Tin	Copper	15.77 mm	0.621 in	Brazed Seam Serrated Termination	Circular	Non-Insulated

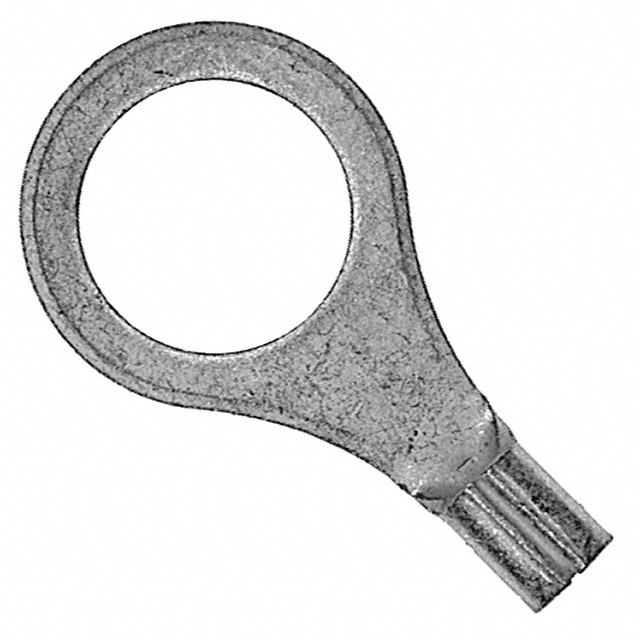

TE Connectivity Raychem Cable Protection 34114	Crimp	Free Hanging (In-Line)	0.3125 Stud	0.031 in	0.79 mm	22 AWG	16 AWG	11.91 mm	0.469 in	Tin	Copper	21.74 mm	0.856 "	Brazed Seam Serrated Termination	Circular	Non-Insulated

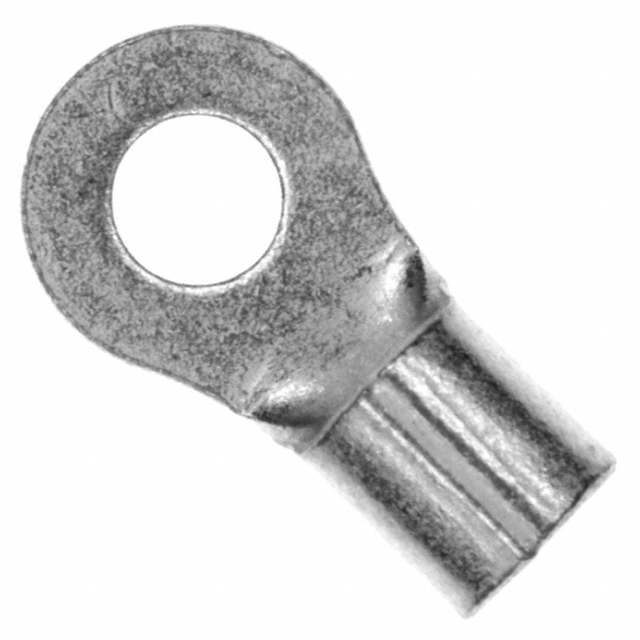

TE Connectivity Raychem Cable Protection 34119	Crimp	Free Hanging (In-Line)	4 Stud	0.031 in	0.79 mm			6.35 mm	0.25 "	Tin	Copper		0.48 in	Brazed Seam Serrated Termination	Circular	Non-Insulated		12.19 mm
