NHD-24064 Series

Catalog

LCD MOD GRAPH 240X64 WH TRANSFL

Part	Dot Pitch [z]	Dot Pitch [y]	Dot Size [custom]	Dot Size [custom]	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [y]	Viewing Area [x]	Background Color	Background Color	Interface	Backlight	Display Mode	Display Type	Graphics Color	Controller Type	Graphics Color	Dot Size [x]	Dot Size [y]

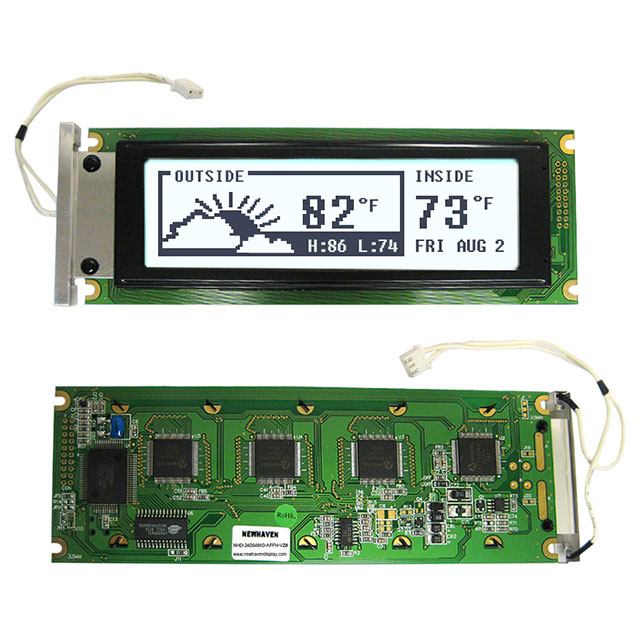

Newhaven Display Intl NHD-24064WG-AFFH-VZ#	0.53 mm	0.53 mm	0.49 mm	0.49 mm	240	64	39 mm	133 mm	Black	White	8-Bit Parallel	CCFL	Transflective	FSTN - Film Super-Twisted Nematic	Black White - Inverted

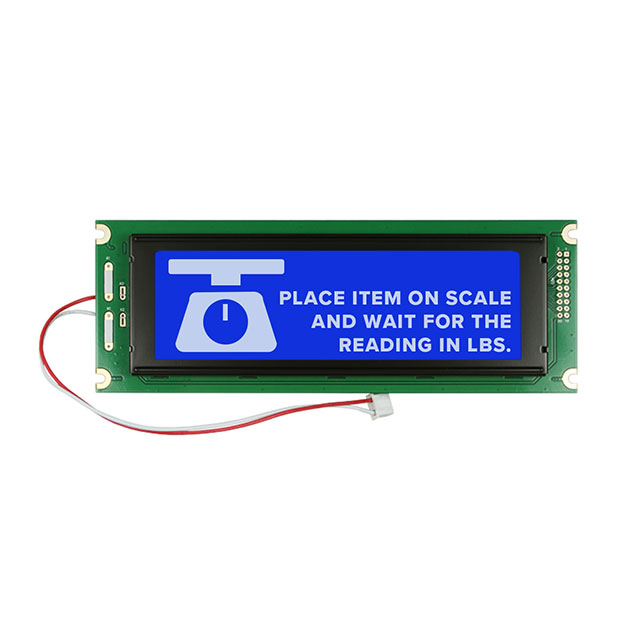

Newhaven Display Intl NHD-24064WG-ATMI-VZ#	0.53 mm	0.53 mm	0.49 mm	0.49 mm	240	64	39 mm	133 mm		Blue	8-Bit Parallel	LED - White	Transmissive	STN - Super-Twisted Nematic	White	T6963C	Blue

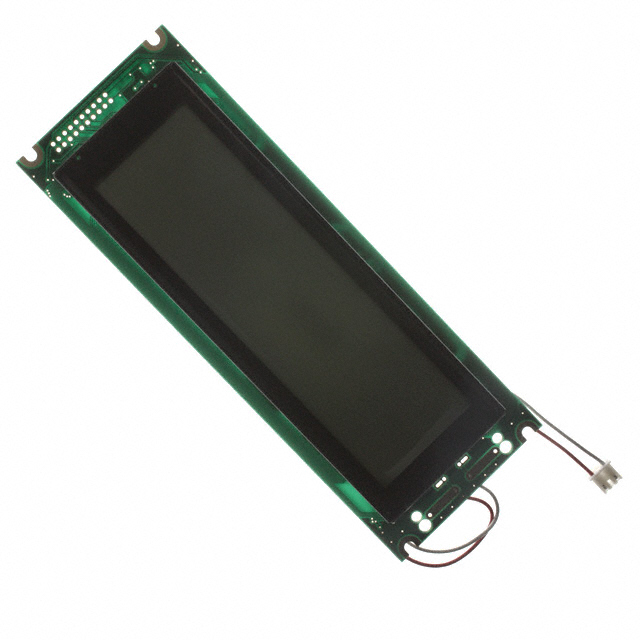

Newhaven Display Intl NHD-24064WG-ASFH-VZ#	0.53 mm	0.53 mm	0.49 mm	0.49 mm	240	64	39 mm	133 mm		Black (White - Inverted)	8-Bit Parallel	LED - White	Transflective	FSTN - Film Super-Twisted Nematic	White (Black - Inverted)

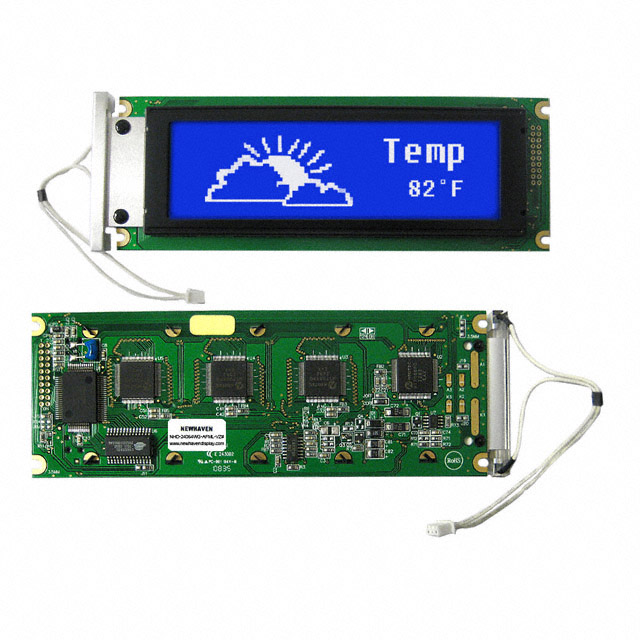

Newhaven Display Intl NHD-24064WG-AFML-VZ#	0.53 mm	0.53 mm	0.49 mm	0.49 mm	240	64	39 mm	133 mm		Blue	8-Bit Parallel	CCFL	Transmissive	STN - Super-Twisted Nematic	White		Blue

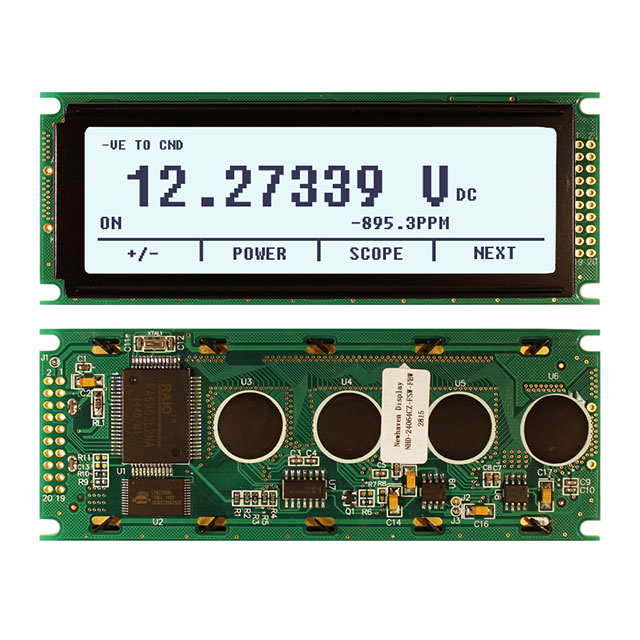

Newhaven Display Intl NHD-24064CZ-FSW-FBW					240	64	30 mm	96 mm	Black	White	8-Bit Parallel	LED - White	Transflective	FSTN - Film Super-Twisted Nematic	Black White - Inverted	T6963C		0.34 mm	0.34 mm

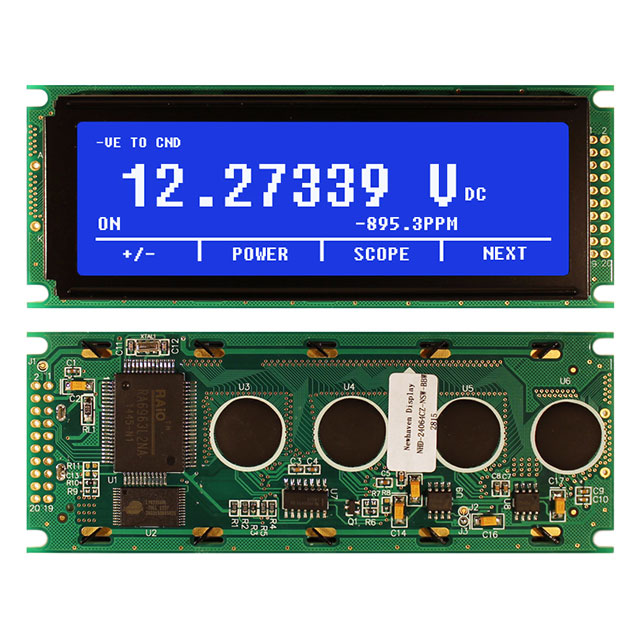

Newhaven Display Intl NHD-24064CZ-NSW-BBW					240	64	30 mm	96 mm		Blue	8-Bit Parallel	LED - White	Transmissive	STN - Super-Twisted Nematic	White	T6963C	Blue	0.34 mm	0.34 mm

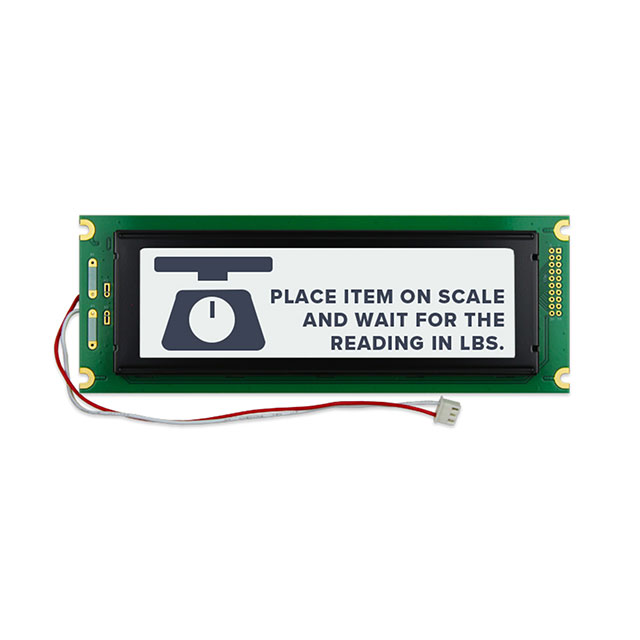

Newhaven Display Intl NHD-24064WG-ATFH-VZ#	0.53 mm	0.53 mm	0.49 mm	0.49 mm	240	64	39 mm	133 mm	Black	White	8-Bit Parallel	LED - White	Transflective	FSTN - Film Super-Twisted Nematic	Black White - Inverted	T6963C

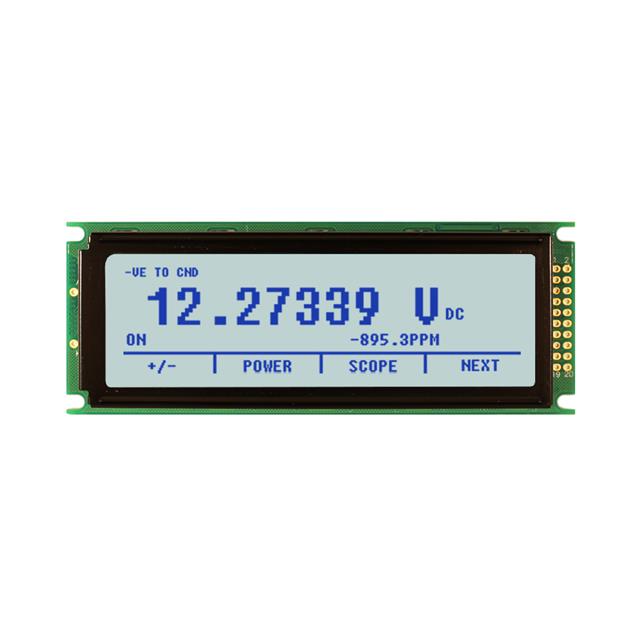

Newhaven Display Intl NHD-24064CZ-FSW-GBW					240	64	30 mm	96 mm		Gray (Blue - Inverted)	8-Bit Parallel	LED - White	Transflective	STN - Super-Twisted Nematic	Blue	T6963C	Gray - Inverted	0.34 mm	0.34 mm

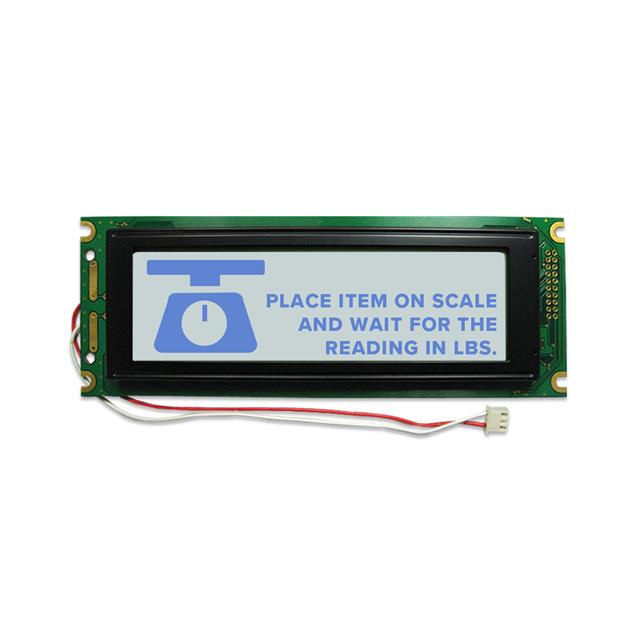

Newhaven Display Intl NHD-24064WG-ATGH-VZ#	0.53 mm	0.53 mm	0.49 mm	0.49 mm	240	64	39 mm	133 mm		Gray (Blue - Inverted)	8-Bit Parallel	LED - White	Transflective	STN - Super-Twisted Nematic	Blue	T6963C	Gray - Inverted

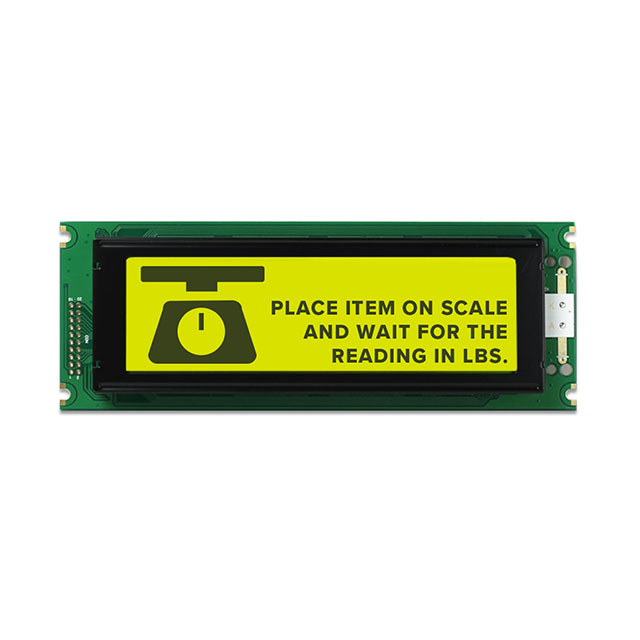

Newhaven Display Intl NHD-24064WG-AYYH-VZ#	0.53 mm	0.53 mm	0.49 mm	0.49 mm	240	64	39 mm	133 mm		Yellow (Black - Inverted)	8-Bit Parallel		Transflective	STN - Super-Twisted Nematic	Black	T6963C
