325-051 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 51POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Rows | Number of Positions/Bay/Row [custom] | Color | Pitch | Pitch | Gender | Number of Positions | Read Out | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness | Card Thickness | Termination | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

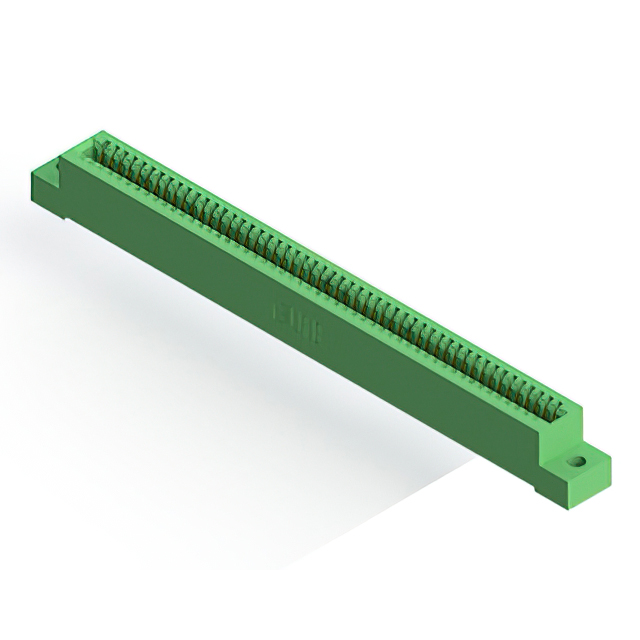

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 1 | 51 | Green | 0.1 " | 2.54 mm | Female | 51 | Single | Copper Alloy | Through Hole | -65 ░C | 125 °C | Gold | Cantilever | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Solder | Non Specified - Single Edge |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 1 | 51 | Green | 0.1 " | 2.54 mm | Female | 51 | Single | Copper Alloy | Through Hole | -65 ░C | 125 °C | Gold | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Solder | Non Specified - Single Edge | ||

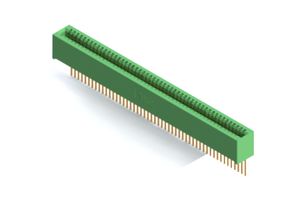

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 1 | 51 | Green | 0.1 " | 2.54 mm | Female | 51 | Single | Copper Alloy | Through Hole | -65 ░C | 125 °C | Gold | Cantilever | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Wire Wrap | Non Specified - Single Edge | |||

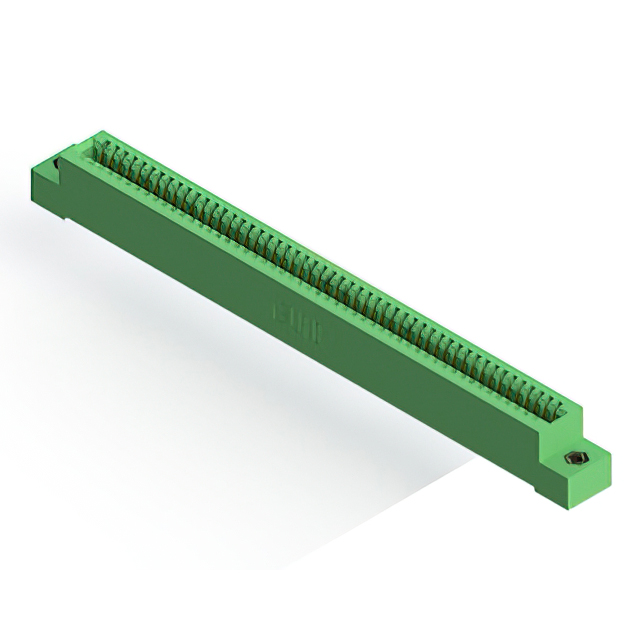

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 1 | 51 | Green | 0.1 " | 2.54 mm | Female | 51 | Single | Copper Alloy | Through Hole | -65 ░C | 125 °C | Gold | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Solder | Non Specified - Single Edge | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 1 | 51 | Green | 0.1 " | 2.54 mm | Female | 51 | Single | Copper Alloy | Through Hole | -65 ░C | 125 °C | Gold | Cantilever | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Solder Eyelet(s) | Non Specified - Single Edge |
