0952-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

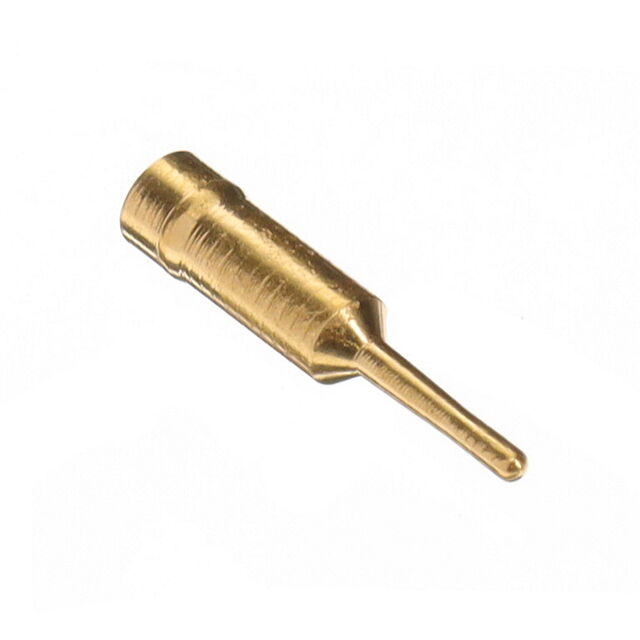

CONN PC PIN CIRC 0.017DIA GOLD
| Part | Mounting Type | Contact Material | Termination | Terminal Type | Length - Overall | Length - Overall | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Flange Diameter | Flange Diameter | Insulation | Mounting Hole Diameter | Mounting Hole Diameter | Terminal Style | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | Brass Alloy | Press-Fit | PC Pin | 0.28 in | 7.11 mm | 6.12 mm | 0.241 in | 0.017 in | 0.43 mm | 0.058 in | 1.47 mm | Non-Insulated | 1.42 mm | 0.056 " | Single End | Gold | 20 µin | 0.51 µm |
 Mill-Max Manufacturing Corp. | Through Hole | Brass Alloy | Press-Fit | PC Pin | 0.28 in | 7.11 mm | 6.12 mm | 0.241 in | 0.017 in | 0.43 mm | 0.058 in | 1.47 mm | Non-Insulated | 1.42 mm | 0.056 " | Single End | Gold | 10 Áin | 0.25 Ám |
Mill-Max Manufacturing Corp. | Through Hole | Brass Alloy | Press-Fit | PC Pin | 0.28 in | 7.11 mm | 6.12 mm | 0.241 in | 0.017 in | 0.43 mm | 0.058 in | 1.47 mm | Non-Insulated | 1.42 mm | 0.056 " | Single End | Tin-Lead | 200 Áin | 5.08 Ám |
