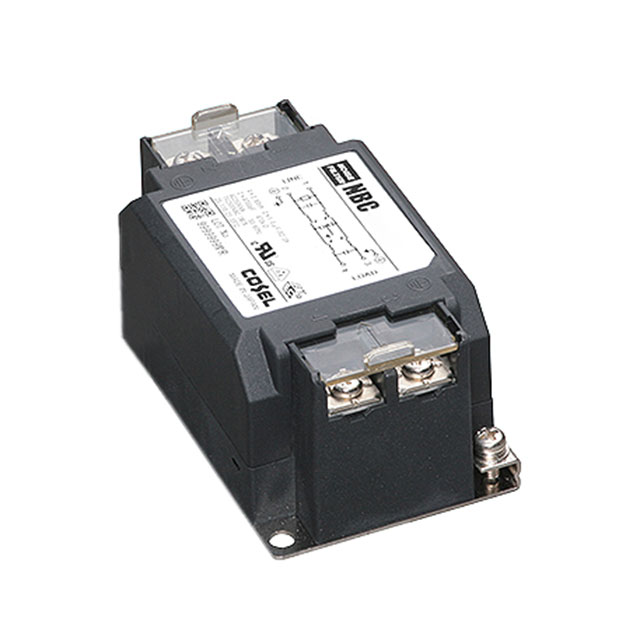

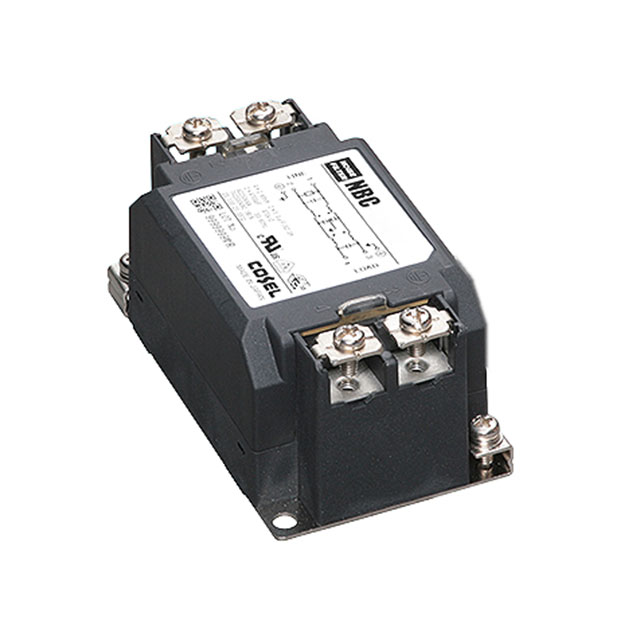

NBC-30 Series

Power Line Filters AC 1-250 / DC250 16A 12.5 uA/ 25 uA max

Manufacturer: Cosel USA, Inc.

Catalog

Power Line Filters AC 1-250 / DC250 16A 12.5 uA/ 25 uA max

Catalog

Power Line Filters AC 1-250 / DC250 16A 12.5 uA/ 25 uA max

Part	Voltage - Rated DC	Termination Style	Approval Agency	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type	Voltage - Rated AC	Current	Configuration	Filter Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]
Cosel USA, Inc. NBC-30-222-D	250 V	Terminal Block	cURus VDE	250 V	DIN Rail	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-102	250 V	Terminal Block	cURus VDE	250 V	Chassis Mount	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-332-D	250 V	Terminal Block	cURus VDE	250 V	DIN Rail	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-681-D	250 V	Terminal Block	cURus VDE	250 V	DIN Rail	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-472-D	250 V	Terminal Block	cURus VDE	250 V	DIN Rail	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-681	250 V	Terminal Block	cURus VDE	250 V	Chassis Mount	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-102-D	250 V	Terminal Block	cURus VDE	250 V	DIN Rail	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-332	250 V	Terminal Block	cURus VDE	250 V	Chassis Mount	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
Cosel USA, Inc. NBC-30-472	250 V	Terminal Block	cURus VDE	250 V	Chassis Mount	250 V	30 A	Two Stage	Single Phase	General Purpose	85 °C	-40 C
