PGFM Series

Catalog

BRIDGE RECT 1P 200V 10A MODULE

Part	Mounting Type	Voltage - Peak Reverse (Max)	Current - Reverse Leakage @ Vr	Technology	Package / Case	Supplier Device Package	Current - Average Rectified (Io)	Diode Type	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Structure	Number of SCRs, Diodes
Sensata-Crydom T483A	Surface Mount	200 V	25 µA	Standard	Module	Module	10 A	Single Phase
Sensata-Crydom M254012FV	Chassis Mount				Module				75 mA	2.5 V	400 A	600 V	50 mA	2	2	Bridge Single Phase - SCRs/Diodes (Layout 1)
Sensata-Crydom T582					Module
Sensata-Crydom BW511FS-YE	Chassis Mount			Standard	Module	Module	12 A	Single Phase

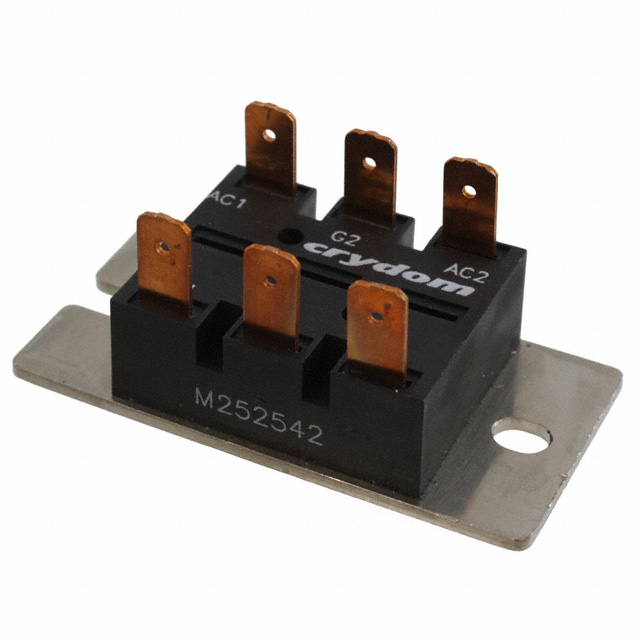

Sensata-Crydom M252542	Chassis Mount				Module				75 mA	2.5 V	300 A	600 V	50 mA			1-Phase Controller - All SCRs	2 SCRs
Sensata-Crydom M254015F	Chassis Mount				Module				75 mA	2.5 V	400 A	1.2 kV	50 mA	2	2	Bridge Single Phase - SCRs/Diodes (Layout 1)
Sensata-Crydom T612FS					Module
Sensata-Crydom M252535V	Chassis Mount				Module				75 mA	2.5 V	300 A	1.2 kV	50 mA			Bridge Single Phase - All SCRs	4 Diodes
