3249 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN SPADE TERM 16-22AWG #8 RED

Part	Length - Termination	Length - Termination	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges	Color	Features	Stud/Tab Size	Length - Overall	Length - Overall [x]	Mounting Type	Contact Material	Termination	Contact Finish	Insulation	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Terminal Type	Insulation Diameter [Max] [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Thickness	Thickness	Length - Overall [x]	Number of Wire Entries

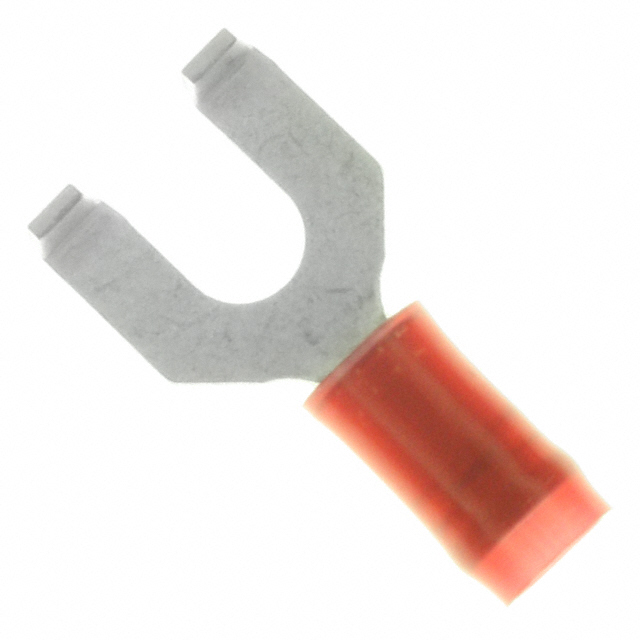

TE Connectivity Raychem Cable Protection 32498	0.404 "	10.26 mm	22 AWG	16 AWG	0.416 in	10.57 mm	Red	Serrated Termination	8 Stud	21.08 mm	0.83 in	Free Hanging (In-Line)	Copper	Crimp	Tin	Insulated	0.14 in	0.105 in	3.56 mm	2.67 mm	0.171 in	4.34 mm	0.25 in	6.35 mm	Nylon Polyamide (PA)	Flanged

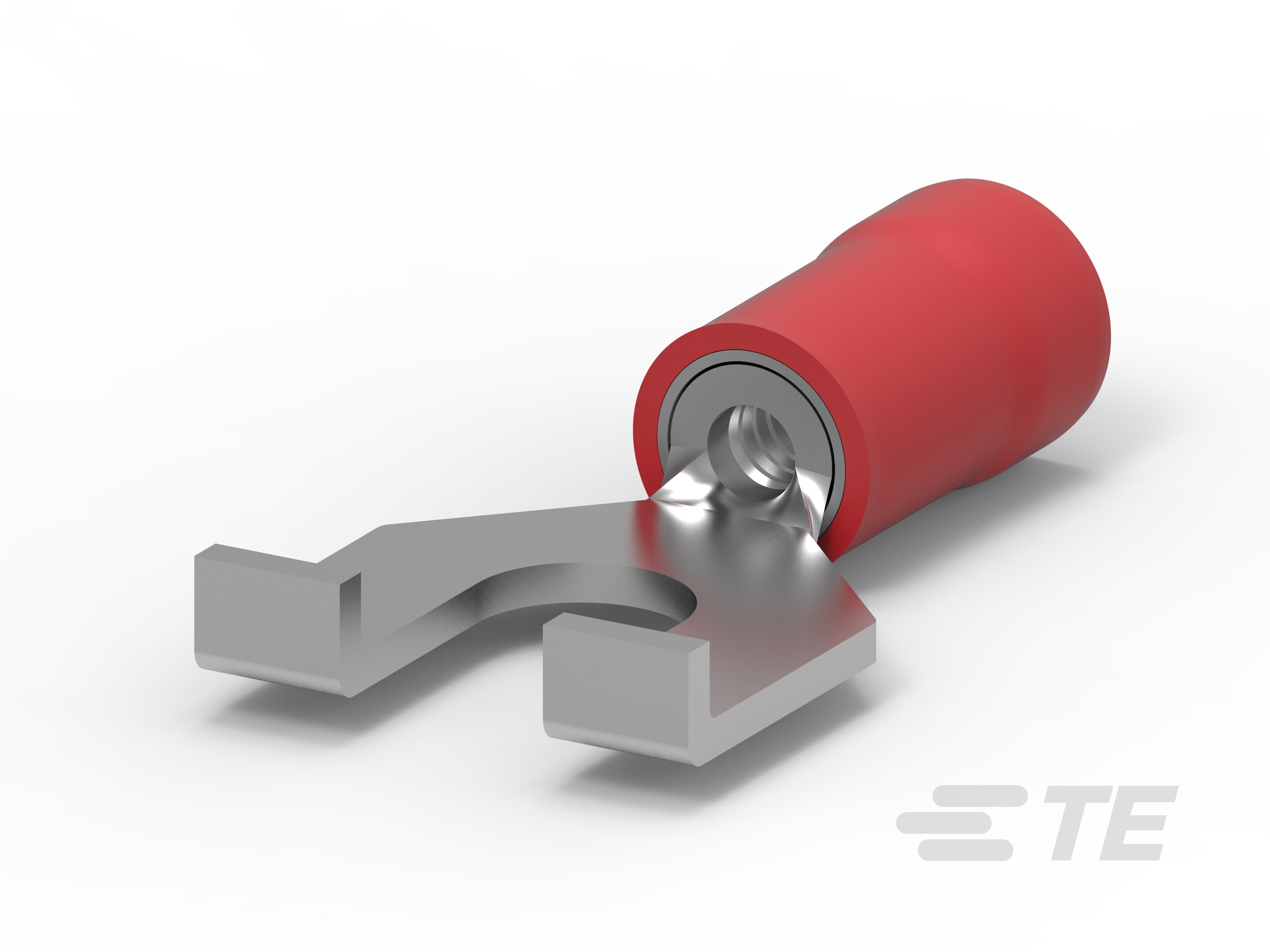

TE Connectivity Raychem Cable Protection 32497	0.404 "	10.26 mm	22 AWG	16 AWG	0.416 in	10.57 mm	Red	Serrated Termination	8 Stud	21.08 mm	0.83 in	Free Hanging (In-Line)	Copper	Crimp	Tin	Insulated	0.125 "	0.08 in		2.03 mm	0.171 in	4.34 mm	0.25 in	6.35 mm	Nylon Polyamide (PA)	Flanged	3.18 mm

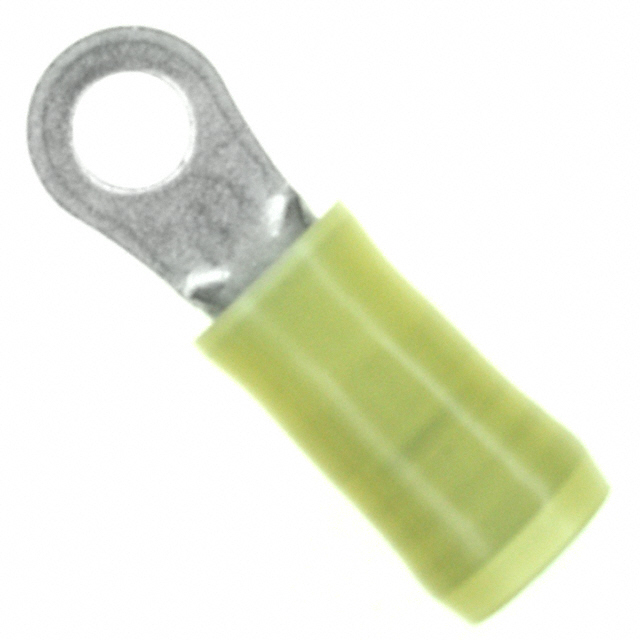

TE Connectivity Raychem Cable Protection 324915			12 AWG	10 AWG			Yellow	Serrated Termination	8 Stud		1.052 in	Free Hanging (In-Line)	Copper	Crimp	Tin	Insulated									Nylon Polyamide (PA)	Circular		7.92 mm	0.312 in	0.15 "	3.81 mm	0.23 in	5.84 mm	0.04 in	1.02 mm	26.72 mm
TE Connectivity Raychem Cable Protection 324988			22 AWG	17.5 AWG			Natural	Serrated Mating Area						Crimp		Fully Insulated										Butt Splice Individual Openings Inline											2

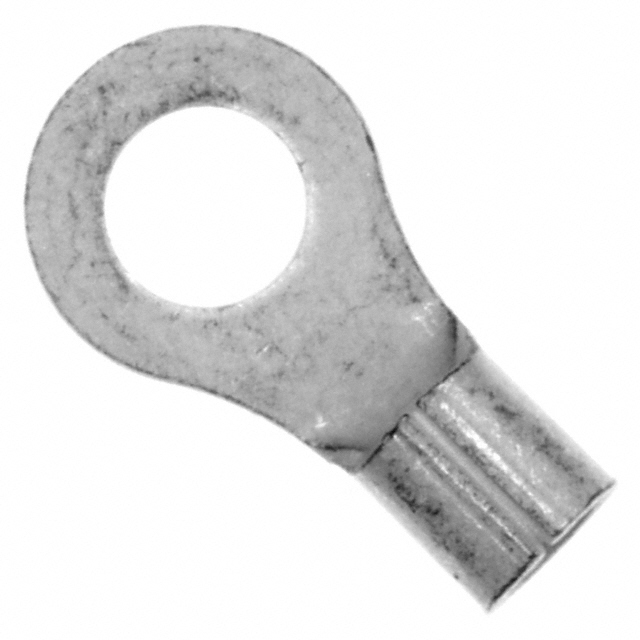

TE Connectivity Raychem Cable Protection 324955								Brazed Seam Serrated Termination	8 Stud		0.59 in	Free Hanging (In-Line)	Copper	Crimp	Tin	Non-Insulated										Circular		7.92 mm	0.312 in					0.031 in	0.79 mm	14.99 mm
