PTEA415050 Series

15-A, 48-V Input, 5-V Output, Isolated, 1/8th Brick DC/DC Converter

Catalog

15-A, 48-V Input, 5-V Output, Isolated, 1/8th Brick DC/DC Converter

Part	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Voltage - Output 1	Features	Voltage - Input (Min) [Min]	Voltage - Isolation	Number of Outputs	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]
Texas Instruments PTEA415050N2AD	91 %	22.9 mm	0.52 "	56.4 mm	0.9 "	2.22 in	13.2 mm	ITE (Commercial)	5 V	Remote On/Off UVLO	36 V	1.5 kV	1	Through Hole	75 V	1/8 Brick 8-DIP Module	Isolated Module	85 °C	-40 °C	75 W	15 A

Catalog

15-A, 48-V Input, 5-V Output, Isolated, 1/8th Brick DC/DC Converter

Key Features

• 15-A Output Current RatingInput Voltage Range: 36 V to 75 V91% Efficiency1500 VDCIsolationOn/Off ControlOvercurrent ProtectionDifferential Remote SenseAdjustable Output VoltageOutput Overvoltage ProtectionOver-Temperature ShutdownUndervoltage LockoutStandard 1/8-Brick FootprintUL Safety Agency Approval15-A Output Current RatingInput Voltage Range: 36 V to 75 V91% Efficiency1500 VDCIsolationOn/Off ControlOvercurrent ProtectionDifferential Remote SenseAdjustable Output VoltageOutput Overvoltage ProtectionOver-Temperature ShutdownUndervoltage LockoutStandard 1/8-Brick FootprintUL Safety Agency Approval

Description

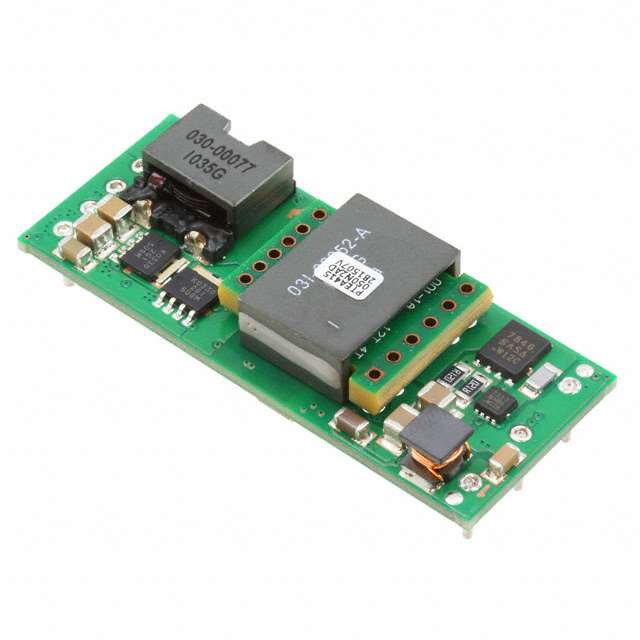

The PTEA415050 power module is a 5-V, single-output, isolated DC/DC converter, housed in an industry standard one-eighth brick package. This module is rated up to 75 W with a maximum load current of 15 A. The PTEA415050 operates from a standard 48-V telecom central office (CO) supply and occupies less than 2.0 in2of PCB area. The modules offer OEMs a compact and flexible high-output power source in an industry standard footprint. They are suitable for distributed power applications in both telecom and computing environments, and may be used for intermediate bus converter architectures. Features include a remote On/Off control with optional logic polarity, an undervoltage lockout (UVLO), a differential remote sense, and an industry standard output voltage adjustment using an external resistor. Protection features include output overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (OTP). The module is fully integrated for stand-alone operation, and requires no additional components. The PTEA415050 power module is a 5-V, single-output, isolated DC/DC converter, housed in an industry standard one-eighth brick package. This module is rated up to 75 W with a maximum load current of 15 A. The PTEA415050 operates from a standard 48-V telecom central office (CO) supply and occupies less than 2.0 in2of PCB area. The modules offer OEMs a compact and flexible high-output power source in an industry standard footprint. They are suitable for distributed power applications in both telecom and computing environments, and may be used for intermediate bus converter architectures. Features include a remote On/Off control with optional logic polarity, an undervoltage lockout (UVLO), a differential remote sense, and an industry standard output voltage adjustment using an external resistor. Protection features include output overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown (OTP). The module is fully integrated for stand-alone operation, and requires no additional components.
