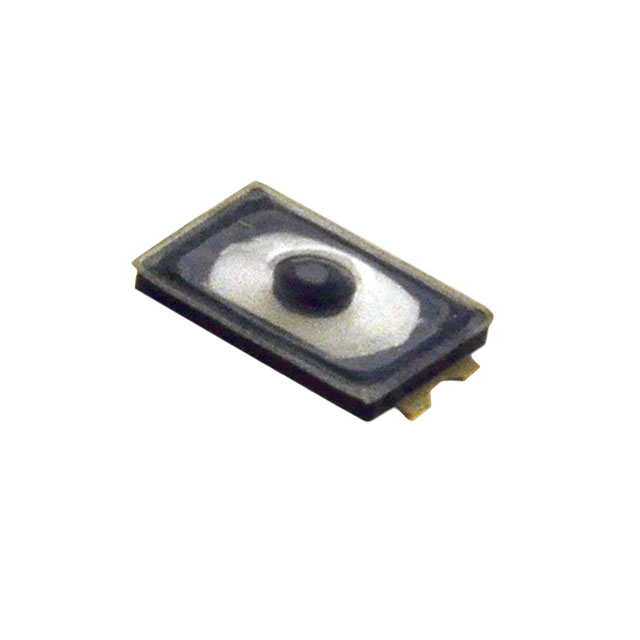

TL3780 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCH, 0.05A, 12VDC, 330GF, SMD ROHS COMPLIANT: YES
| Part | Contact Rating @ Voltage | Actuator Type | Actuator Orientation | Outline [y] | Outline [x] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Switch Function | Termination Style | Operating Force | Actuator Height off PCB, Vertical [z] | Illumination | Switch Travel | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.05 A 12 VDC | Standard | Top Actuated | 2 mm | 3 mm | 85 °C | -40 C | Surface Mount | SPST-NO | Off-Mom | Gull Wing | 330 gf | 0.6 mm | Non-Illuminated | ||
 E-Switch | 0.05 A 12 VDC | Standard | Top Actuated | 2 mm | 3 mm | 85 °C | -40 C | Surface Mount | SPST-NO | Off-Mom | Gull Wing | 240 gf | 0.6 mm | Non-Illuminated | 0.13 mm | 500000 Cycles |
