ESDCAN27YPAFH Series

27V, 230W, Automotive Transient Voltage Suppressor

Catalog

27V, 230W, Automotive Transient Voltage Suppressor

Part	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Power Line Protection	Applications	Power - Peak Pulse	Package / Case	Mounting Type	Voltage - Breakdown (Min) [Min]	Type	Capacitance @ Frequency [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Qualification	Unidirectional Channels	Grade	Operating Temperature [Min]	Operating Temperature [Max]

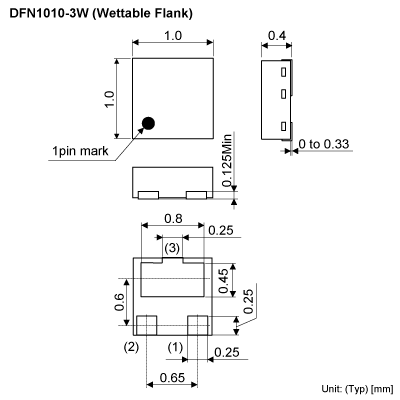

Rohm Semiconductor ESDCAN27YPAFHTRB	5.8 A	DFN1010-3W	27 V		CAN	230 W	3-XFDFN	Surface Mount	28 V	Steering (Rail to Rail)	3.5 pF	41.5 V	AEC-Q101	3	Automotive	-55 °C	150 °C

Catalog

27V, 230W, Automotive Transient Voltage Suppressor

Description

ESDCAN27YPAFH is a TVS Diode which is ideal for CAN-FD / CAN-XL, CAN, and FlexRay. This high surge resistance provide superior protection. This product complies with automotive qualified (AEC-Q101, AEC-Q006 Qualified).
