AON72 Series

Manufacturer: Alpha & Omega Semiconductor Inc.

Catalog

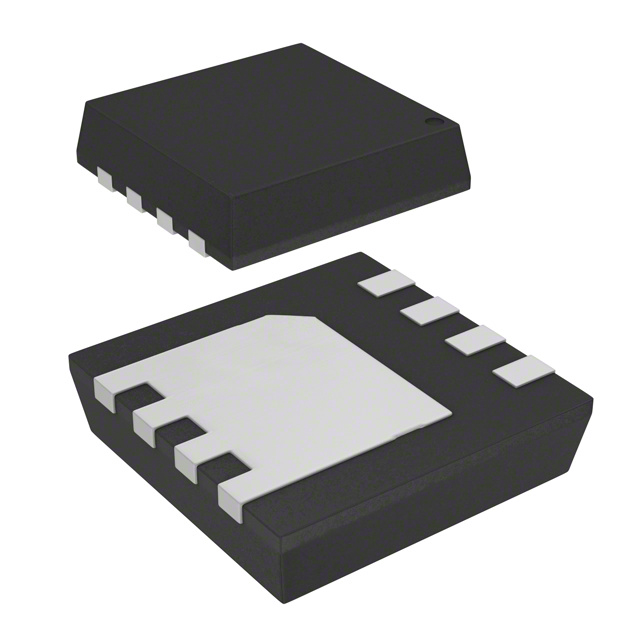

MOSFET N-CH 30V 20A/40A 8DFN

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	FET Type	Technology	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]
Alpha & Omega Semiconductor Inc. AON7202L	8-DFN-EP (3x3)	150 °C	-55 °C	Surface Mount	8-PowerVDFN	30 V	20 A 40 A	3.1 W	36 W	2.3 V	20 V	4.5 V 10 V	5 mOhm	N-Channel	MOSFET (Metal Oxide)
Alpha & Omega Semiconductor Inc. AON7232	8-DFN-EP (3.3x3.3)	150 °C	-55 °C	Surface Mount	8-PowerWDFN	100 V	37 A			2.5 V	20 V	4.5 V 10 V	13.5 mOhm	N-Channel	MOSFET (Metal Oxide)	1770 pF	39 W	40 nC

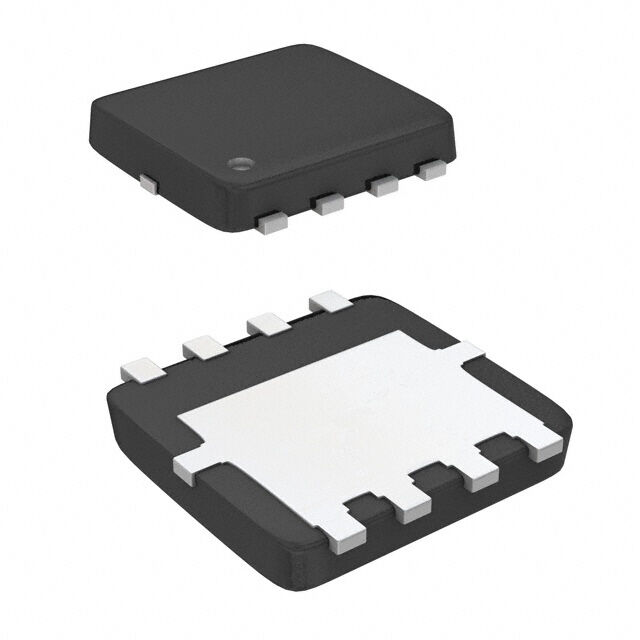

Alpha & Omega Semiconductor Inc. AON7296	8-DFN-EP (3x3)	150 °C	-55 °C	Surface Mount	8-PowerVDFN	100 V		3.1 W 20.8 W		2.8 V	20 V	4.5 V 10 V	66 mOhm	N-Channel	MOSFET (Metal Oxide)	415 pF		12 nC
Alpha & Omega Semiconductor Inc. AON7242	8-DFN-EP (3.3x3.3)	150 °C	-55 °C	Surface Mount	8-PowerWDFN	40 V	30 A 50 A	6.2 W 83 W		2.3 V	20 V	4.5 V 10 V	3.9 mOhm	N-Channel	MOSFET (Metal Oxide)			32 nC	2365 pF
Alpha & Omega Semiconductor Inc. AON7200L	8-DFN-EP (3x3)	150 °C	-55 °C	Surface Mount	8-PowerVDFN	30 V	15.8 A 40 A			2.4 V	20 V	4.5 V 10 V	8 mOhm	N-Channel	MOSFET (Metal Oxide)			20 nC	1300 pF
Alpha & Omega Semiconductor Inc. AON7202	8-DFN-EP (3x3)	150 °C	-55 °C	Surface Mount	8-PowerVDFN	30 V	20 A 40 A	3.1 W	36 W	2.3 V	20 V	4.5 V 10 V	5 mOhm	N-Channel	MOSFET (Metal Oxide)
