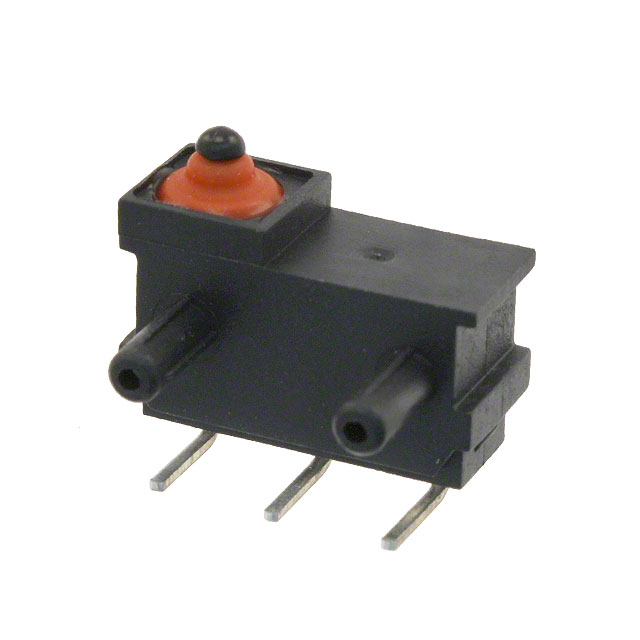

ZD30S Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACT SPDT 100MA 125V
| Part | Termination Style | Actuator Type | Operating Position | Operating Position | Differential Travel | Differential Travel | Pretravel | Pretravel | Circuit | Mechanical Life | Release Force | Features | Operating Temperature [Max] | Operating Temperature [Min] | Overtravel [custom] | Overtravel [custom] | Switch Function | Voltage Rating - DC | Ingress Protection | Operating Force | Electrical Life | Voltage Rating - AC | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | PC Pin | Round (Pin Plunger) | 0.27 in | 6.85 mm | 0.2 mm | 0.008 in | 0.8 mm | 0.03 " | SPDT | 500000 Cycles | 13 gf | Support Posts | 120 °C | -40 C | 0.03 " | 0.76 mm | On-Mom | 12 V | IP00 | 130 gf | 6000 Cycles | 125 V | 3 A 100 mA | Right Angle Through Hole |
