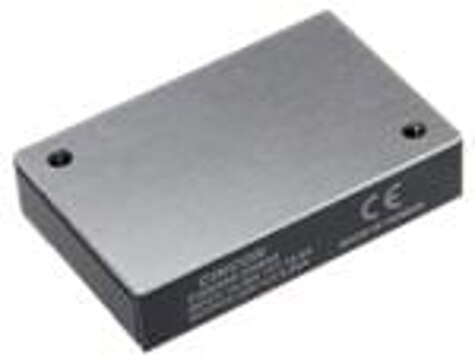

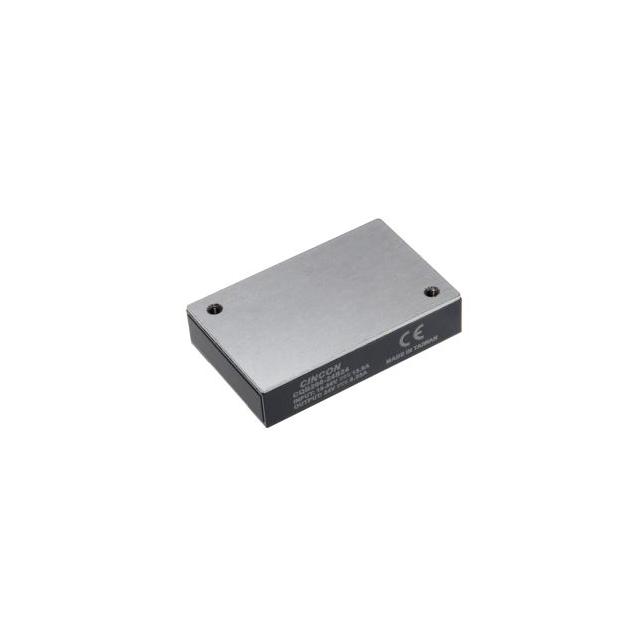

CQB200 Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 200W 18-36VIN 28VOUT 7.14A
| Part | Voltage - Isolation | Number of Outputs | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Output 1 | Mounting Type | Package / Case | Power (Watts) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Standard Number | Approval Agency | Applications | Voltage - Input (Max) [Max] | Supplier Device Package | Features | Efficiency | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 2250 VDC | 1 | 18 V | 105 C | -40 °C | 7.14 A | 28 V | Through Hole | Quarter Brick | 200 Watts | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | Isolated Module | 62368-1 | CE | ITE (Commercial) | 36 V | Quarter Brick | Adjustable Output Baseplate Remote On/Off Remote Sense | 92 % | Active High Enable |
