CF280 Series

Manufacturer: Igus

Catalog

CABLE 8COND 16/18/22AWG FEET

Part	Shield Material	Shield Coverage	Voltage	Ratings	Wire Gauge	Number of Conductors [custom]	Conductor Material	Conductor Insulation	Conductor Insulation	Cable Type	Usage	Shield Type	Features	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Jacket (Insulation) Material	Number of Conductors	Wire Gauge	Number of Conductors [custom]
Igus CF280-UL-H101-15-04-D	Copper Tinned	80 %	1 kV	UL Style 21223	16 AWG 18 AWG 22 AWG	8	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.512 in	13.01 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)
Igus CF280-UL-H203-25-04-D	Copper Tinned	80 %	1 kV	UL Style 20233			Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.531 in	13.49 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)	7	14.5 AWG 17 AWG

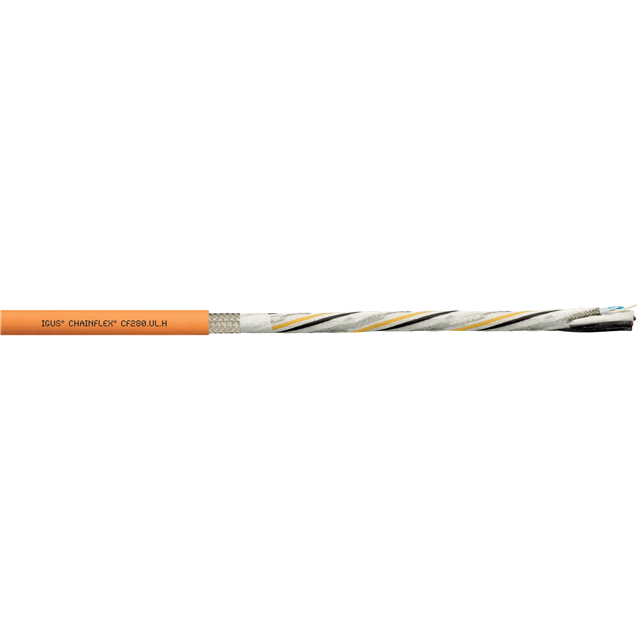

Igus CF280-UL-H300-03-04-D	Copper Tinned	80 %	1 kV	UL Style 20233		10	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.394 in	10.01 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)		22 AWG 26 AWG
Igus CF280-UL-H200-25-07-D	Copper Tinned	80 %	1 kV	UL Style 20233			Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.787 "	19.99 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)	9	14.5 AWG 18 AWG
Igus CF280-UL-H206-60-04-D	Copper Tinned	80 %	1 kV	UL Style 20233	10 AWG 16 AWG 18 AWG		Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.748 in	19 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)	9
Igus CF280-UL-H206-40-04-D	Copper Tinned	80 %	1 kV	UL Style 20233	12 AWG 16 AWG 18 AWG		Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.689 in	17.5 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)	9
Igus CF280-UL-H501-15-04-D	Copper Tinned	80 %	1 kV	UL Style 21223	16 AWG 18 AWG 24 AWG 26 AWG	8	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.591 "	15.01 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)			2
Igus CF280-UL-H102-40-04-D	Copper Tinned	80 %	1 kV	UL Style 21223	12 AWG 17 AWG 22 AWG	8	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.65 "	16.51 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)
Igus CF280-UL-H101-10-04-D	Copper Tinned	80 %	1 kV	UL Style 21223	17 AWG 18 AWG 22 AWG	8	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Industrial Servo Motor	Braid	Abrasion Resistant Flame Retardant Oil Resistant	Orange	0.472 "	11.99 mm	Enter Number of Feet in Order Quantity	Polyurethane (PU)
