PPTC362 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 72POS 0.1 TIN PCB

Part	Insulation Material	Contact Shape	Contact Material	Connector Type	Termination	Contact Type	Material Flammability Rating	Mounting Type	Fastening Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish - Post	Number of Positions	Voltage Rating	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Insulation Height [z]

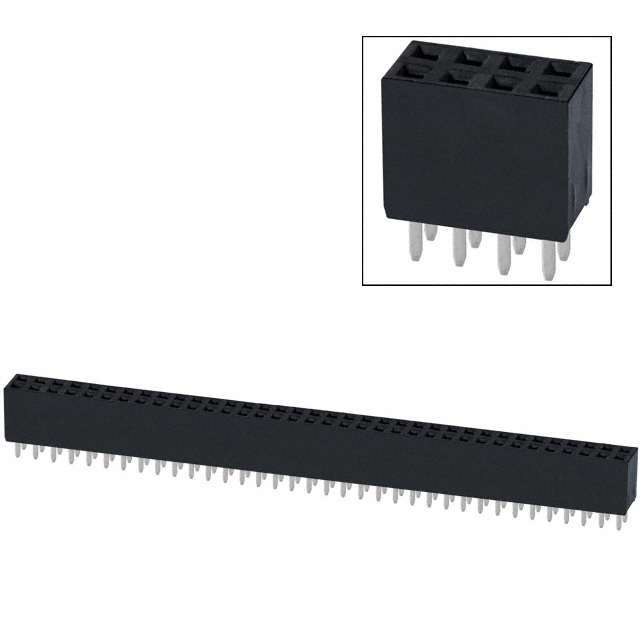

Sullins Connector Solutions PPTC362LFBN-RC	Polyester	Square	Phosphor Bronze	Header	Solder	Female Socket	UL94 V-0	Through Hole	Push-Pull	0.335 "	8.51 mm	0.1 in	2.54 mm	All	Tin	72	250 V	2	0.1 "	2.54 mm	Black	0.126 "	3.2 mm	-40 C	105 ░C	3 A

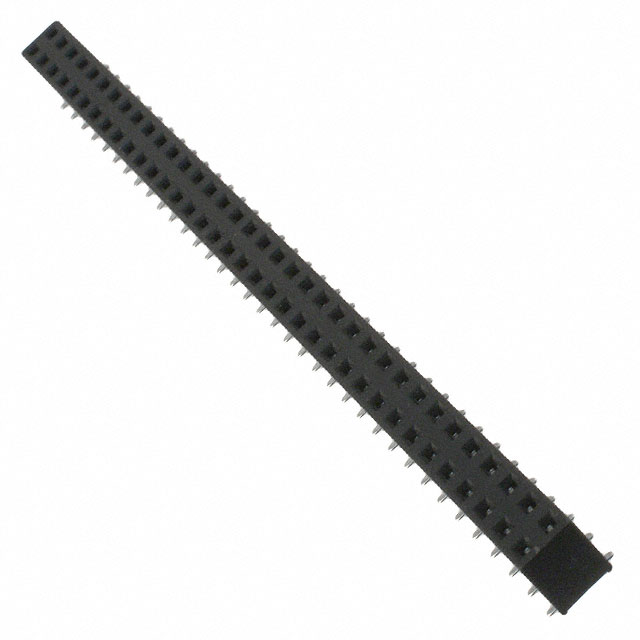

Sullins Connector Solutions PPTC362KFMS	Polyester	Square	Phosphor Bronze	Header	Solder	Female Socket	UL94 V-0	Surface Mount	Push-Pull		7.6 mm	0.1 in	2.54 mm	All	Tin	72	250 V	2	0.1 "	2.54 mm	Black			-40 C	125 °C	3 A	0.299 "

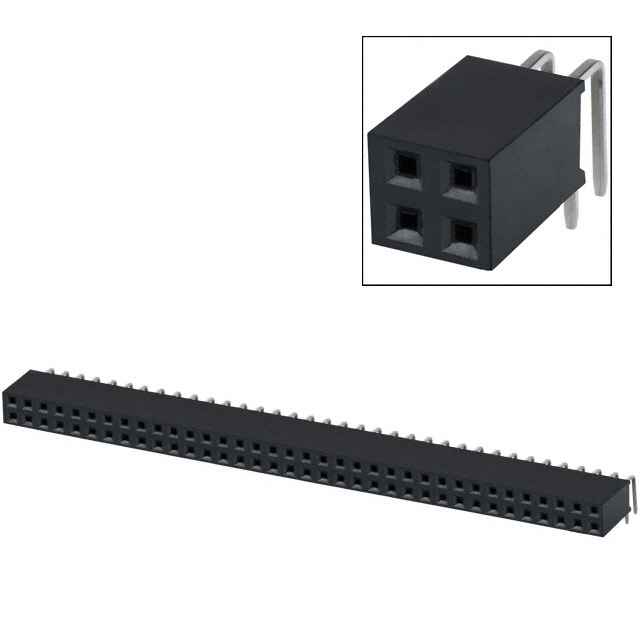

Sullins Connector Solutions PPTC362LJBN-RC	Polyester	Square	Phosphor Bronze	Header	Solder	Female Socket	UL94 V-0	Right Angle Through Hole	Push-Pull			0.1 in	2.54 mm	All	Tin	72	250 V	2	0.1 "	2.54 mm	Black			-40 C	105 ░C	3 A	0.2 in	0.124 in	3.15 mm	5.08 mm
Sullins Connector Solutions PPTC362LJBN	Polyester	Square	Phosphor Bronze	Header	Solder	Female Socket	UL94 V-0	Right Angle Through Hole	Push-Pull			0.1 in	2.54 mm	All	Tin	72	250 V	2	0.1 "	2.54 mm	Black			-40 C	105 ░C	3 A	0.2 in	0.124 in	3.15 mm	5.08 mm
Sullins Connector Solutions PPTC362LFBN	Polyester	Square	Phosphor Bronze	Header	Solder	Female Socket	UL94 V-0	Through Hole	Push-Pull	0.335 "	8.51 mm	0.1 in	2.54 mm	All	Tin	72	250 V	2	0.1 "	2.54 mm	Black	0.126 "	3.2 mm	-40 C	105 ░C	3 A
