345-074 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 74POS 0.100

...

Part	Contact Finish	Mounting Type	Number of Positions	Gender	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Color	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature	Number of Rows	Termination Rows	Contact Type	Contact Material	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-074-524-807	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy
EDAC Inc. 345-074-555-803	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	2	2	Cantilever	Copper Alloy	Card Extender	2.95 mm	0.116 in
EDAC Inc. 345-074-500-558	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy	Card Guides

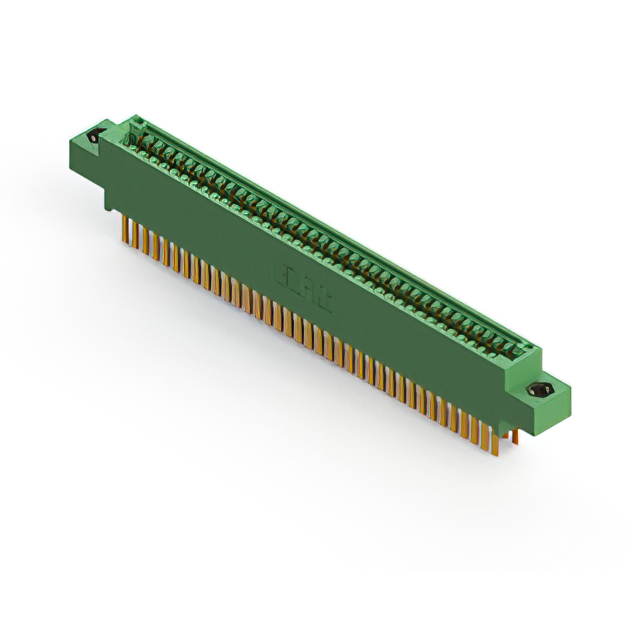

EDAC Inc. 345-074-544-808	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy

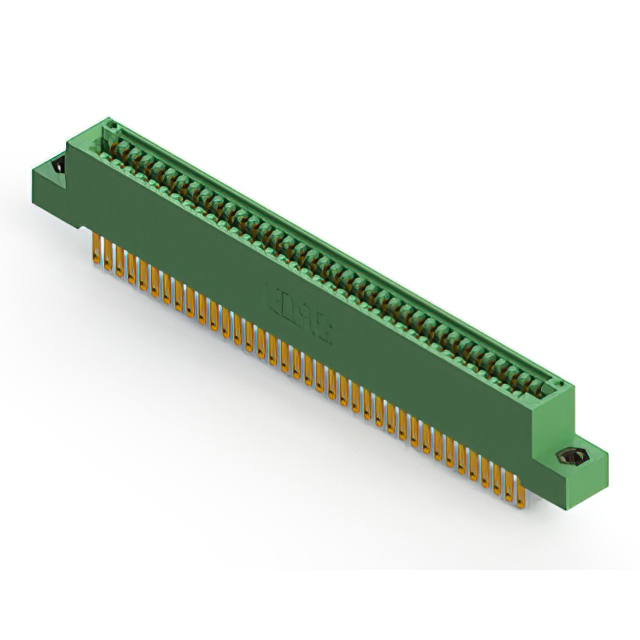

EDAC Inc. 345-074-500-207	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	2	2	Cantilever	Copper Alloy

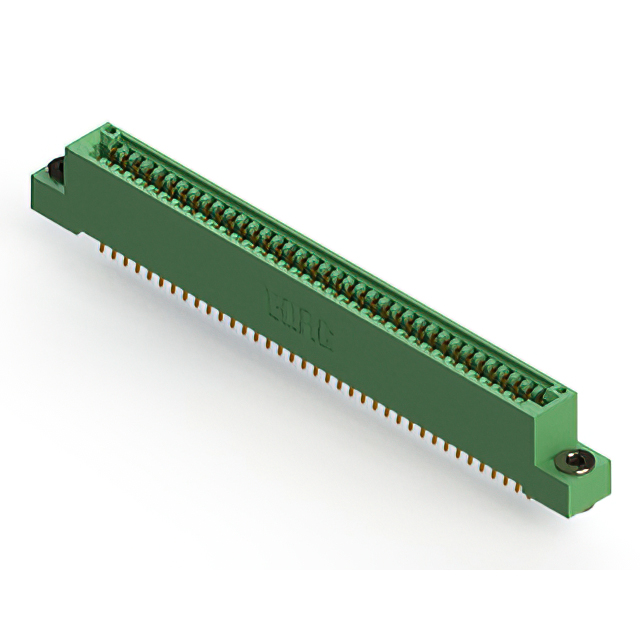

EDAC Inc. 345-074-556-203	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Floating Bobbin Flush Mount	2	2	Cantilever	Copper Alloy	Card Extender	2.95 mm	0.116 in

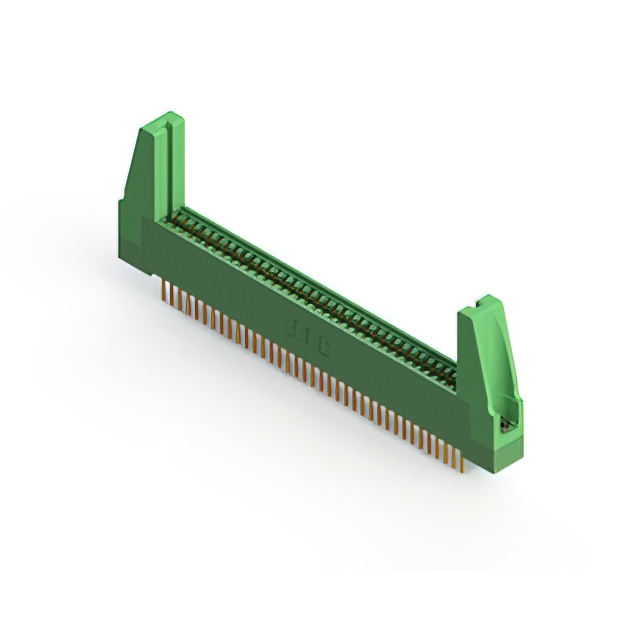

EDAC Inc. 345-074-541-288	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening	2	2	Cantilever	Copper Alloy	Card Guides

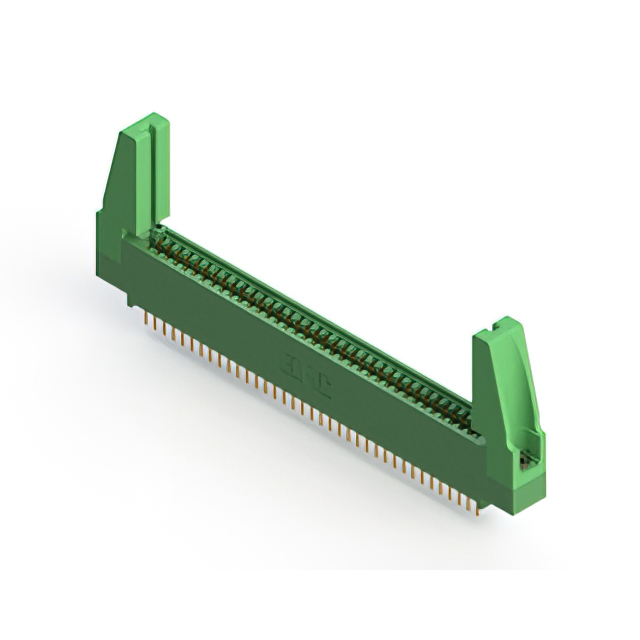

EDAC Inc. 345-074-524-588	Gold	Through Hole	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy	Card Guides
EDAC Inc. 345-074-560-207	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	2	2	Cantilever	Copper Alloy	Card Extender

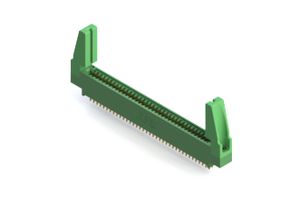

EDAC Inc. 345-074-556-888	Gold	Board Edge Straddle Mount	74	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	2.54 mm	0.1 in	37	37	37	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	2	2	Cantilever	Copper Alloy
