AA90 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 90W

Part	Form	Standard Number	Efficiency	Approval Agency	Applications	Power (Watts)	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Input Connector	Output Connector	Output Connector [diameter]	Output Connector [x]	No Load Power Consumption	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Polarization	Input Type
Phihong USA AA90U-240B-R	Desktop (Class I)	62368-1	Level VI	CE cUL cULus UKCA	ITE (Commercial)	90 W	International	70 °C	-10 °C	5.57 in	62.5 mm	141.5 mm	33 mm	1.3 in	2.46 in	3.75 A	IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	124 mW	1.5 m	59 in	264 VAC	90 VAC	24 V	Positive Center	Cord (Sold Separately)
Phihong USA AA90U-120B-R	Desktop (Class I)	62368-1	Level VI	CE cUL cULus UKCA	ITE (Commercial)	90 W	International	70 °C	-10 °C	5.57 in	62.5 mm	141.5 mm	33 mm	1.3 in	2.46 in	7.5 A	IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	85 mW	1.2 m	47 in	264 VAC	90 VAC	12 V	Positive Center	Cord (Sold Separately)
Phihong USA AA90U-540B-R	Desktop (Class I)	62368-1	Level VI	CE cUL cULus UKCA	ITE (Commercial)	90 W	International	70 °C	-10 °C	5.57 in	62.5 mm	141.5 mm	33 mm	1.3 in	2.46 in	1.67 A	IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	150 mW	1.5 m	59 in	264 VAC	90 VAC	54 V	Positive Center	Cord (Sold Separately)

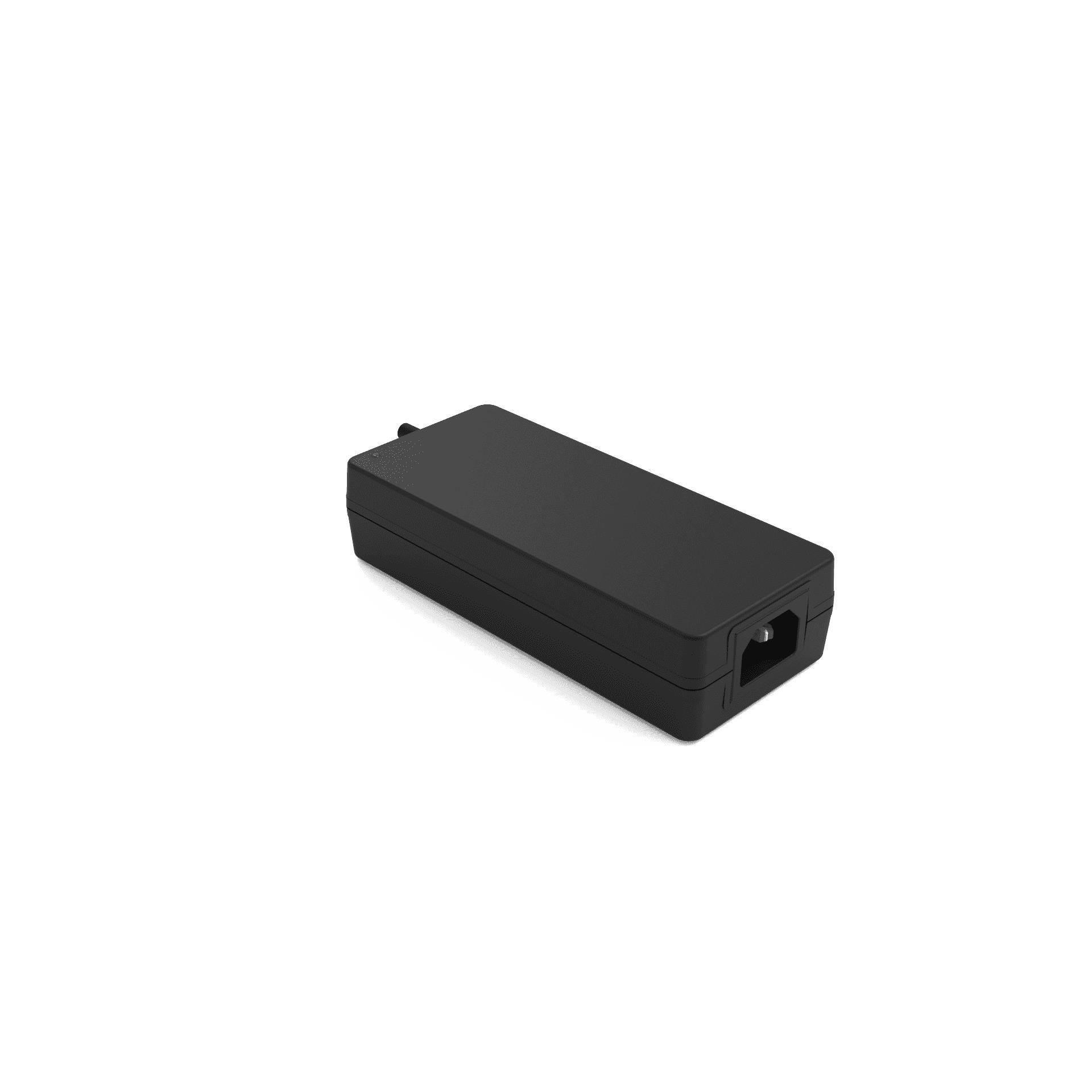

Phihong USA AA90U-480B-R	Desktop (Class I)	62368-1	Level VI	CE cUL cULus UKCA	ITE (Commercial)	90 W	International	70 °C	-10 °C	5.57 in	62.5 mm	141.5 mm	33 mm	1.3 in	2.46 in	1.875 A	IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	137 mW	1.5 m	59 in	264 VAC	90 VAC	48 V	Positive Center	Cord (Sold Separately)
Phihong USA AA90U-190B-R	Desktop (Class I)	62368-1	Level VI	CE cUL cULus UKCA	ITE (Commercial)	90 W	International	70 °C	-10 °C	5.57 in	62.5 mm	141.5 mm	33 mm	1.3 in	2.46 in		IEC 320-C14	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	115 mW	1.2 m	47 in	264 VAC	90 VAC	19 V	Positive Center	Cord (Sold Separately)
