917787 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

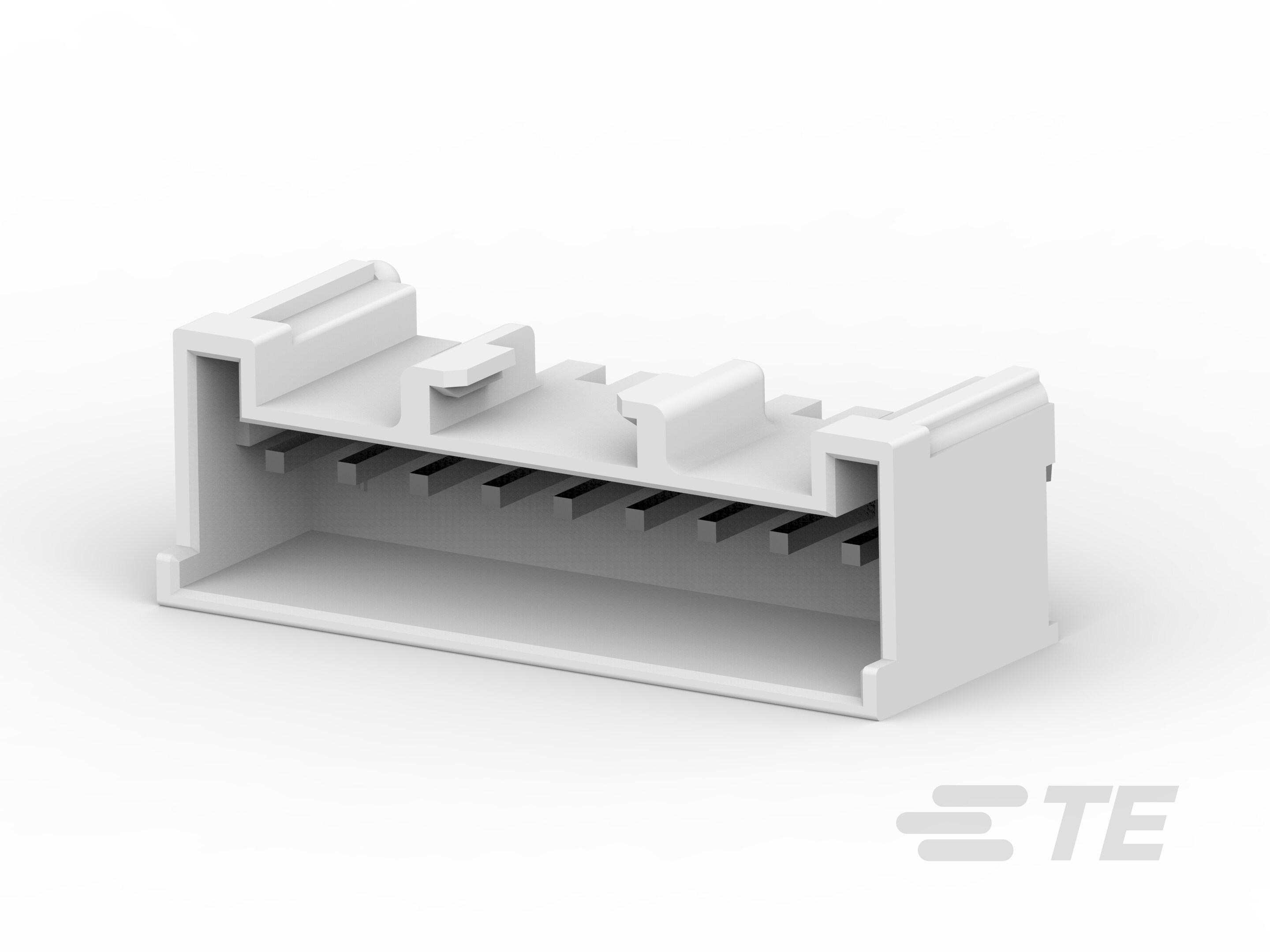

CONN SHROUDED HEADER HDR 9 POS 2.5MM SOLDER ST THRU-HOLE BAG
| Part | Mated Stacking Heights | Applications | Features | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Contact Material | Insulation Material | Shrouding | Mounting Type | Contact Finish - Post | Contact Shape | Material Flammability Rating | Connector Type | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Contact Type | Overall Contact Length | Overall Contact Length | Termination | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Style | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions Loaded | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 13.7 mm | General Purpose | Board Guide | 3 A | 0.126 " | 3.2 mm | Copper Alloy | Glass Filled Nylon 6/6 Polyamide (PA66) | Shrouded - 4 Wall | Through Hole | Tin | Square | UL94 V-0 | Header | 50 V | 4.7 mm | 0.185 in | Male Pin | 0.41 in | 10.41 mm | Kinked Pin Solder | 2.5 mm | 0.098 in | 9.8 mm | 0.386 in | Board to Cable/Wire | 9 | 1 | -30 ░C | 105 ░C | Latch Holder | All | Natural |
