745498 Series

Catalog

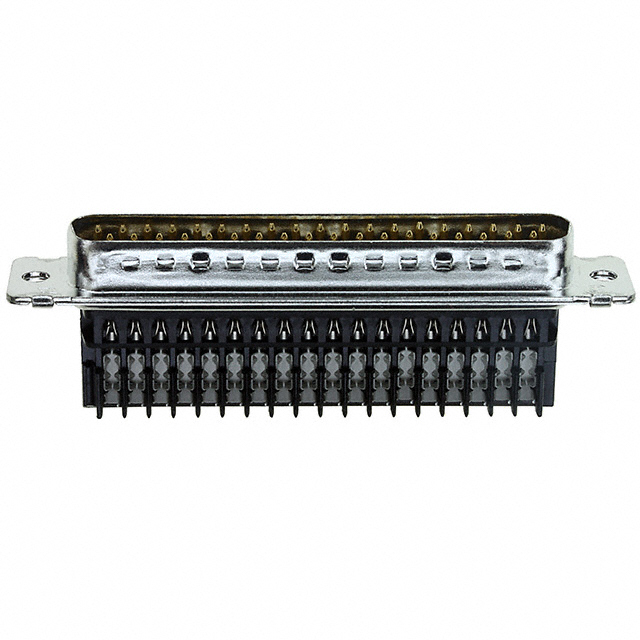

CONN D-SUB PLUG 37POS IDC

Part	Wire Gauge [Min]	Wire Gauge [Max]	Dielectric Material	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Material Flammability Rating	Shell Size, Connector Layout	Shell Size, Connector Layout	Termination	Contact Finish	Flange Feature	Connector Style	Connector Type	Current Rating (Amps)	Contact Type	Number of Positions	Mounting Type	Features	Number of Rows [custom]	Contact Finish Thickness
TE Connectivity AMP Connectors 745498-1	26 AWG	30 AWG	Thermoplastic Glass Filled	Phosphor Bronze	250 V	-55 C	105 ░C	Black	UL94 V-0	4	DC C	Discrete Wire IDC	Gold	Housing/Shell (Unthreaded)	D-Sub	Plug Male Pins	Varies by Wire Gauge	Signal	37	Free Hanging (In-Line)	Grounding Indents	2
TE Connectivity AMP Connectors 745498-2	22 AWG	26 AWG	Thermoplastic Glass Filled	Phosphor Bronze	250 V	-55 C	105 ░C	Black	UL94 V-0	4	DC C	Discrete Wire IDC	Gold	Housing/Shell (Unthreaded)	D-Sub	Plug Male Pins	Varies by Wire Gauge	Signal	37	Free Hanging (In-Line)	Grounding Indents	2	Flash
