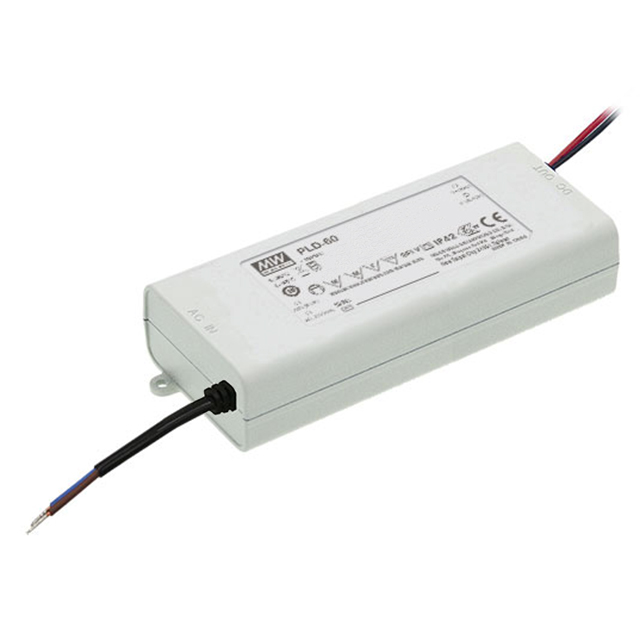

PLD-60 Series

Catalog

LED DRVR CC AC/DC 50-86V 700MA

Part	Mounting Type	Efficiency	Approval Agency	Voltage - Input (Min) [Min]	Topology	Voltage - Input (Max) [Max]	Type	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Termination Style	Power (Watts)	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. PLD-60-700B	Chassis Mount	87 %	CB CE ENEC	180 VAC	AC DC Converter	295 VAC	Constant Current	700 mA	3750 VDC	1	Wire Leads	60 W	IP42	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	OTP SCP	45 °C	-30 ░C
MEAN WELL USA Inc. PLD-60-500B	Chassis Mount	88 %	CB CE ENEC	180 VAC	AC DC Converter	295 VAC	Constant Current	500 mA	3750 VDC	1	Wire Leads	54 W	IP42	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	OTP SCP	45 °C	-30 ░C	108 V	70 V
MEAN WELL USA Inc. PLD-60-1400B	Chassis Mount	86 %	CB CE ENEC	180 VAC	AC DC Converter	295 VAC	Constant Current	1.4 A	3750 VDC	1	Wire Leads	60 W	IP42	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	OTP SCP	45 °C	-30 ░C	43 V	25 V
MEAN WELL USA Inc. PLD-60-2000B	Chassis Mount	86 %	CB CE ENEC	180 VAC	AC DC Converter	295 VAC	Constant Current	2 A	3750 VDC	1	Wire Leads	60 W	IP42	5.04 "	2.36 "	1.24 "	31.5 mm	60 mm	128 mm	OTP SCP	45 °C	-30 ░C
