5322FL Series
Manufacturer: Belden Inc.
Beta
⌘K

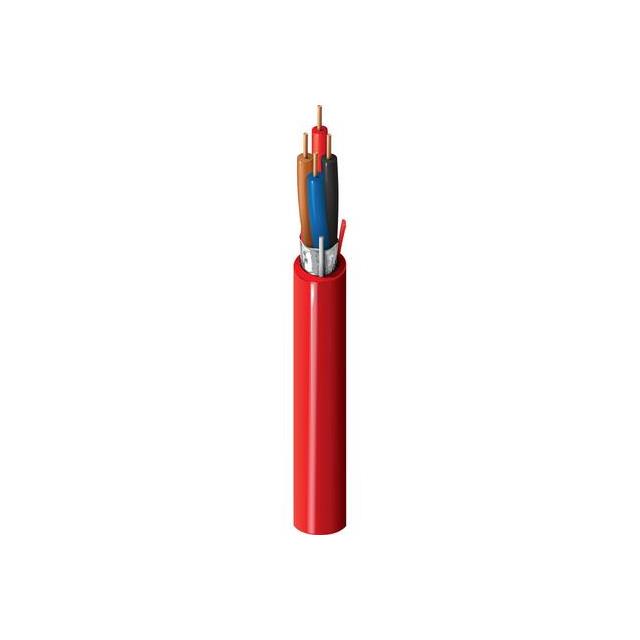

CABLE 4COND 18AWG RED SHLD
| Part | Shield Coverage | Shield Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Ratings | Jacket Color | Features | Number of Conductors | Length | Length | Usage | Conductor Strand | Shield Type | Jacket (Insulation) Material | Conductor Material | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 300 VDC | 0.017 " | 0.432 mm | Multi-Conductor | UL Style FPLR | Red | Drain Wire Rip Cord | 4 | 304.8 m | 1000 ft | Alarm Safety | Solid | Foil | Poly-Vinyl Chloride (PVC) Riser | Copper Bare | 18 AWG | 0.17 in | 4.32 mm | Polypropylene (PP) |
