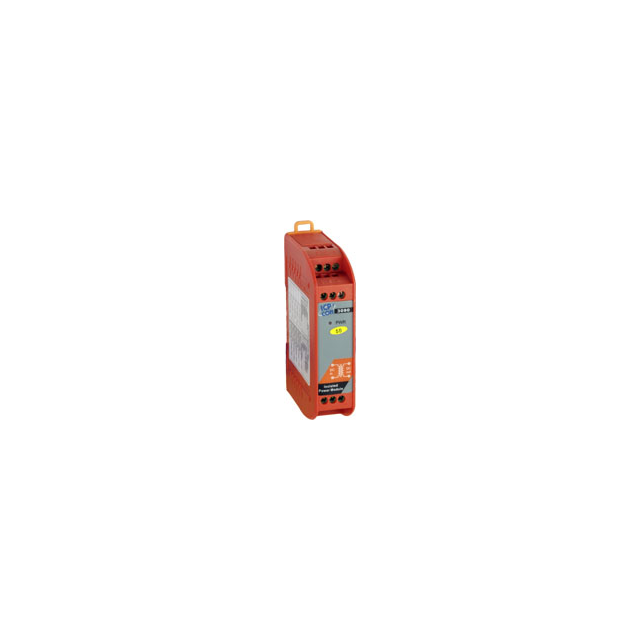

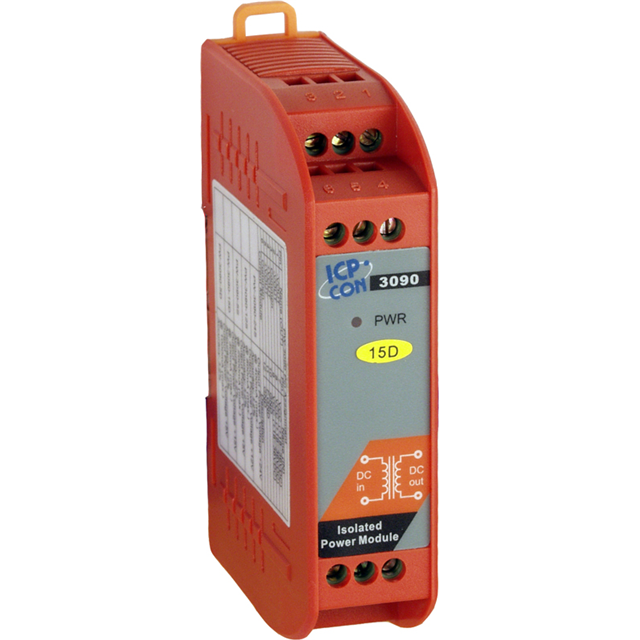

PW-3090 Series
Manufacturer: ICP DAS USA INC
Beta
⌘K
DC/DC DIN RAIL SUPPLY 24V 9.6W
| Part | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | DC Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | DC Voltage - Input (Min) [Min] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Voltage - Output 1 | Efficiency | Power (Watts) | Input Type | Voltage - Isolation | Features | Number of Outputs | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ICP DAS USA INC | 70 mm | 114 mm | 2.76 " | 4.49 in | 0.98 in | 25 mm | 36 V | 400 mA | 18 V | CE FCC | -25 °C | 70 °C | ITE (Commercial) | 24 V | 83 % | 9.6 W | DC | 1000 V | Adjustable Output | 1 | ||
ICP DAS USA INC | 70 mm | 114 mm | 2.76 " | 4.49 in | 0.98 in | 25 mm | 36 V | 2 A | 18 V | CE FCC | -25 °C | 70 °C | ITE (Commercial) | 5 V | 83 % | 10 W | DC | 1000 V | Adjustable Output | 1 | ||
ICP DAS USA INC | 70 mm | 114 mm | 2.76 " | 4.49 in | 0.98 in | 25 mm | 36 V | 18 V | CE FCC | -25 °C | 70 °C | ITE (Commercial) | 5 V | 83 % | 10 W | DC | 1000 V | Adjustable Output | 2 | 1 A | -5 V | |
 ICP DAS USA INC | 70 mm | 114 mm | 2.76 " | 4.49 in | 0.98 in | 25 mm | 36 V | 0.3 A | 18 V | CE FCC | -25 °C | 70 °C | ITE (Commercial) | 15 V | 83 % | 9 W | DC | 1000 V | Adjustable Output | 2 | -15 V | |
ICP DAS USA INC | 70 mm | 114 mm | 2.76 " | 4.49 in | 0.98 in | 25 mm | 36 V | 0.8 A | 18 V | CE FCC | -25 °C | 70 °C | ITE (Commercial) | 12 V | 83 % | 9.6 W | DC | 1000 V | Adjustable Output | 1 | ||
ICP DAS USA INC | 70 mm | 114 mm | 2.76 " | 4.49 in | 0.98 in | 25 mm | 36 V | 18 V | CE FCC | -25 °C | 70 °C | ITE (Commercial) | 83 % | DC | 1000 V | Adjustable Output | 1 |
