AMPMODU IV/V Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

CONN SOCKET 28-32AWG CRIMP TIN

...

Part	Contact Termination	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Note	Color	Features	Number of Positions	Number of Rows [custom]	Connector Type	Row Spacing	Row Spacing	Insulation Material	Contact Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Fastening Type	Insulation Color	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Height
TE Connectivity AMP Connectors 167022-3	Crimp	Tin	27.5 AWG	32 AWG	Socket	78.7 µin	2 µm
TE Connectivity AMP Connectors 102387-4	Crimp							Contacts Not Included	Black	Polarizing Key	20	2	Receptacle	2.54 mm	0.1 "	Thermoplastic	Female Socket	Free Hanging (In-Line)	105 ░C	-65 ░C	0.1 "	2.54 mm

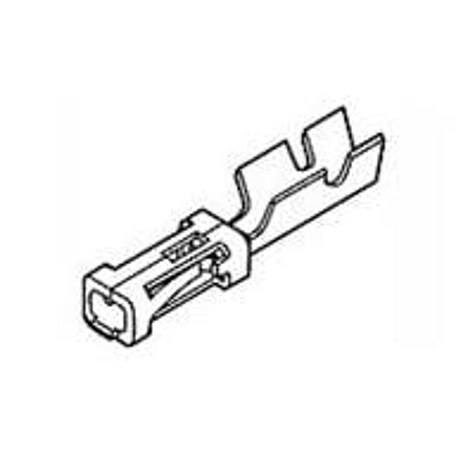

TE Connectivity AMP Connectors 87631-5	Crimp							Contacts Not Included	Black		10	2	Receptacle	2.54 mm	0.1 "	Thermoplastic	Female Socket	Free Hanging (In-Line)	105 ░C	-65 ░C	0.1 "	2.54 mm	Detent Lock
TE Connectivity AMP Connectors 1-532956-6										Guide Pin Ears	100	2	Receptacle				Female Socket	Right Angle Through Hole					Push-Pull	Black	0.115 in	2.92 mm	0.1 in	2.54 mm	Gold	Tin-Lead	All	Solder	0.76 Ám	30 Áin	0.1 "	2.54 mm	0.238 "	6.05 mm
TE Connectivity AMP Connectors 5-532955-8										Guide Pin Ears	50	2	Receptacle				Female Socket	Right Angle Through Hole					Push-Pull	Black	0.115 in	2.92 mm	0.1 in	2.54 mm	Gold	Tin	All	Solder	0.38 µm	15 µin	0.1 "	2.54 mm	0.238 "	6.05 mm

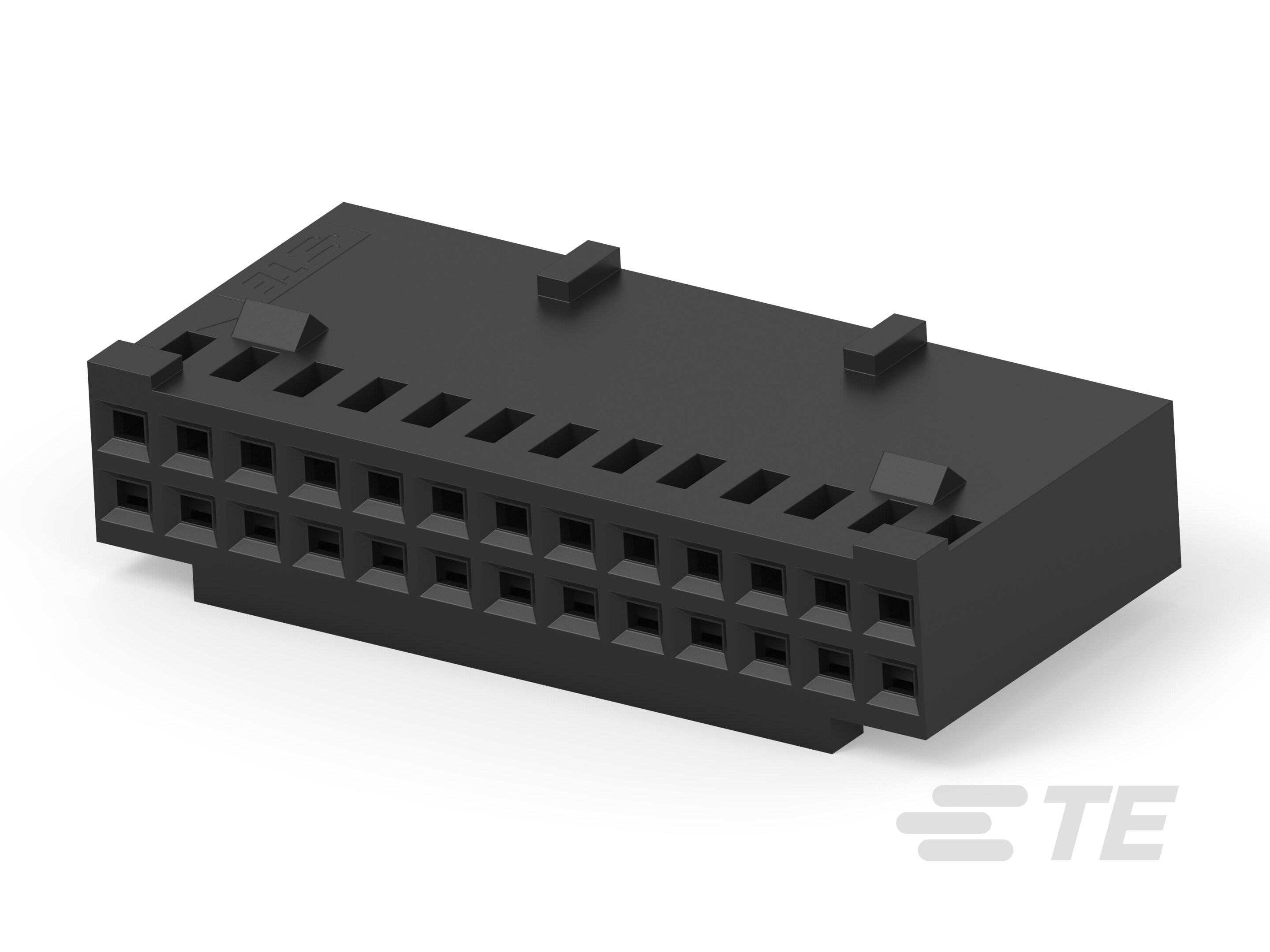

TE Connectivity AMP Connectors 2-87631-1	Crimp								Black		26	2	Receptacle	2.54 mm	0.1 "	Glass Filled Nylon Polyamide (PA)	Female Socket	Free Hanging (In-Line)	105 ░C	-65 ░C	0.1 "	2.54 mm	Detent Lock
TE Connectivity AMP Connectors 534267-8											60	2	Receptacle Bottom or Top Entry			Polyester Glass Filled	Female Socket	Through Hole					Push-Pull	Black	0.125 in	3.18 mm	0.1 in	2.54 mm	Gold	Tin-Lead	All	Solder	0.76 Ám	30 Áin	0.1 "	2.54 mm	0.265 in		3.81 Ám	Phosphor Bronze	Square	6.73 mm

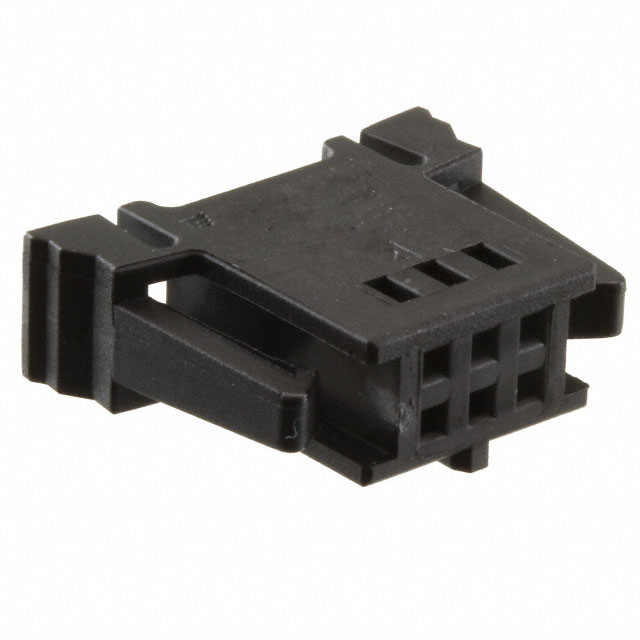

TE Connectivity AMP Connectors 1718288-6	Crimp							Contacts Not Included	Black		6	2	Receptacle	2.54 mm	0.1 "	Nylon Polyamide (PA)	Female Socket	Free Hanging (In-Line)	105 ░C	-65 ░C	0.1 "	2.54 mm	Latch Lock
TE Connectivity AMP Connectors 3-87456-8	Crimp							Contacts Not Included	Black		44	2	Receptacle	2.54 mm	0.1 "	Glass Filled Nylon Polyamide (PA)	Female Socket	Free Hanging (In-Line)	105 ░C	-65 ░C	0.1 "	2.54 mm
TE Connectivity AMP Connectors 534267-7											40	2	Receptacle Bottom or Top Entry				Female Socket	Through Hole					Push-Pull	Black	0.125 in	3.18 mm	0.1 in	2.54 mm	Gold	Tin-Lead	All	Solder	0.76 Ám	30 Áin	0.1 "	2.54 mm	0.265 in					6.73 mm
