51-428 Series
Manufacturer: EAO
Beta
⌘K

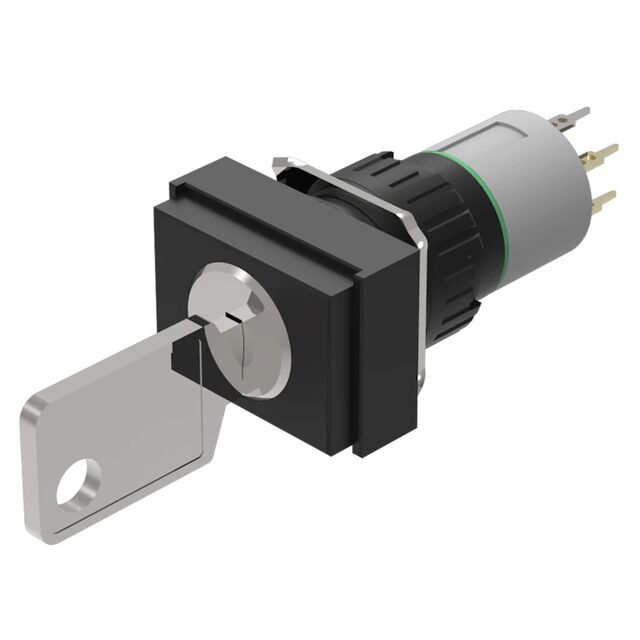

SWITCH KEYLK 2POS DPST 100MA 42V
| Part | Depth Behind Flange | Circuit | Termination Style | Panel Cutout Dimensions [diameter] | Switch Function | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Mounting Type | Number of Positions | Voltage Rating - AC | Contact Timing | Angle of Throw | Key Removable Positions | Features | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 35.5 mm | DPST-NO/NC | PC Pin Solder Lug | 16 mm | Off-Mom On-Mom | 100 mA | 55 °C | -25 °C | Flat Key | Panel Mount | 2 | 42 V | Not Specified | 42 ° | 1 | IP65 | 42 V |
