M2018BB Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Mounting Type | Voltage Rating - DC | Bushing Thread | Circuit | Panel Cutout Dimensions [diameter] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Current Rating (Amps) | Features | Switch Function | Voltage Rating - AC | Actuator Length [x] | Illumination | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | 30 V | M12 x 1 | SPDT | 12.5 mm | Solder Lug | 85 °C | -30 ░C | Standard Round with Cap | 3 A 6 A | Yellow Cap | Mom-Off-Mom | 125 V | 12.3 mm | Non-Illuminated | |

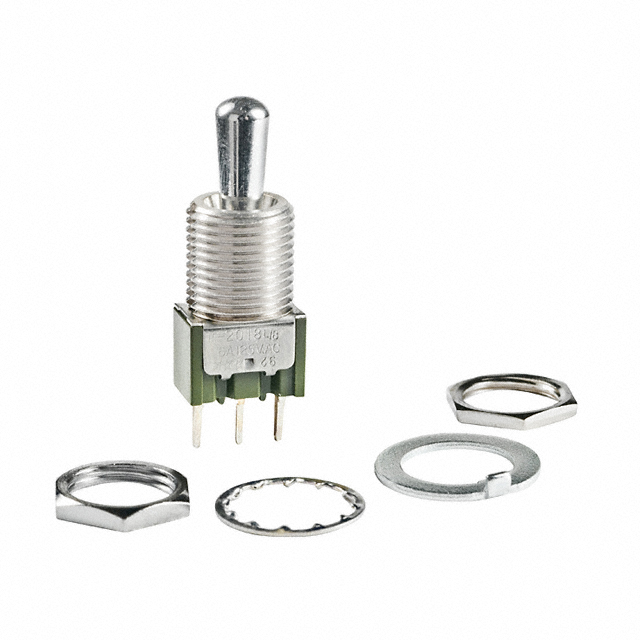

 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | 30 V | M12 x 1 | SPDT | 12.5 mm | PC Pin | 85 °C | -30 ░C | Standard Round | 3 A 6 A | Epoxy Sealed Terminals | Mom-Off-Mom | 125 V | 11.5 mm | Non-Illuminated | |

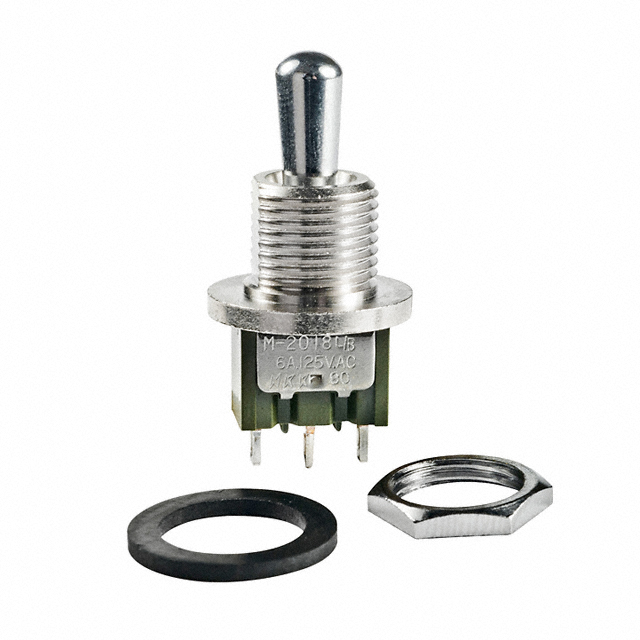

 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | 30 V | M12 x 1 | SPDT | 12.5 mm | PC Pin | 85 °C | -30 ░C | Standard Round | 3 A 6 A | Epoxy Sealed Terminals | Mom-Off-Mom | 125 V | 11.5 mm | Non-Illuminated | IP67 - Dust Tight Waterproof |
 NKK Switches | 25000 Steps | Brass Chrome Plated | Panel Mount | 30 V | M12 x 1 | SPDT | 12.5 mm | Solder Lug | 85 °C | -30 ░C | Standard Round | 3 A 6 A | Epoxy Sealed Terminals | Mom-Off-Mom | 125 V | 11.5 mm | Non-Illuminated | IP67 - Dust Tight Waterproof |
