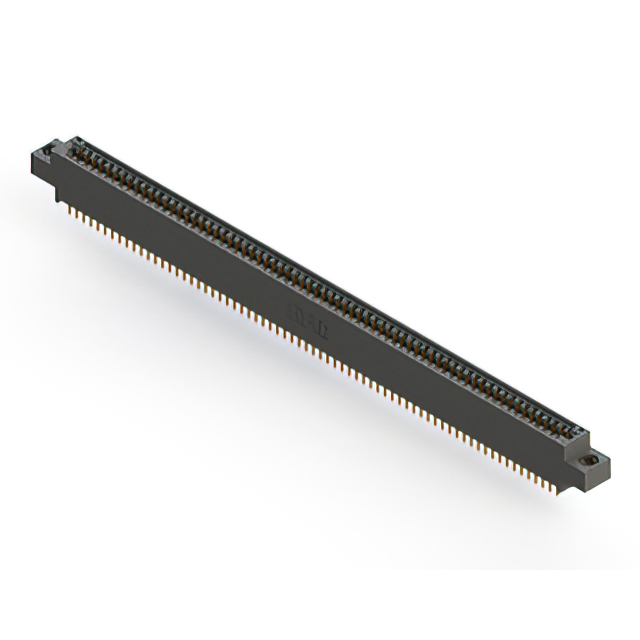

395-138 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 138POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material | Mounting Type | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Read Out | Card Thickness [Max] | Card Thickness [Min] | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Wire Wrap | Copper Alloy | Through Hole | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 138 | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Solder | Copper Alloy | Through Hole | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | 138 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Solder | Copper Alloy | Through Hole | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | 138 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Solder Eyelet(s) | Copper Alloy | Board Edge Straddle Mount | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 0.128 " | 3.25 mm | 138 | Card Extender | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Solder | Copper Alloy | Through Hole | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | 138 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Wire Wrap | Copper Alloy | Through Hole | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 138 | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Wire Wrap | Copper Alloy | Through Hole | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 138 | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Wire Wrap | Copper Alloy | Through Hole | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 0.128 " | 3.25 mm | 138 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Solder Eyelet(s) | Copper Alloy | Board Edge Straddle Mount | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 138 | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Black | -40 C | 105 ░C | Solder Eyelet(s) | Copper Alloy | Board Edge Straddle Mount | 2 | 69 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 0.25 Ám | 10 Áin | Gold | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 0.156 " | 3.96 mm | 138 | Card Extender |
