TJ03 Series

Catalog

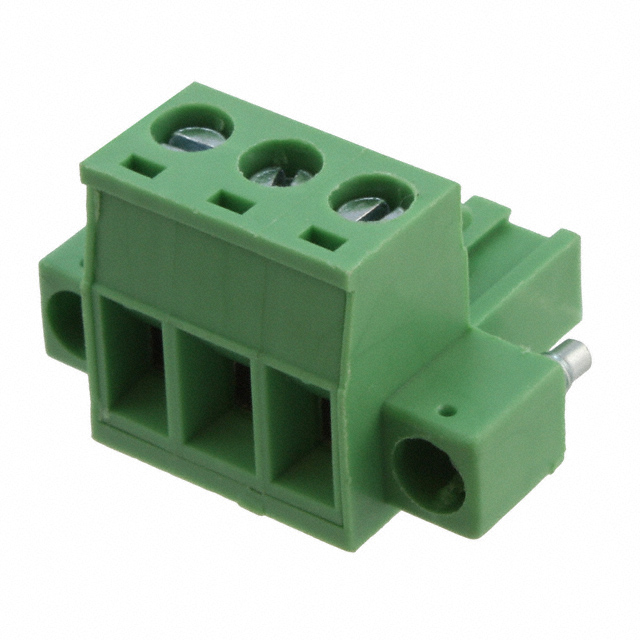

TERM BLOCK PLUG 3POS STR 5MM

Part	Features	Screw Size	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Current - UL	Material Flammability Rating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Mounting Type	Torque - Screw	Torque - Screw	Voltage - UL	Wire Strip Length [Min]	Wire Strip Length [Max]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Termination Style	Pitch [x]	Pitch [x]	Current - IEC	Positions Per Level	Contact Material	Voltage - IEC	Insulation Height	Insulation Height	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Amphenol Anytek TJ0371820000G	Mating Flange Retention Latches (Non-Wire Side)	M3	24 AWG	12 AWG	Plug Female Sockets	20 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	300 V	7 mm	8 mm	1	0.34 mm²	2.5 mm²	Gray	Screw	5 mm	0.197 in	20 A	3	Copper	300 V	0.594 in	15.09 mm
Amphenol Anytek TJ0371040000G	Retention Latches (Non-Wire Side) Strain Relief	M3	24 AWG	12 AWG	Plug Female Sockets	20 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	300 V	7 mm	8 mm	1	0.34 mm²	2.5 mm²	Black	Screw	5 mm	0.197 in	20 A	3	Copper	300 V	0.634 in	16.1 mm
Amphenol Anytek TJ0331020000G	Mating Flange	M2	28 AWG	16 AWG	Plug Female Sockets	10 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)			300 V	6 mm	7 mm	1			Black	Screw	3.81 mm	0.15 in	10.5 A	3	Phosphor Bronze	300 V	0.437 in	11.1 mm	1.5 mm²
Amphenol Anytek TJ0331840000G	Strain Relief	M2	28 AWG	16 AWG	Plug Female Sockets	10 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)			300 V	6 mm	7 mm	1			Gray	Screw	3.81 mm	0.15 in	10.5 A	3	Phosphor Bronze	300 V			1.5 mm²
Amphenol Anytek TJ0371020000G	Mating Flange Retention Latches (Non-Wire Side)	M3	24 AWG	12 AWG	Plug Female Sockets	20 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	300 V	7 mm	8 mm	1	0.34 mm²	2.5 mm²	Black	Screw	5 mm	0.197 in	20 A	3	Copper	300 V	0.594 in	15.09 mm
Amphenol Anytek TJ0301820000G	Mating Flange Retention Latches (Non-Wire Side)	M3	24 AWG	12 AWG	Plug Female Sockets	20 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	300 V	7 mm	8 mm	1			Gray	Screw	7.62 mm	0.3 in		3	Phosphor Bronze		0.594 in	15.09 mm
Amphenol Anytek TJ0351060000G		M3	24 AWG	12 AWG	Plug Female Sockets	20 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	300 V	7 mm	8 mm	1			Black	Screw	5.08 mm	0.2 in		3	Copper		0.594 in	15.09 mm
Amphenol Anytek TJ0371520000G	Mating Flange Retention Latches (Non-Wire Side)	M3	24 AWG	12 AWG	Plug Female Sockets	12 A	UL94 V-0	Thermoplastic Resin	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	300 V	7 mm	8 mm	1			Green	Screw - Rising Cage Clamp	5 mm	0.197 in		3	Copper Alloy		0.594 in	15.09 mm		1 mm˛	2.5 mm˛
Amphenol Anytek TJ0351820000G	Mating Flange Retention Latches (Non-Wire Side)	M3	24 AWG	12 AWG	Plug Female Sockets	20 A	UL94 V-0	Thermoplastic	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	300 V	7 mm	8 mm	1	0.34 mm²	2.5 mm²	Gray	Screw	5.08 mm	0.2 in	20 A	3	Copper	300 V	0.594 in	15.09 mm
Amphenol Anytek TJ0311630000G		M2	26 AWG	16 AWG	Plug Female Sockets	10 A	UL94 V-0	Thermoplastic Resin	-40 °C	115 °C	Tin	Free Hanging (In-Line)	0.23 Nm	2 Lb-In	300 V	6 mm	7 mm	1	0.5 mm²	1.5 mm²	Blue	Screw - Rising Cage Clamp	3.5 mm	0.138 in		3	Copper Alloy		0.437 in	11.1 mm
