745-032 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 32POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Read Out	Pitch	Pitch	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions/Bay/Row	Gender	Card Type	Mounting Type	Termination	Termination Rows	Number of Rows

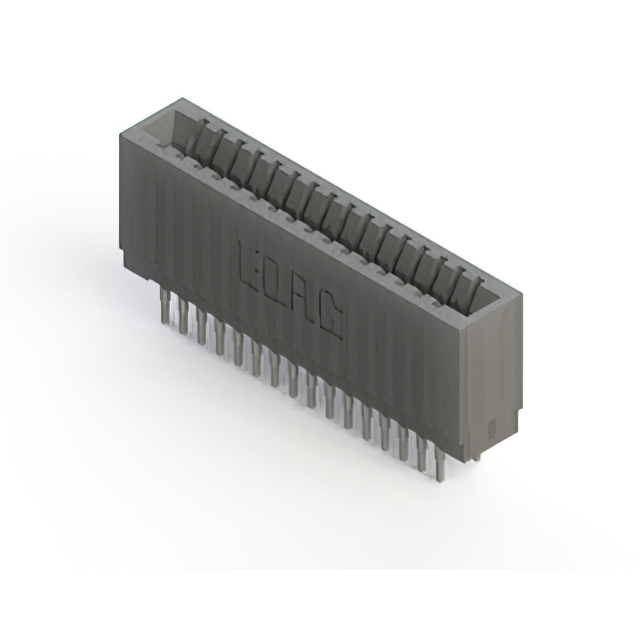

EDAC Inc. 745-032-522-201	Polyester Thermoplastic	2	Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit

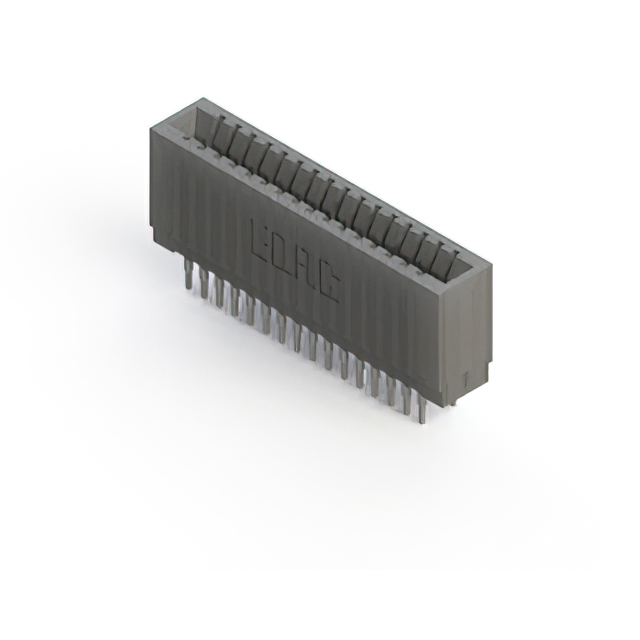

EDAC Inc. 745-032-541-201	Polyester Thermoplastic	2	Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit Wire Wrap

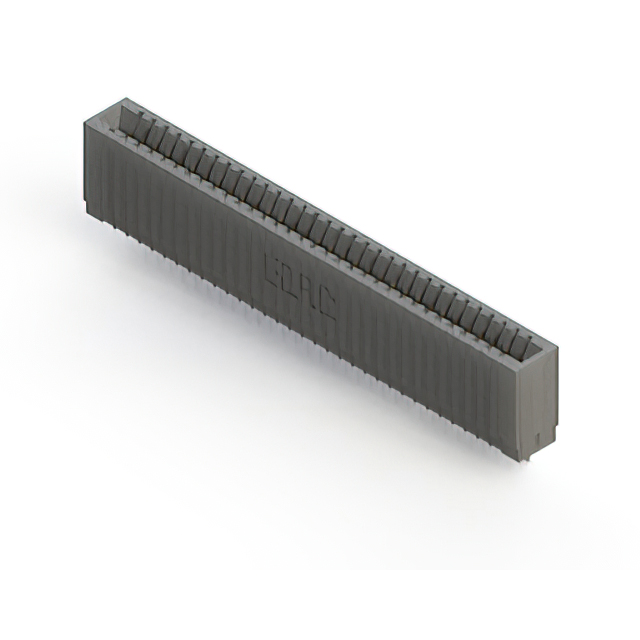

EDAC Inc. 745-032-545-101	Polyester Thermoplastic		Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm		Single	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	32	Female	Non Specified - Single Edge	Through Hole	Press-Fit	1	1
EDAC Inc. 745-032-545-201	Polyester Thermoplastic	2	Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit
EDAC Inc. 745-032-520-206	Polyester Thermoplastic	2	Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit

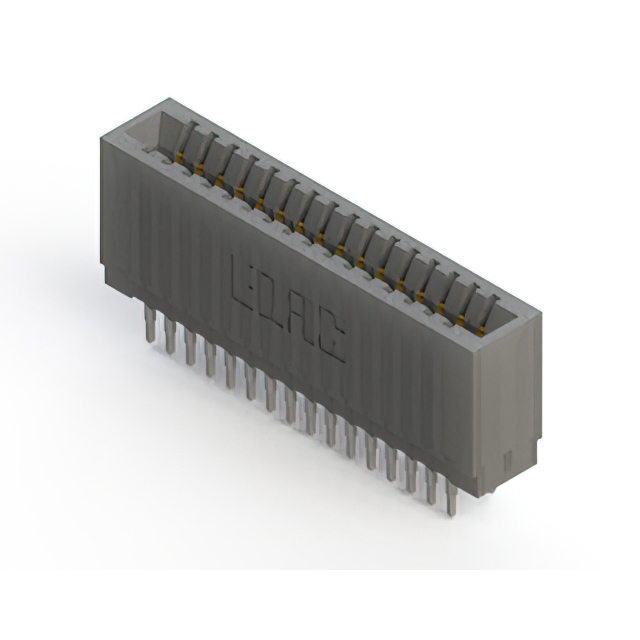

EDAC Inc. 745-032-560-201	Polyester Thermoplastic	2	Black	Cantilever Make Before Break	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit

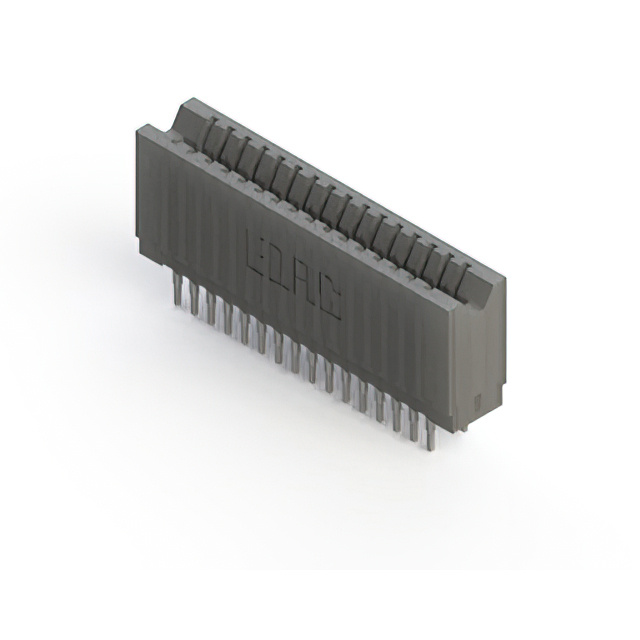

EDAC Inc. 745-032-540-206	Polyester Thermoplastic	2	Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit Wire Wrap

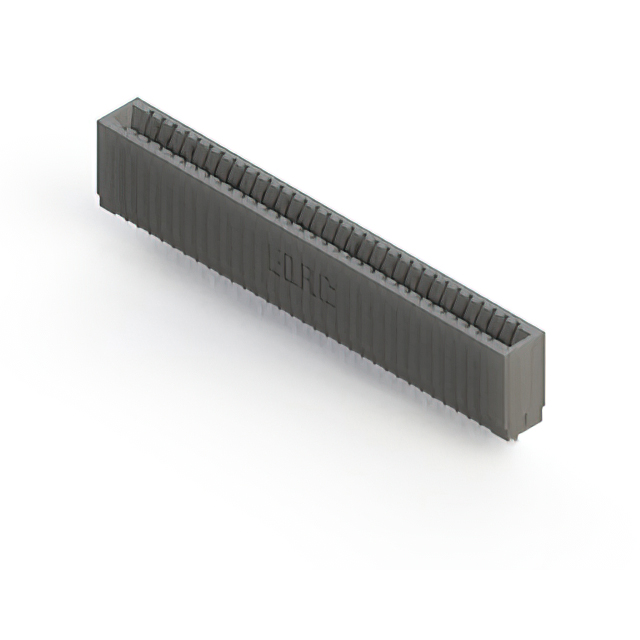

EDAC Inc. 745-032-541-101	Polyester Thermoplastic		Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm		Single	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	32	Female	Non Specified - Single Edge	Through Hole	Press-Fit Wire Wrap	1	1

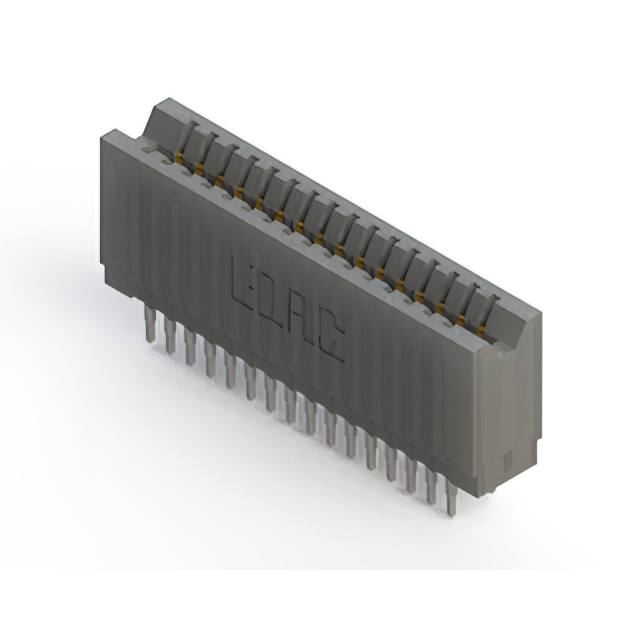

EDAC Inc. 745-032-560-206	Polyester Thermoplastic	2	Black	Cantilever Make Before Break	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit
EDAC Inc. 745-032-525-206	Polyester Thermoplastic	2	Black	Cantilever	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Dual	0.1 "	2.54 mm	Gold	30 Áin	0.76 Ám	Copper Alloy	16	Female	Non Specified - Dual Edge	Through Hole	Press-Fit
