NSR0230P2 Series

200 mA, 30 V, Schottky Barrier Diode, Low VF

Catalog

200 mA, 30 V, Schottky Barrier Diode, Low VF

Part	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Speed	Speed	Current - Average Rectified (Io)	Grade	Qualification
ON Semiconductor NSR0230M2T5G	100 µA	Surface Mount	500 mV	SOD-723	30 V	Schottky	SOD-723	-55 °C	125 °C	Any Speed	200 mA	200 mA
ON Semiconductor NSVR0230M2T5G	100 µA	Surface Mount	500 mV	SOD-723	30 V	Schottky	SOD-723	-55 °C	125 °C	Any Speed	200 mA	200 mA	Automotive	AEC-Q101
ON Semiconductor NSR0230P2T5G	10 µA	Surface Mount	500 mV	SOD-923	30 V	Schottky	SOD-923	-55 °C	125 °C	Any Speed	200 mA	200 mA

Catalog

200 mA, 30 V, Schottky Barrier Diode, Low VF

Key Features

• Extremely Fast Switching Speed

• Extremely Low Forward Voltage 325 mV (max) @ IF= 10 mA

• Low Reverse Current

• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC Qualified and PPAP Capable

• These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Description

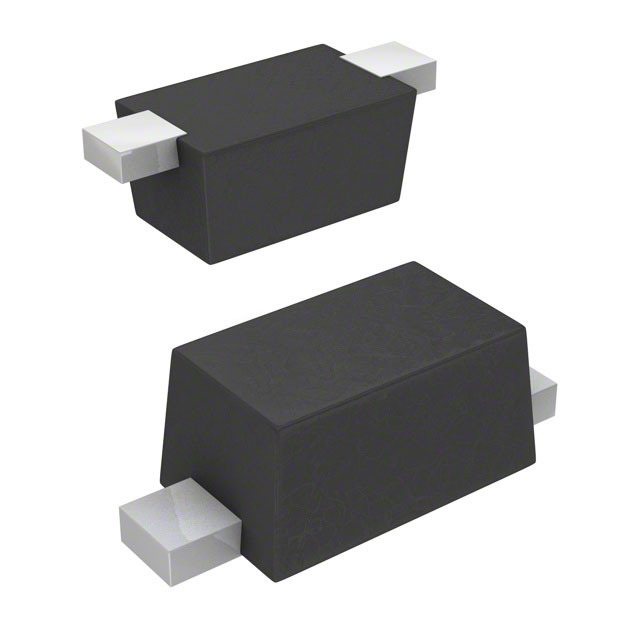

These SOD-723 Schottky diodes are designed for high-speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount SOD-723 package is excellent for hand-held and portable applications where space is limited.
