KB CSLNM1.14 Series

Catalog

LED BLUE SMD

Part	Wavelength	Wavelength [Max]	Wavelength [Min]	Supplier Device Package	Current - Test	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Temperature - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Package / Case	Viewing Angle	Mounting Type	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature	Color	Lens Style	Height (Max) [Max] [z]	Wavelength - Peak	Configuration	Lens Size	Wavelength - Dominant [custom]

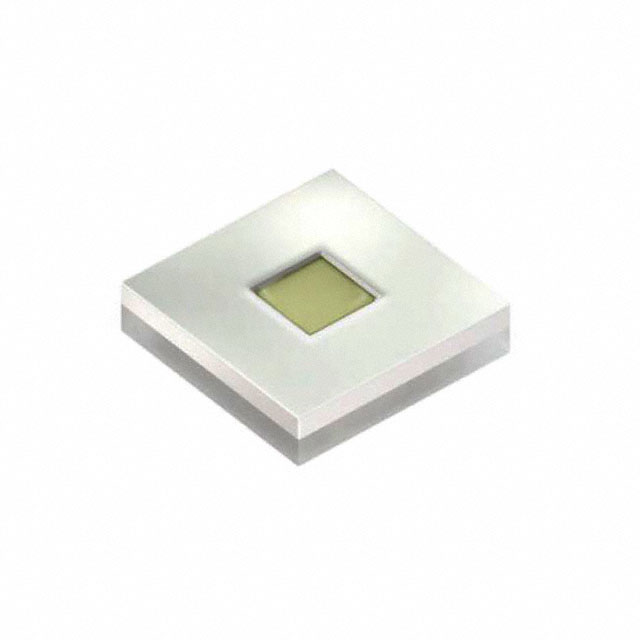

ams-OSRAM USA INC. KB CSLNM1.14-4V7A-46-0-S	459 nm	465 nm	453 nm	SMD	1 A	3 A	3 mm	0.118 in 3 mm	3 mm	0.118 " 3 mm	3 V	25 °C	0.033 in	0.84 mm	3030 Metric	1212	120 °	Surface Mount	1000 mW	1590 mW	1295 mW	Blue	Square with Flat Top	0.87 mm	450 nm	Standard	3 mm	455 nm
