P2RSA Series
Manufacturer: RF Industries
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SMA FEMALE-N FEMALE; 18 GHZ
| Part | Style | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material | Center Contact Material | Convert From (Adapter End) | Adapter Type | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Center Gender | Mounting Type | Impedance | Body Material | Frequency - Max | Center Contact Plating | Insertion Loss | Adapter Series | Conversion Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

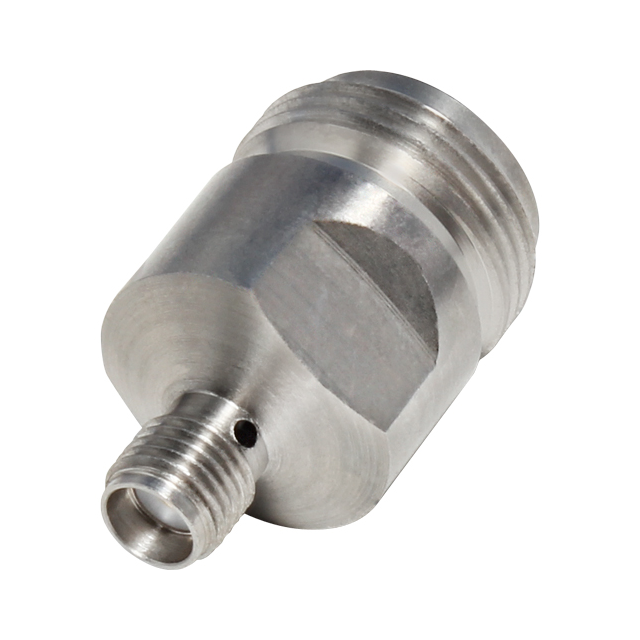

 RF Industries | Straight | 125 °C | -65 °C | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Female Socket SMA Jack | Jack to Jack | N Jack | Female Socket | Female | Free Hanging (In-Line) | 50 Ohm | Stainless Steel | 18 GHz | Gold | 0.2 dB | SMA to N | Between Series | Threaded |

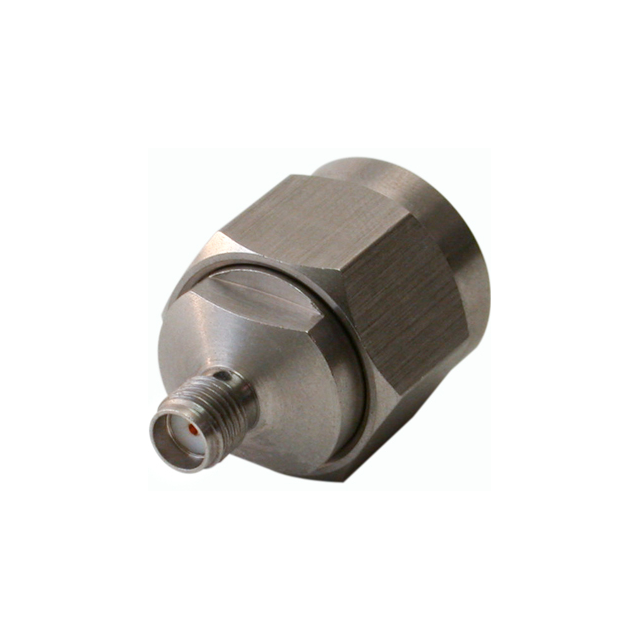

 RF Industries | Straight | 155 °C | -65 °C | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Female Socket SMA Jack | Plug to Jack | N Plug | Male Pin | Female Male | Free Hanging (In-Line) | 50 Ohm | Stainless Steel | 18 GHz | Gold | 0.2 dB | SMA to N | Between Series | Threaded |

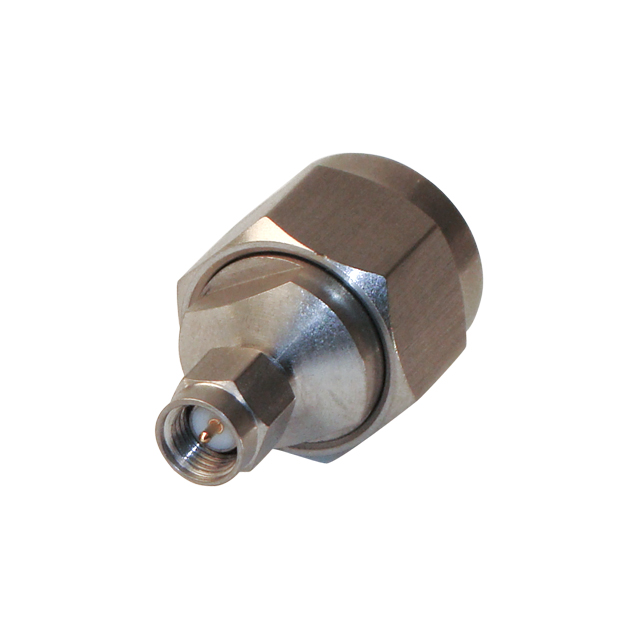

 RF Industries | Straight | 155 °C | -65 °C | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Male Pin SMA Plug | Plug to Plug | N Plug | Male Pin | Male | Free Hanging (In-Line) | 50 Ohm | Stainless Steel | 18 GHz | Gold | 0.2 dB | SMA to N | Between Series | Threaded |
